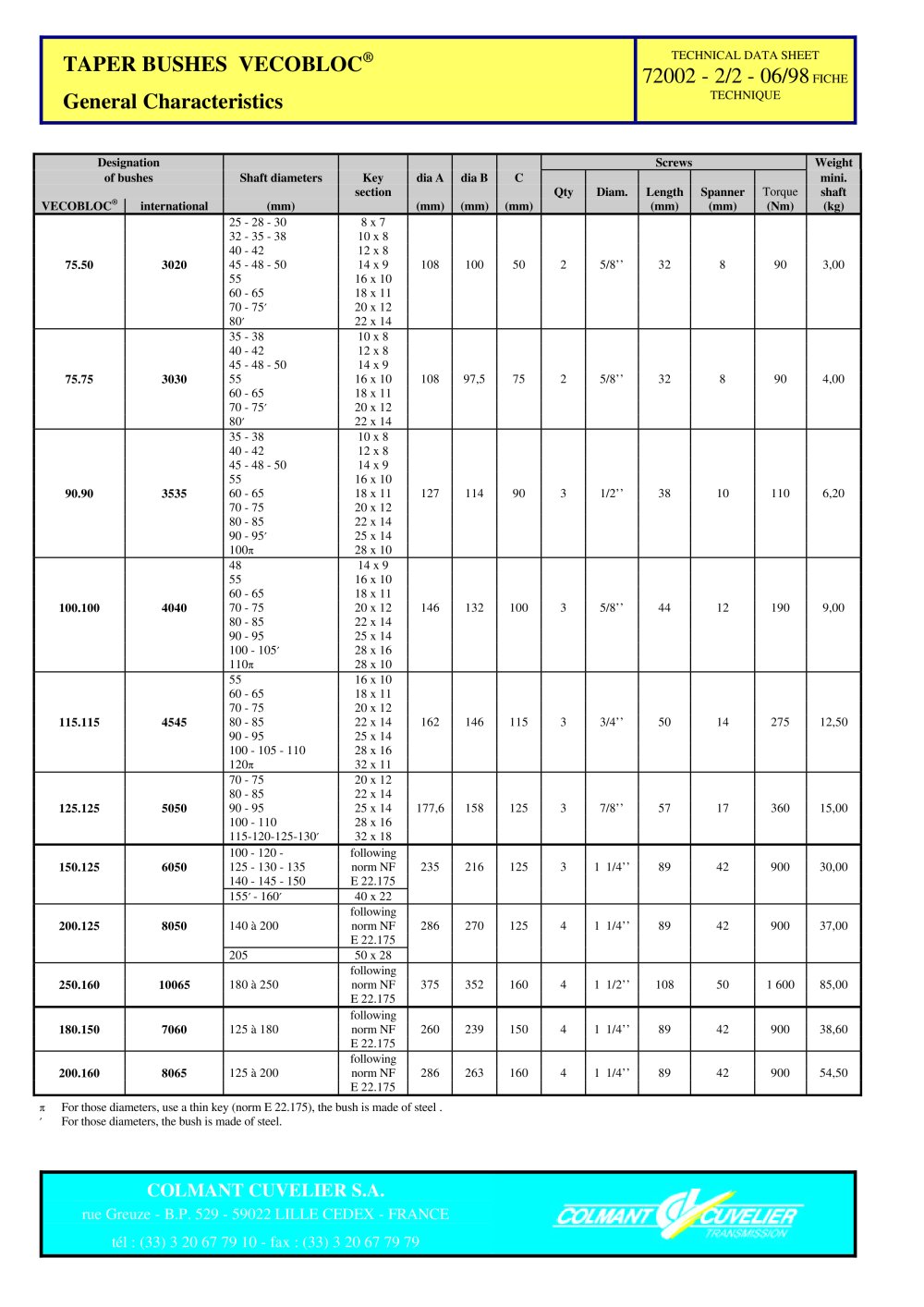

TAPER BUSHES VECOBLOC® General Characteristics
TECHNICAL DATA SHEET
72002 - 2/2 - 06/98 fiche
TECHNIQUE
Designation
Screws
Weight
of bushes
Shaft diameters
Key
dia A
dia B
C
mini.
section
Qty
Diam.
Length
Spanner
Torque
shaft
VECOBLOC®
international
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
(Nm)
(kg)
75.50
3020
25 - 28 - 30 32 - 35 - 38 40 - 42 45 - 48 - 50 55
60 - 65 70 - 75' 80'
8 x 7 10 x 8 12 x 8 14 x 9 16 x 10 18 x 11 20 x 12 22 x 14
108
100
50
2
5/8''
32
8
90
3,00
35 - 38
10 x 8
40 - 42
12 x 8
45 - 48 - 50
14 x 9
75.75
3030
55
16 x 10
108
97,5
75
2
5/8''
32
8
90
4,00
60 - 65
18 x 11
70 - 75'
20 x 12
80'
22 x 14
35 - 38
10 x 8
40 - 42
12 x 8
45 - 48 - 50
14 x 9
55
16 x 10
90.90
3535
60 - 65
18 x 11
127
114
90
3
1/2''
38
10
110
6,20
70 - 75
20 x 12
80 - 85
22 x 14
90 - 95'
25 x 14
100n
28 x 10
48
14 x 9
55
16 x 10
60 - 65
18 x 11
100.100
4040
70 - 75
20 x 12
146
132
100
3
5/8''
44
12
190
9,00
80 - 85
22 x 14
90 - 95
25 x 14
100 - 105'
28 x 16
11071
28 x 10
55
16 x 10
60 - 65
18 x 11
70 - 75
20 x 12
115.115
4545
80 - 85
22 x 14
162
146
115
3
3/4''
50
14
275
12,50
90 - 95
25 x 14
100 - 105 - 110
28 x 16
120n
32 x 11
70 - 75
20 x 12
80 - 85
22 x 14
125.125
5050
90 - 95
25 x 14
177,6
158
125
3
7/8''
57
17
360
15,00
100 - 110
28 x 16
115-120-125-130'
32 x 18
100 - 120 -
following
150.125
6050
125 - 130 - 135
norm NF
235
216
125
3
1 1/4''
89
42
900
30,00
140 - 145 - 150
E 22.175
155' - 160'
40 x 22
200.125
8050
140 à 200
following norm NF E 22.175
286
270
125
4
1 1/4''
89
42
900
37,00
205
50 x 28
250.160
10065
180 à 250
following norm NF E 22.175
375
352
160
4
1 1/2''
108
50
1 600
85,00
180.150
7060
125 à 180
following norm NF E 22.175
260
239
150
4
1 1/4''
89
42
900
38,60
200.160
8065
125 à 200
following norm NF E 22.175
286
263
160
4
1 1/4''
89
42
900
54,50
For those diameters, use a thin key (norm E 22.175), the bush is made of steel . For those diameters, the bush is made of steel.
