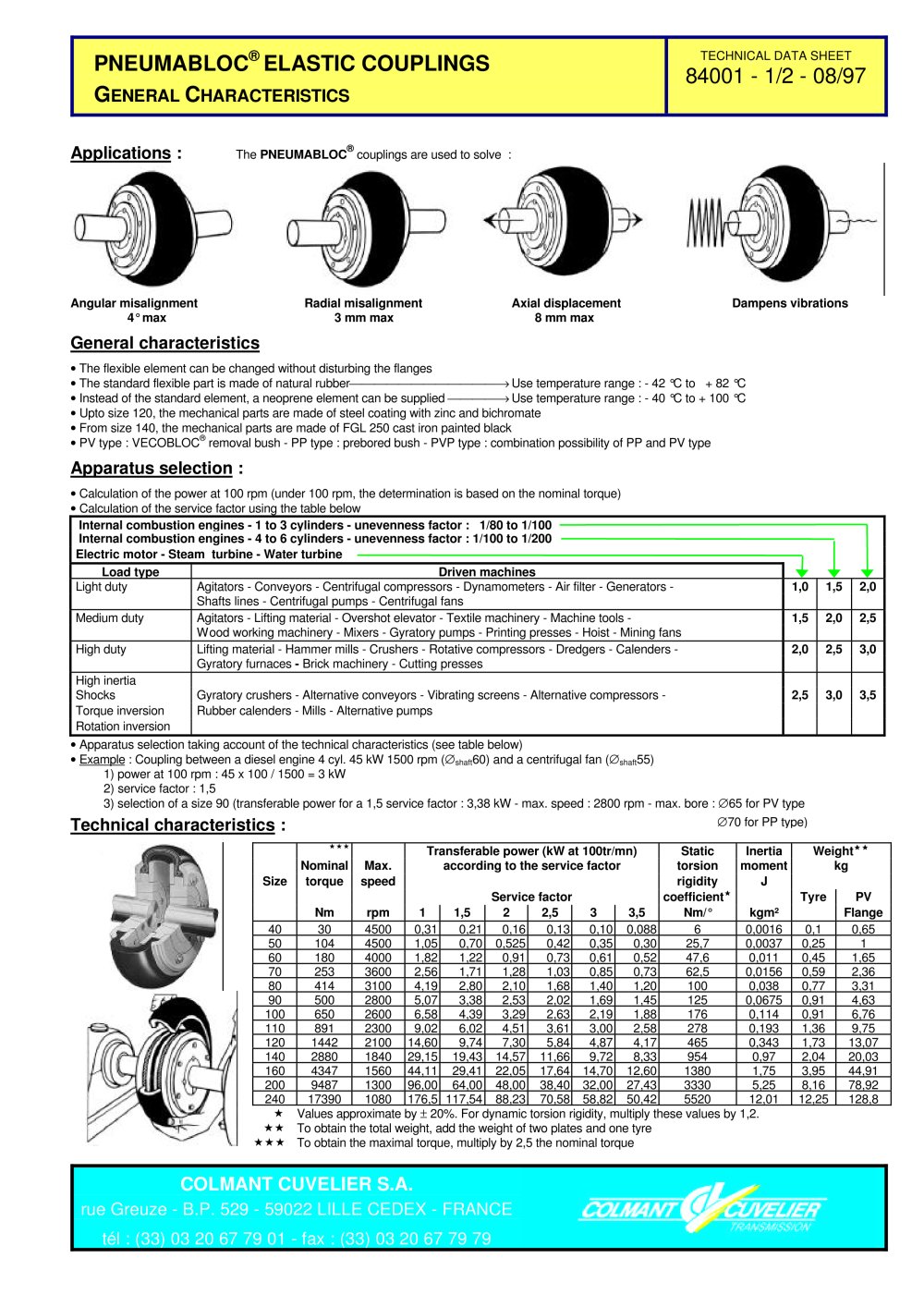

	PNEUMABLOC® ELASTIC COUPLINGS	TECHNICAL DATA SHEET 84001 - 1/2 - 08/97
	General Characteristics	U4UUI - 1/2 - 00/9 1

Applications :

The PNEUMABLOC® couplings are used to solve :

Angular misalignment 4° max

Radial misalignment 3 mm max

Axial displacement 8 mm max

Dampens vibrations

General characteristics

• The flexible élément can be changed without disturbing the flanges

• The standard flexible part is made of natural rubber-» Use temperature range : - 42 °C to + 82 °C

• Instead of the standard element, a neoprene element can be supplied-» Use temperature range : - 40 °C to + 100 °C

• Upto size 120, the mechanical parts are made of steel coating with zinc and bichromate

• From size 140, the mechanical parts are made of FGL 250 cast iron painted black

• PV type : VECOBLOC® removal bush - PP type : prebored bush - PVP type : combination possibility of PP and PV type

Apparatus selection :

• Calculation of the power at 100 rpm (under 100 rpm, the determination is based on the nominal torque)

• Calculation of the service factor using the table below_

Internal combustion engines - 1 to 3 cylinders - unevenness factor : 1/80 to 1/100 Internal combustion engines - 4 to 6 cylinders - unevenness factor : 1/100 to 1/200 Electric motor - Steam turbine - Water turbine

Load type

Driven machines

Light duty

Agitators - Conveyors - Centrifugal compressors - Dynamometers - Air filter - Generators -Shafts lines - Centrifugal pumps - Centrifugal fans

1,0

1,5

2,0

Medium duty

Agitators - Lifting material - Overshot elevator - Textile machinery - Machine tools -

Wood working machinery - Mixers - Gyratory pumps - Printing presses - Hoist - Mining fans

1,5

2,0

2,5

High duty

Lifting material - Hammer mills - Crushers - Rotative compressors - Dredgers - Calenders -Gyratory furnaces - Brick machinery - Cutting presses

2,0

2,5

3,0

High inertia Shocks

Torque inversion Rotation inversion

Gyratory crushers - Alternative conveyors - Vibrating screens - Alternative compressors -Rubber calenders - Mills - Alternative pumps

2,5

3,0

3,5

• Apparatus selection taking account of the technical characteristics (see table below)

• Example : Coupling between a diesel engine 4 cyl. 45 kW 1500 rpm (0_shaft60) and a centrifugal fan (0_shaft55)

1) power at 100 rpm : 45 x 100 / 1500 = 3 kW

2) service factor : 1,5

3) selection of a size 90 (transferable power for a 1,5 service factor : 3,38 kW - max. speed : 2800 rpm - max. bore : 065 for PV type

Technical characteristics : ⁰⁷⁰ ^for ^PP ^type)


Size	* Nominal torque** Nm	Max. speed rpm	Transferable power (kW at 100tr/mn) according to the service factor Service factor 1 1,5 2 2,5 3 3,5	*Static torsion rigidity coefficient Nm/°**	Inertia moment J kgm²	Wei Tyre	ght kg PV Flange**
40	30	4500	0,31 0,21 0,16 0,13 0,10 0,088	6	0,0016	0,1	0,65
50	104	4500	1,05 0,70 0,525 0,42 0,35 0,30	25,7	0,0037	0,25	1
60	180	4000	1,82 1,22 0,91 0,73 0,61 0,52	47,6	0,011	0,45	1,65
70	253	3600	2,56 1,71 1,28 1,03 0,85 0,73	62,5	0,0156	0,59	2,36
80	414	3100	4,19 2,80 2,10 1,68 1,40 1,20	100	0,038	0,77	3,31
90	500	2800	5,07 3,38 2,53 2,02 1,69 1,45	125	0,0675	0,91	4,63
100	650	2600	6,58 4,39 3,29 2,63 2,19 1,88	176	0,114	0,91	6,76
110	891	2300	9,02 6,02 4,51 3,61 3,00 2,58	278	0,193	1,36	9,75
120	1442	2100	14,60 9,74 7,30 5,84 4,87 4,17	465	0,343	1,73	13,07
140	2880	1840	29,15 19,43 14,57 11,66 9,72 8,33	954	0,97	2,04	20,03
160	4347	1560	44,11 29,41 22,05 17,64 14,70 12,60	1380	1,75	3,95	44,91
200	9487	1300	96,00 64,00 48,00 38,40 32,00 27,43	3330	5,25	8,16	78,92
240	17390	1080	176,5 117,54 88,23 70,58 58,82 50,42	5520	12,01	12,25	128,8

* Values approximate by ± 20%. For dynamic torsion rigidity, multiply these values by 1,2. ** To obtain the total weight, add the weight of two plates and one tyre *** To obtain the maximal torque, multiply by 2,5 the nominal torque

ie Greuze - B.P. 529 - 59022 LILLE CEDEX - FRANC tél : (33) 03 20 67 79 01 - fax : (33) 03 20 67 79 79
