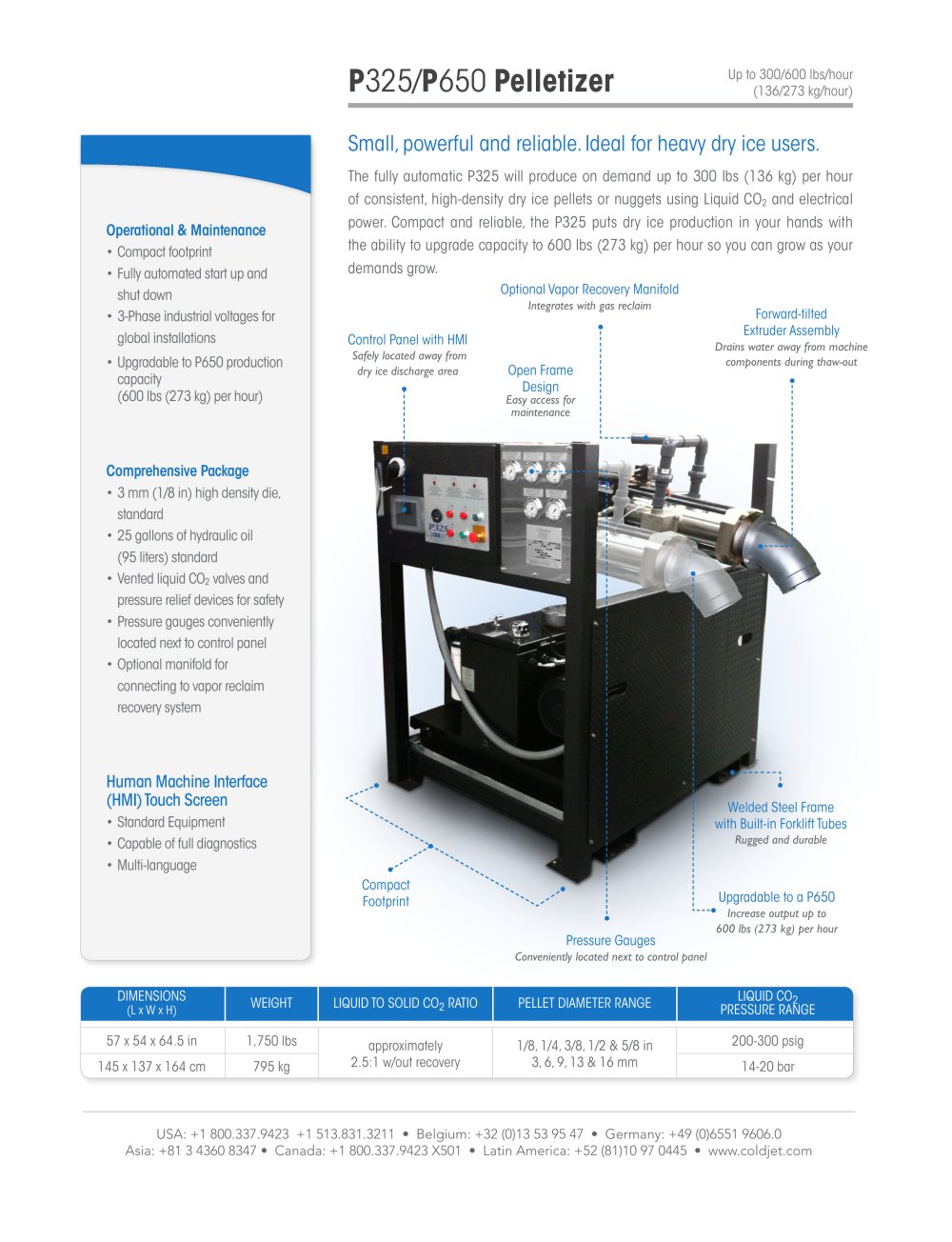

USA: +1 800.337.9423 +1 513.831.3211 • Belgium: +32 (0)13 53 95 47 • Germany: +49 (0)6551 9606.0 Middle East: +962-6-5662481 • Canada: +1 800.337.9423 X501 • Latin America: +52 (81)10 97 0445 www.coldjet.com P325 Pelletizer 24/7 dry ice production in a small, durable design Small enough for trailer portability. Powerful enough for all your production needs. The fully automated P325 will produce on demand up to 300 lbs (136 kg) per hour of consistent, high-density dry ice pellets or nuggets using liquid CO2 and electrical power. Compact and reliable, the P325 puts dry ice production in your hands with the lowest cost of ownership available in the industry today. Welded Steel Frame with Built-in Forklift Tubes Rugged and durable Open Frame Design Easy access for maintenance Forward-tilted Extruder Assembly Drains water away from machine components during thaw-out Control Panel with HMI Safely located away from dry ice discharge area Minimal Footprint 19 ft2 (2 m2) Optional Vapor Recovery Manifold Integrates with gas reclaim HMI DIAGNOSTIC SCREEN • STANDARD EQUIPMENT • ONE BUTTON START-UP & SHUT DOWN • CAPABLE OF FULL DIAGNOSTICS • MULTI-LANGUAGE BENEFITS OF THE P325 • COMPACT FOOTPRINT • 24/7 PRODUCTION CAPABILITY • FULLY AUTOMATED START UP AND SHUT DOWN • ANNUAL EQUIPMENT INSPECTION COURTESY CALL • PRESSURE GAUGES CONVENIENTLY LOCATED NEXT TO CONTROL PANEL • OPTIONAL MANIFOLD FOR CONNECTION TO VAPOR RECOVERY SYSTEM • 3MM (1/8 IN) PRECISION DIE, STANDARD • 3-PHASE INDUSTRIAL VOLTAGES FOR GLOBAL INSTALLATIONS • 20 GALLONS OF HYDRAULIC OIL (76 LITERS) STANDARD • VENTED LIQUID CO2 VALVES AND PRESSURE RELIEF DEVICES FOR SAFETY DIMENSIONS (w/out chutes) WEIGHT LIQUID TO SOLID CO2 RATIO PELLET DIAMETER RANGE LIQUID CO2 PRESSURE RANGE 49 x 56 x 65 in 1,600 lbs 2.5:1 w/out recovery 1.2:1 w/recovery 1/8, 1/4, 3/8, 1/2 & 5/8 in 3, 6, 9, 13 & 16 mm 200-320 psig 124 x 142 x 165 cm 726 kg 14-22 bar Pressure Gauges Conveniently located next to control panel
