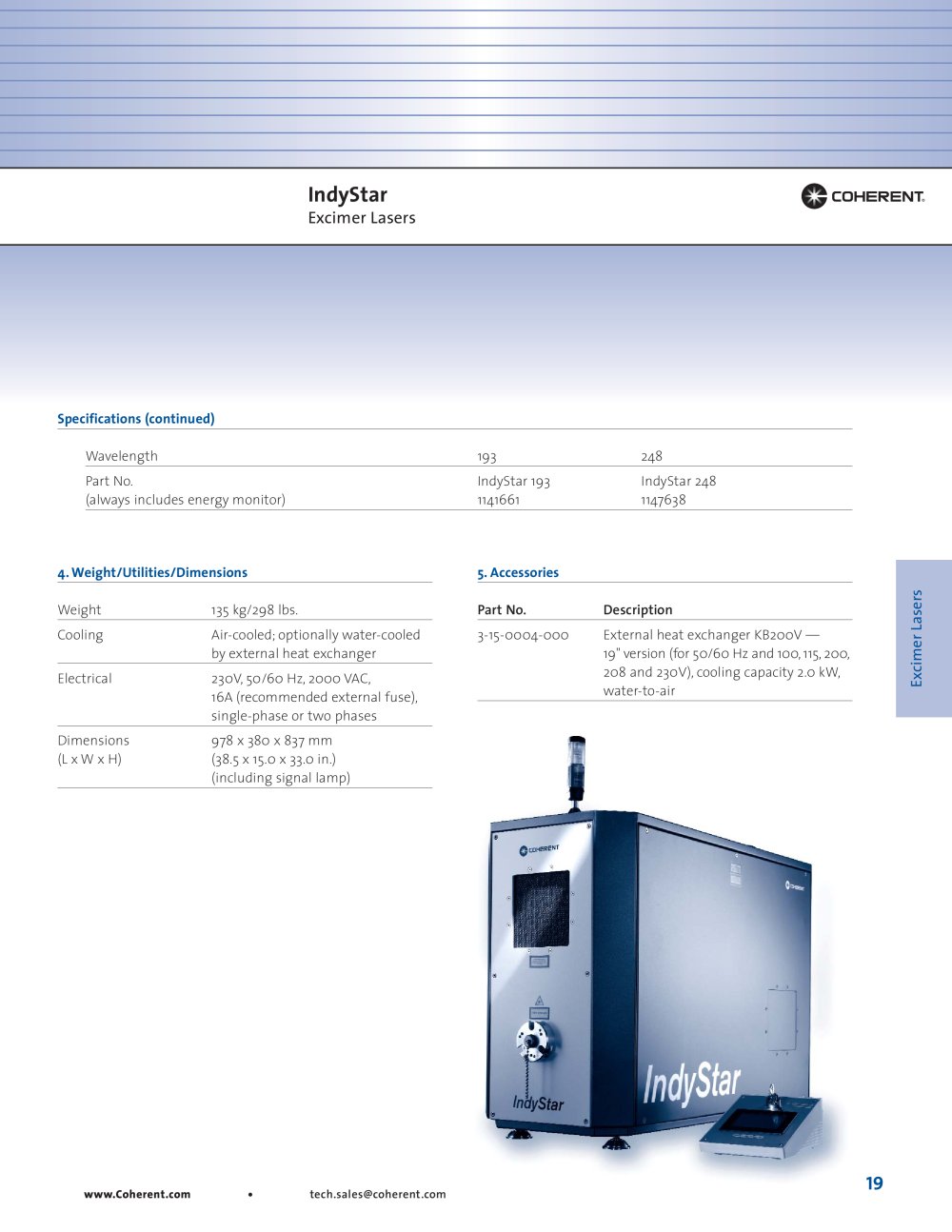

^ COHERENT.
IndyStar
Excimer Lasers
Specifications (continued)
Wavelength 193 248
Part No. IndyStar 193 IndyStar 248
(always includes energy monitor) 1141661 1147638
4. Weight/Utilities/Dimensic
5. Accessories
Weight
135 kg/298 lbs.
Cooling
Air-cooled; optionally water-cooled
by external heat exchanger
Electrical
230V, 50/60 Hz, 2000 VAC,
16A (recommended external fuse),
single-phase or two phases
Dimensions
978 x 380 x 837 mm
(L x W x H)
(38.5 x 15.0 x 33.0 in.)
(including signal lamp)
Part No.
Description
3-15-0004-000
External heat exchanger KB200V —
19" version (for 50/60 Hz and 100,115,200,
208 and 230V),cooling capacity 2.0 kW,
water-to-air
in
(U in
TO
_I
E
'u X
LLI
19
www.Coherent.com
