BUTTERFLY VALVE -- MODEL MP

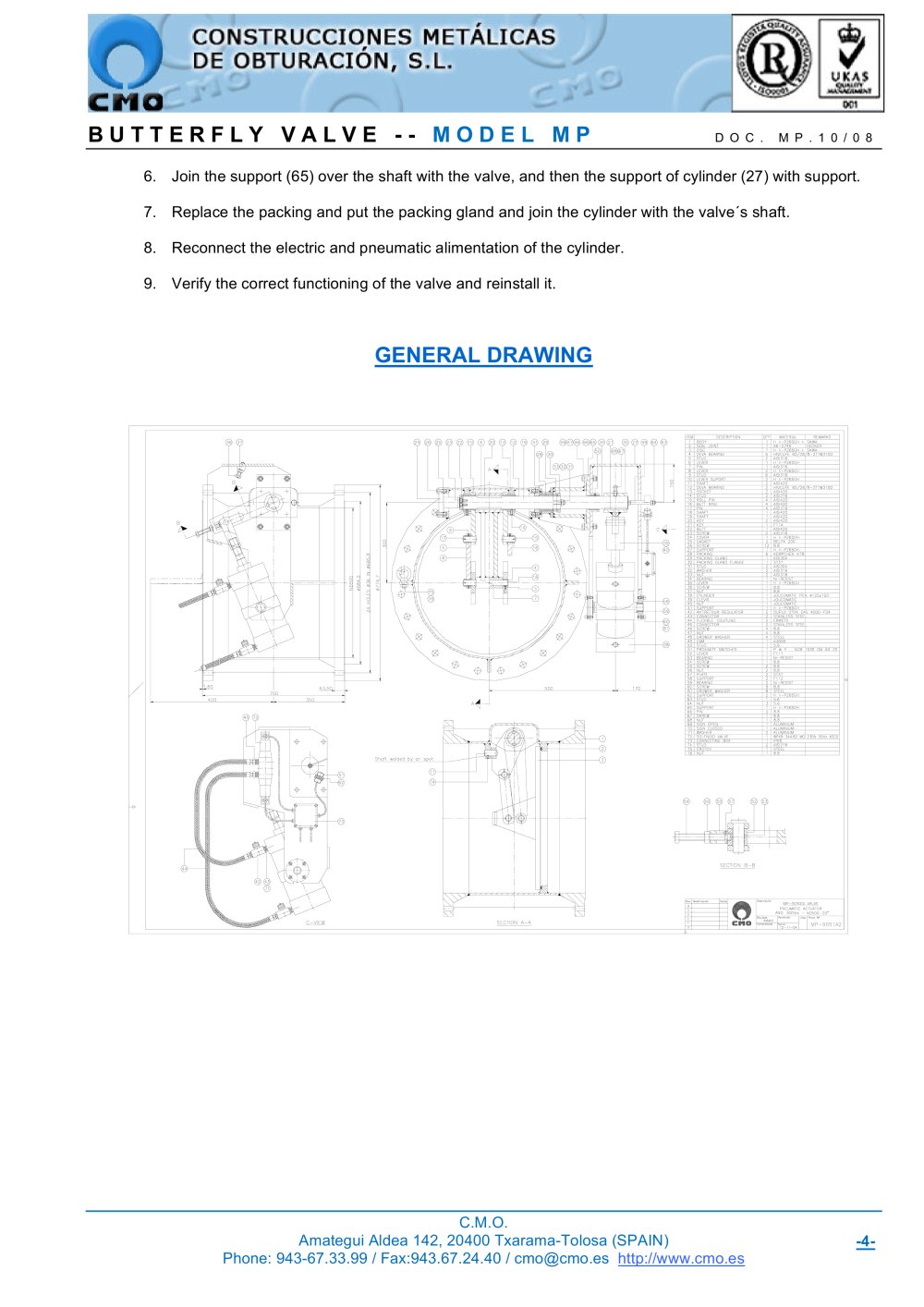

DOC. MP.10/08 GENERAL DRAWING
C.M.O. 6. Join the support (65) over the shaft with the valve, and then the support of cylinder (27) with support. 7. Replace the packing and put the packing gland and join the cylinder with the valve´s shaft. 8. Reconnect the electric and pneumatic alimentation of the cylinder. 9. Verify the correct functioning of the valve and reinstall it. Amategui Aldea 142, 20400 Txarama-Tolosa (SPAIN) Phone: 943-67.33.99 / Fax:943.67.24.40 / cmo@cmo.es http://www.cmo.es -4-
