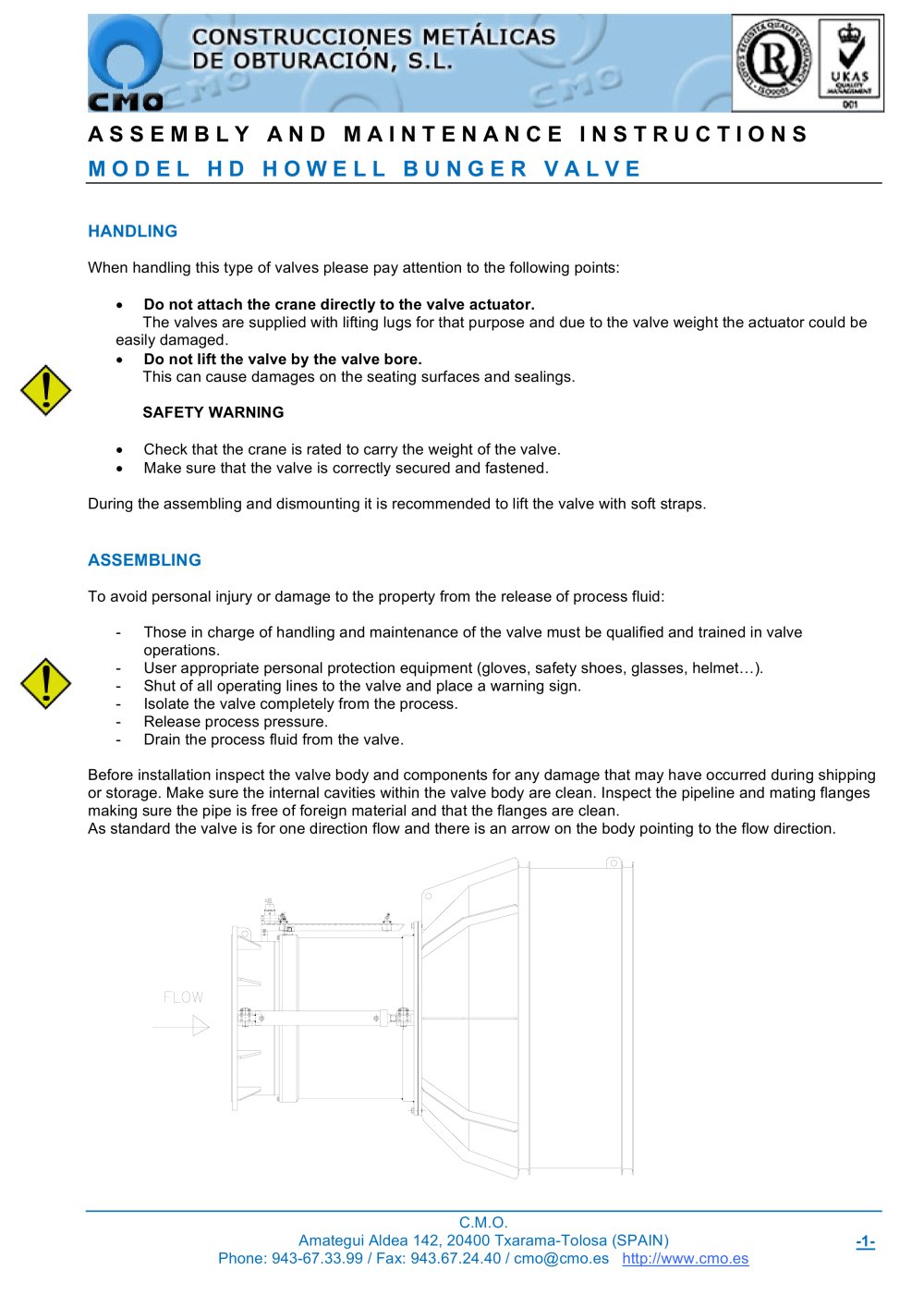

ASSEMBLY AND MAINTENANCE INSTRUCTIONS MODEL HD HOWELL BUNGER VALVE

HANDLING

When handling this type of valves please pay attention to the following points: Do not attach the crane directly to the valve actuator. The valves are supplied with lifting lugs for that purpose and due to the valve weight the actuator could be easily damaged. Do not lift the valve by the valve bore. This can cause damages on the seating surfaces and sealings. SAFETY WARNING Check that the crane is rated to carry the weight of the valve. Make sure that the valve is correctly secured and fastened. During the assembling and dismounting it is recommended to lift the valve with soft straps.

ASSEMBLING

To avoid personal injury or damage to the property from the release of process fluid: - Those in charge of handling and maintenance of the valve must be qualified and trained in valve operations. - User appropriate personal protection equipment (gloves, safety shoes, glasses, helmet…). - Shut of all operating lines to the valve and place a warning sign. - Isolate the valve completely from the process. - Release process pressure. - Drain the process fluid from the valve. Before installation inspect the valve body and components for any damage that may have occurred during shipping or storage. Make sure the internal cavities within the valve body are clean. Inspect the pipeline and mating flanges making sure the pipe is free of foreign material and that the flanges are clean. As standard the valve is for one direction flow and there is an arrow on the body pointing to the flow direction. C.M.O. Amategui Aldea 142, 20400 Txarama-Tolosa (SPAIN) Phone: 943-67.33.99 / Fax: 943.67.24.40 / cmo@cmo.es http://www.cmo.es -1-
