GU 36

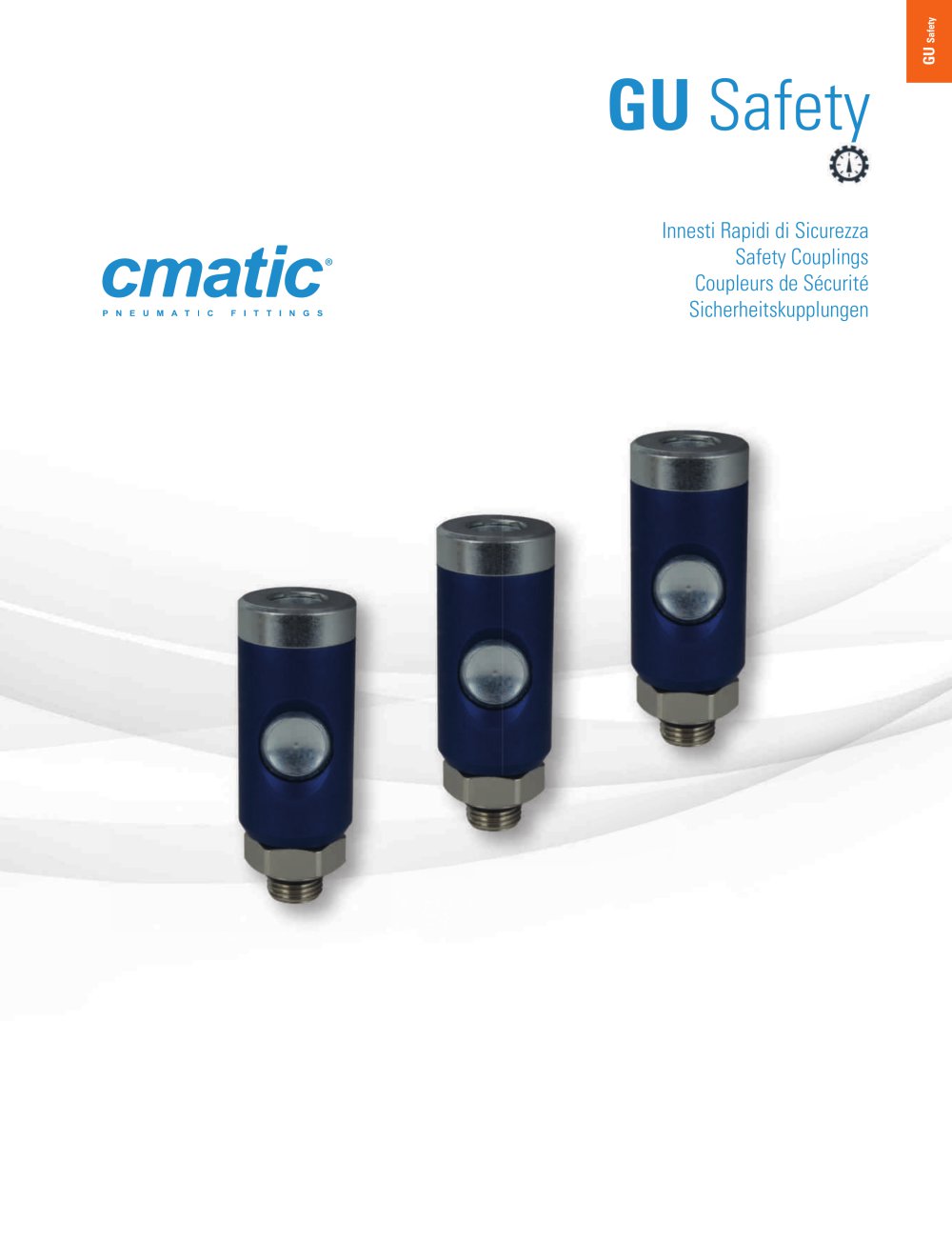

Automatic cou p ler with a safety device German Profile This coupler complies with the ISO Norms 4414 specifications Working pressure: Max 30 bar Flow capacity: 1710 Nl/min (at 6 bar with connected insert) Construction materials: • Body and screw: brass nickel plated UNI EN 12164 CW614; • Command sleeve: Anodized Aluminum 2011; • Orings: NBR; • Balls: AISI 420; • Springs: AISI 302.

CONNECTION RELEASE

Ste p 1. Insert male p art into the cou p ler. Ste Step 2 : To release the male insert, push backwards the release surface. p 1: Slide the command sleeve backwards to vent the air. The male insert is still connected. Step 2. Flow is not allowed . Step 3: To give air to the circuit, slide the command sleeveforward

Releases can not occur, not even accidentally, if the release procedure is not followed as described above.

Ti p o D1 D2 L1 L2 CH GU360014 1/4 26 8 67 20 GU360038 3/8 26 9 68 20
La società C.matic s.r.l. si riserva la facoltà di apportare in qualsiasi momento tutte le modifiche che ritiene indispensabili al fine di migliorare la sua produzione GU360012 1/2 26 10 69 24 C.matic s.r.l – Via G.Donizetti, 76 – 20048 Carate Brianza (MI) – Tel 0362 805246 – Fax 0362 805262 www.cmatic.it - e-mail: cmatic@cmatic.it
