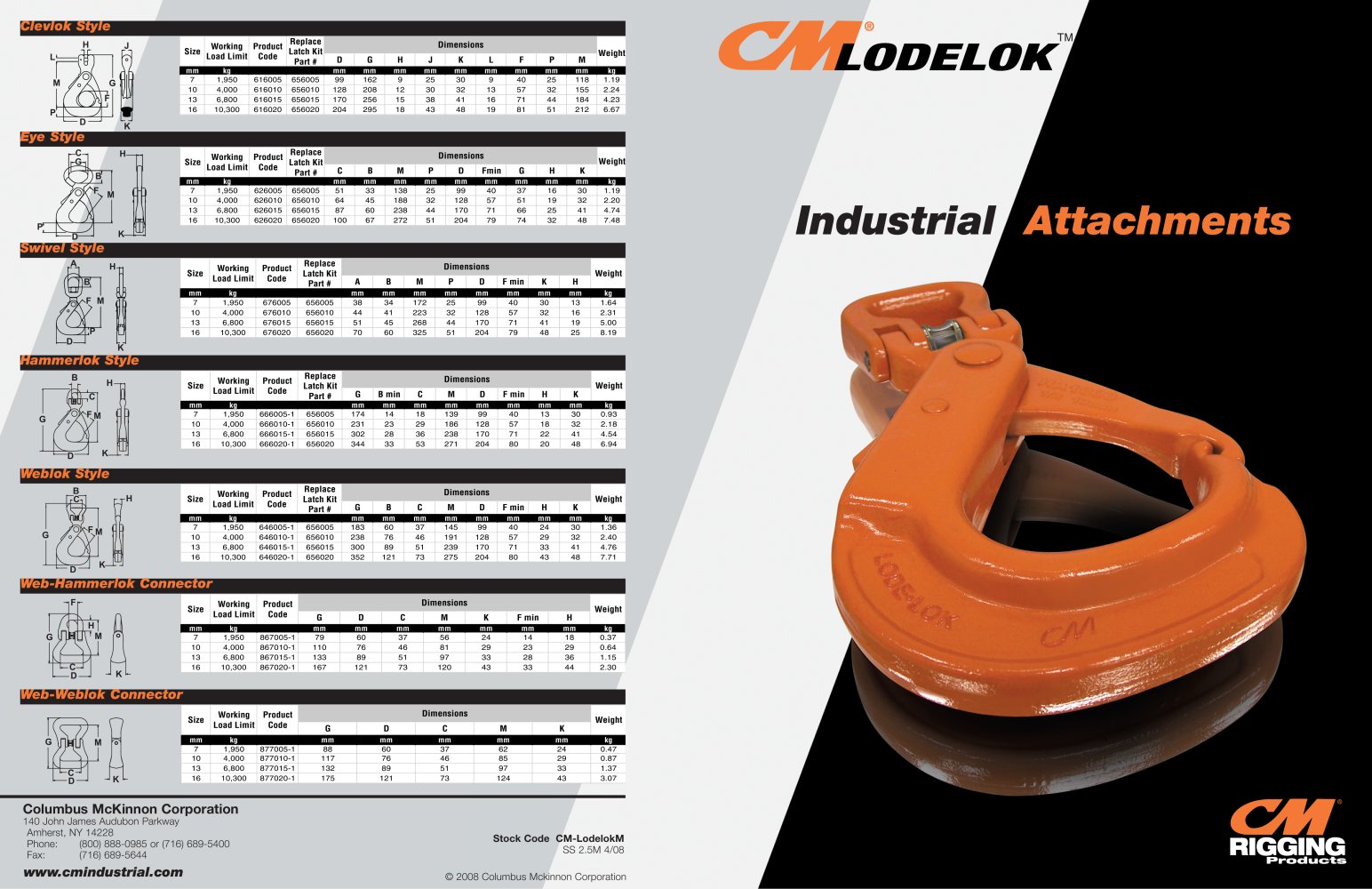

Lodelok Brochure-Metric - CM Industrial Products

P. 01

Lodelok Brochure-Metric - CM Industrial Products

P. 02

Pages:

Lodelok Brochure-Metric - CM Industrial Products

See other catalogues for CM Industrial Products

You may also be interested in

Hoist ring, Chain hoist, Manual hoist, Chain sling, Lifting chain

Text version of the page

Clevlok Style


	Size	Working Load Limit	Product Code	Replace Latch Kit	Dimensions											Weight
		Working Load Limit	Product Code	Part#	D	G	H	J		K		L	F	P	M
	7	1,950	616005	656005	99	162	9	25		30	9		40	25	118	1.19
	10	4,000	616010	656010	128	208	12	30		32	13		57	32	155	2.24
	13	6,800	616015	656015	170	256	15	38		41	16		71	44	184	4.23
	16	10,300	616020	656020	204	295	18	43		48	19		81	51	212	6.67

LODELOK

F-

y e Style


	Size	Working	Product	Replace Latch Kit	Dimensions										Weight
	Size	Load Limit	Code	Part#	C	B	M	P		D	Fmin	G	H	K
					mm	mm	mm	mm		mm	mm	mm	mm	mm	mm
	7	1,950	626005	656005	51	33	138	25		99	40	37	16	30	1.19
	10	4,000	626010	656010	64	45	188	32		128	57	51	19	32	2.20
	13	6,800	626015	656015	87	60	238	44		170	71	66	25	41	4.74
	16	10,300	626020	656020	100	67	272	51		204	79	74	32	48	7.48

Industrial

Attachments

Swivel Style


	Size	Working	Product	Replace Latch Kit	Dimensions								Weight
	Size	Load Limit	Code	Part#	A	B	M	P	D	F min	K	H	Weight
	mm				mm	mm	mm	mm	mm	mm	mm	mm	*mjm*
	7	1,950	676005	656005	38	34	172	25	99	40	30	13	1.64
	10	4,000	676010	656010	44	41	223	32	128	57	32	16	2.31
	13	6,800	676015	656015	51	45	268	44	170	71	41	19	5.00
	16	10,300	676020	656020	70	60	325	51	204	79	48	25	8.19


	Size	Working	Product	Replace Latch Kit	Dimensions								Weight
	Size	Load Limit	Code	Part#	G	B min	c	M	D	F min	H	K	Weight
	mm				mm	mm	mm	mm	mm	mm	mm	mm	*mum*
	7	1,950	666005-1	656005	174	14	18	139	99	40	13	30	0.93
	10	4,000	666010-1	656010	231	23	29	186	128	57	18	32	2.18
	13	6,800	666015-1	656015	302	28	36	238	170	71	22	41	4.54
	16	10,300	666020-1	656020	344	33	53	271	204	80	20	48	6.94


	Size	Working	Product	Replace Latch Kit	Dimensions								Weight
	Size	Load Limit	Code	Part#	G	B	c	M	D	F min	H	K	Weight
	mm				mm	mm	mm	mm	mm	mm	mm	mm	■TV
	7	1,950	646005-1	656005	183	60	37	145	99	40	24	30	1.36
	10	4,000	646010-1	656010	238	76	46	191	128	57	29	32	2.40
	13	6,800	646015-1	656015	300	89	51	239	170	71	33	41	4.76
	16	10,300	646020-1	656020	352	121	73	275	204	80	43	48	7.71

K—L

ammerlok Connector


	Size	Working	Product	Dimensions							Weight
	Size	Load Limit	Code	G	D	c	M	K	F min	H	Weight

	7	1,950	867005-1	79	60	37	56	24	14	18	0.37
	10	4,000	867010-1	110	76	46	81	29	23	29	0.64
	13	6,800	867015-1	133	89	51	97	33	28	36	1.15
	16	10,300	867020-1	167	121	73	120	43	33	44	2.30


		F	-
	I /
	in		-U¹
	oh	k

D—J ^J Kl

onnector


	Size	Working	Product	Dimensions					Weight
	Size	Load Limit	Code	G	D	c	M	K	Weight
	mm	kg		mm	mm	mm	mm	mm	kg
	7	1,950	877005-1	88	60	37	62	24	0.47
	10	4,000	877010-1	117	76	46	85	29	0.87
	13	6,800	877015-1	132	89	51	97	33	1.37
	16	10,300	877020-1	175	121	73	124	43	3.07

O


				\	1

		■—n—■

Columbus McKinnon Corporation

140 John James Audubon Parkway Amherst, NY 14228

Phone: (800) 888-0985 or (716) 689-5400 Fax: (716)689-5644

www.cmmdustrial.com

Stock Code CM-LodelokM

f SS2.5M 4/08

© 2008 Columbus Mckinnon Corporation
