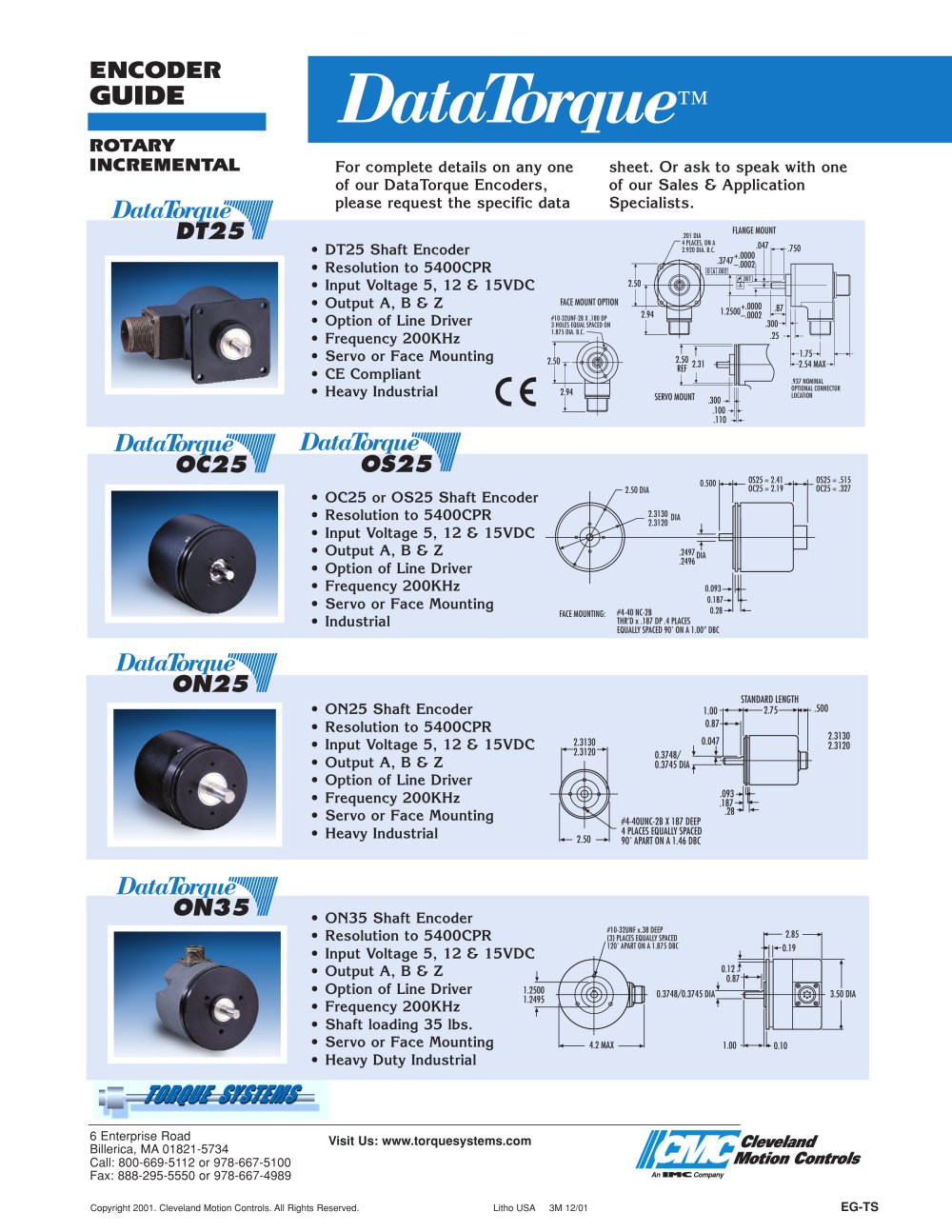

ENCODER

Encoder Product Guide - 18691 GUIDE ™

ROTARY INCREMENTAL

For complete details on any oneof our DataTorque Encoders, please request the specific datasheet. Or ask to speak with oneof our Sales & Application Specialists.

.201 DIA4 PLACES, ON A 2.920 DIA. B.C. FLANGE MOUNT

• DT25 Shaft Encoder• Resolution to 5400CPR • Input Voltage 5, 12 & 15VDC • Output A, B & Z • Option of Line Driver • Frequency 200KHz • Servo or Face Mounting • CE Compliant • Heavy Industrial

.047 .750.25 +.0000 –.0002.3747
O A .002 2.502.94
.001 -A- FACE MOUNT OPTION +.0000–.00021.2500 .87.300
#10-32UNF-2B X .180 DP3 HOLES EQUAL SPACED ON 1.875 DIA. B.C. 2.502.94 2.50REF 1.752.54 MAX
.937 NOMINALOPTIONAL CONNECTOR LOCATION SERVO MOUNT .3002.31 .100.110

• OC25 or OS25 Shaft Encoder• Resolution to 5400CPR • Input Voltage 5, 12 & 15VDC • Output A, B & Z • Option of Line Driver • Frequency 200KHz • Servo or Face Mounting • Industrial

2.31302.3120DIA DIAOS25 = .515OC25 = .3270.500 FACE MOUNTING: #4-40 NC-2BTHR’D x .187 DP .4 PLACES EQUALLY SPACED 90Ëš ON A 1.00” DBC 2.50 DIAOS25 = 2.41OC25 = 2.19.2497.24960.0930.1870.28

• ON25 Shaft Encoder• Resolution to 5400CPR • Input Voltage 5, 12 & 15VDC • Output A, B & Z • Option of Line Driver • Frequency 200KHz • Servo or Face Mounting • Heavy Industrial

2.751.00.5002.31302.31200.870.0470.3748/0.3745 DIA.093.187.28 STANDARD LENGTH #4-40UNC-2B X 187 DEEP 4 PLACES EQUALLY SPACED 90Ëš APART ON A 1.46 DBC 2.502.31302.3120

• ON35 Shaft Encoder• Resolution to 5400CPR • Input Voltage 5, 12 & 15VDC • Output A, B & Z • Option of Line Driver • Frequency 200KHz • Shaft loading 35 lbs. • Servo or Face Mounting • Heavy Duty Industrial

#10-32UNF x.38 DEEP(3) PLACES EQUALLY SPACED 120Ëš APART ON A 1.875 DBC
