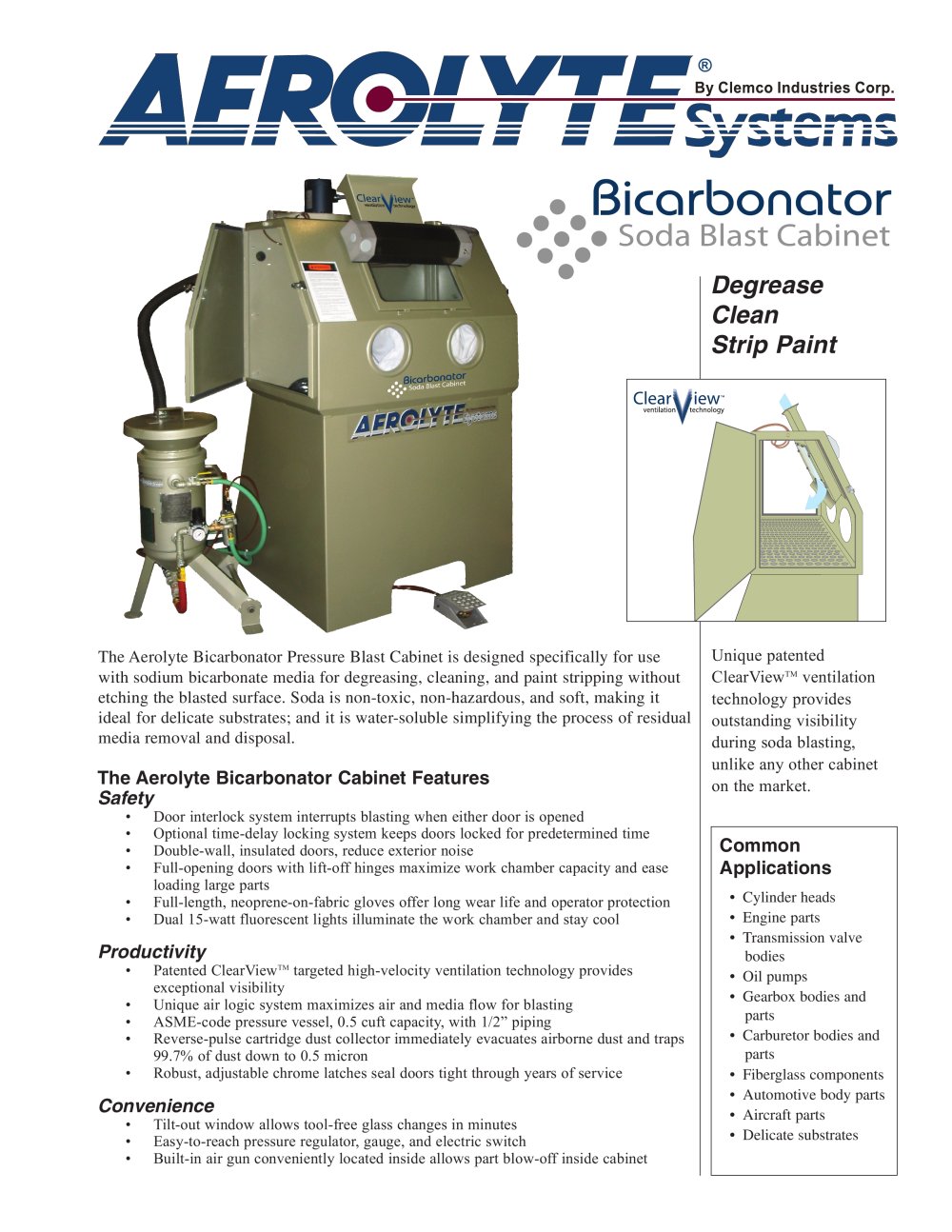

The Bicarbonator Pressure Blast Cabinet (Rev. D) - CLEMCO - #1

Text version of the page

By Clemco Industries Corp. Bicarbonator Soda Blast Cabinet Degrease Clean Strip Paint CleaiAiiew™ ventilation»* technology The Aerolyte Bicarbonator Pressure Blast Cabinet is designed specifically for use with sodium bicarbonate media for degreasing, cleaning, and paint stripping without etching the blasted surface. Soda is non-toxic, non-hazardous, and soft, making it ideal for delicate substrates; and it is water-soluble simplifying the process of residual media removal and disposal. The Aerolyte Bicarbonator Cabinet Features Safety • Door interlock system interrupts blasting when either door is opened • Optional time-delay locking system keeps doors locked for predetermined time • Double-wall, insulated doors, reduce exterior noise • Full-opening doors with lift-off hinges maximize work chamber capacity and ease loading large parts • Full-length, neoprene-on-fabric gloves offer long wear life and operator protection • Dual 15-watt fluorescent lights illuminate the work chamber and stay cool Productivity • Patented ClearViewTM targeted high-velocity ventilation technology provides exceptional visibility • Unique air logic system maximizes air and media flow for blasting • ASME-code pressure vessel, 0.5 cuft capacity, with 1/2" piping • Reverse-pulse cartridge dust collector immediately evacuates airborne dust and traps 99.7% of dust down to 0.5 micron • Robust, adjustable chrome latches seal doors tight through years of service Convenience • Tilt-out window allows tool-free glass changes in minutes • Easy-to-reach pressure regulator, gauge, and electric switch • Built-in air gun conveniently located inside allows part blow-off inside cabinet Unique patented ClearViewTM ventilation technology provides outstanding visibility during soda blasting, unlike any other cabinet on the market. Common Applications • Cylinder heads • Engine parts • Transmission valve bodies • Oil pumps • Gearbox bodies and parts • Carburetor bodies and parts • Fiberglass components • Automotive body parts • Aircraft parts • Delicate substrates
