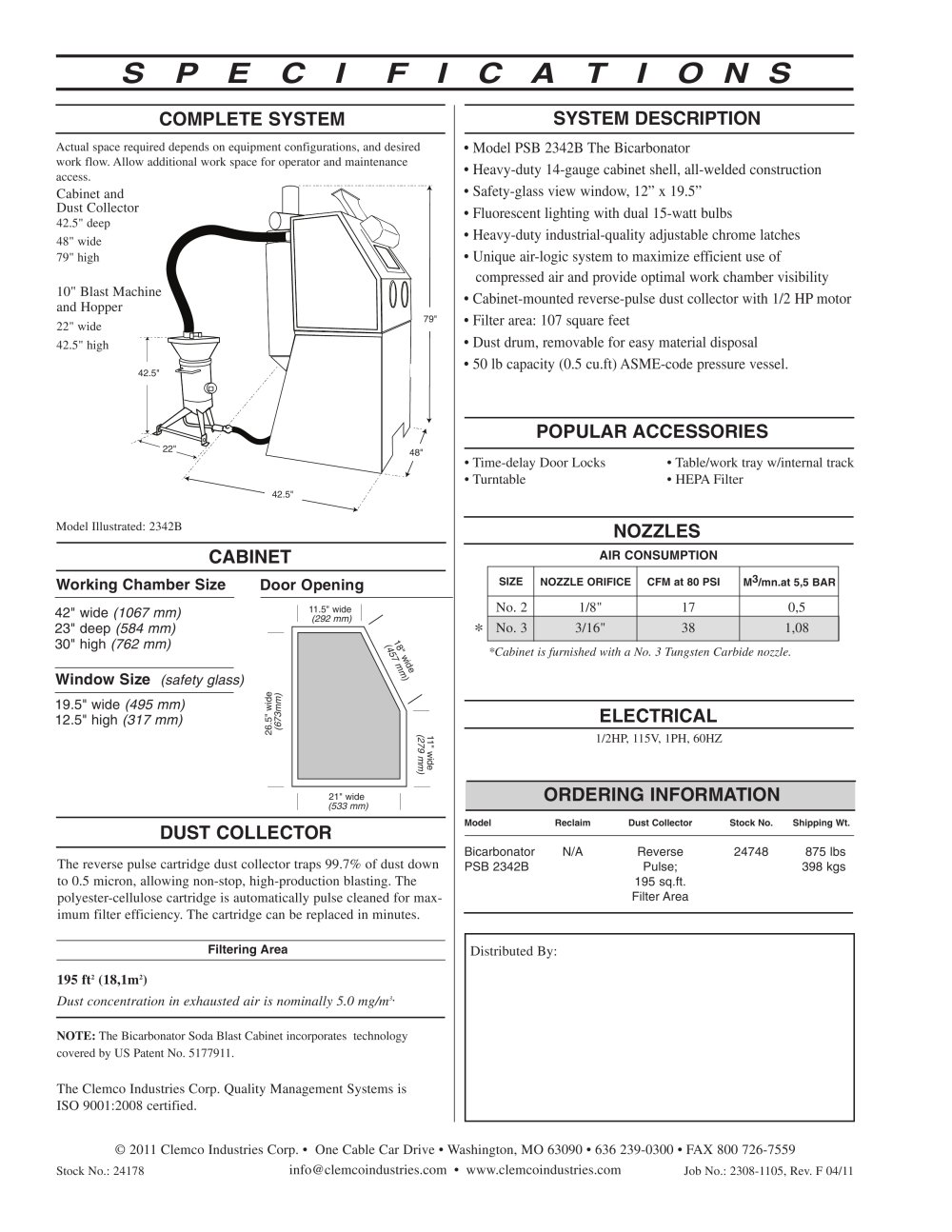

S P E C I F I C AT I O N S COMPLETE SYSTEM SYSTEM DESCRIPTION Actual space required dépends on equipment configurations, and desired work flow. Allow additional work space for operator and maintenance access. Cabinet and Dust Collector 42.5" deep 48" wide 79" high • Model PSB 2342B The Bicarbonator • Heavy-duty 14-gauge cabinet shell, all-welded construction • Safety-glass view window, 12" x 19.5" • Fluorescent lighting with dual 15-watt bulbs • Heavy-duty industrial-quality adjustable chrome latches • Unique air-logic system to maximize efficient use of compressed air and provide optimal work chamber visibility • Cabinet-mounted reverse-pulse dust collector with 1/2 HP motor • Filter area: 107 square feet • Dust drum, removable for easy material disposal • 50 lb capacity (0.5 cu.ft) ASME-code pressure vessel. 10" Blast Machine and Hopper 22" wide 42.5" high POPULAR ACCESSORIES • Time-delay Door Locks • Turntable • Table/work tray w/internal track • HEPA Filter Model Illustrated: 2342B NOZZLES CABINET AIR CONSUMPTION Working Chamber Size Door Opening SIZE NOZZLE ORIFICE CFM at 80 PSI M3/mn.at 5,5 BAR No. 2 1/8" 17 0,5 No. 3 3/16" 38 1,08 42" wide (1067 mm) 23" deep (584 mm) 30" high (762 mm) Window Size (safety glass) 19.5" wide (495 mm) 12.5" high (317 mm) 11.5" wide (292 mm) I y m) m *Cabinet is furnished with a No. 3 Tungsten Carbide nozzle. 21 d ) ELECTRICAL 1/2HP, 115V, 1PH, 60HZ 21" wide (533 mm) ORDERING INFORMATION DUST COLLECTOR Model Reclaim Dust Collector Stock No. Shipping Wt. The reverse pulse cartridge dust collector traps 99.7% of dust down to 0.5 micron, allowing non-stop, high-production blasting. The polyester-cellulose cartridge is automatically pulse cleaned for max­imum filter efficiency. The cartridge can be replaced in minutes. Bicarbonator N/A PSB 2342B Reverse Pulse; 195 sq.ft. Filter Area 24748 875 lbs 398 kgs Filtering Area Distributed By: 195 ft2 (18,1m2) Dust concentration in exhausted air is nominally 5.0 mg/m3. NOTE: The Bicarbonator Soda Blast Cabinet incorporates technology covered by US Patent No. 5177911. The Clemco Industries Corp. Quality Management Systems is ISO 9001:2008 certified. © 2011 Clemco Industries Corp. • One Cable Car Drive • Washington, MO 63090 • 636 239-0300 • FAX 800 726-7559 Stock No.: 24178 info@clemcoindustries.com • www.clemcoindustries.com Job No.: 2308-1105, Rev. F 04/11
