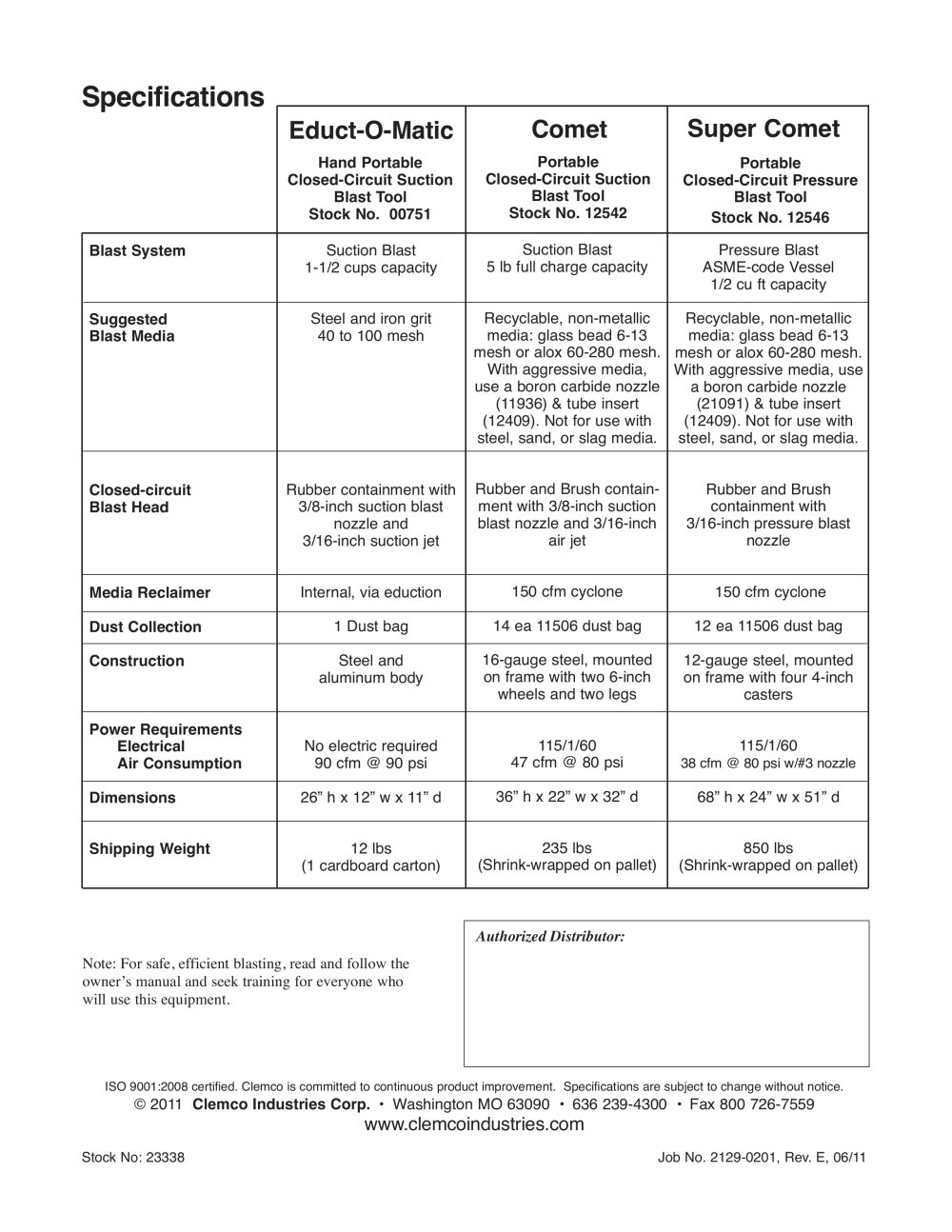

1 — Educt-O-Matic Comet Super Comet Hand Portable Closed-Circuit Suction Blast Tool Stock No. 00751 Portable Closed-Circuit Suction Blast Tool Stock No. 12542 Portable Closed-Circuit Pressure Blast Tool Stock No. 12546 Blast System Suction Blast 1-1/2 cups capacity Suction Blast 5 Ib full charge capacity Pressure Blast ASME-code Vessel 1/2 cu ft capacity Suggested Blast Media Steel and iron grit 40 to 100 mesh Recyclable, non-metallic media: glass bead 6-13 mesh or alox 60-280 mesh. With aggressive media, use a boron carbide nozzle (11936) & tube insert (12409). Not for use with steel, sand, or slag media. Recyclable, non-metallic media: glass bead 6-13 mesh or alox 60-280 mesh. With aggressive media, use a boron carbide nozzle (21091) & tube insert (12409). Not for use with steel, sand, or slag media. Closed-circuit Blast Head Rubber containment with 3/8-inch suction blast nozzle and 3/16-inch suction jet Rubber and Brush contain­ment with 3/8-inch suction blast nozzle and 3/16-inch air jet Rubber and Brush containment with 3/16-inch pressure blast nozzle Media Reclaimer Internal, via eduction 150 cfm cyclone 150 cfm cyclone Dust Collection 1 Dust bag 14 ea 11506 dust bag 12 ea 11506 dust bag Construction Steel and aluminum body 16-gauge steel, mounted on frame with two 6-inch wheels and two legs 12-gauge steel, mounted on frame with four 4-inch casters Power Requirements Electrical Air Consumption No electric required 90 cfm @ 90 psi 115/1/60 47 cfm @ 80 psi 115/1/60 38 cfm @ 80 psi w/#3 nozzle Dimensions 26" h x 12" w x 11" d 36" h x 22" w x 32" d 68" h x 24" w x 51" d Shipping Weight 12 Ibs (1 cardboard carton) 235 lbs (Shrink-wrapped on pallet) 850 lbs (Shrink-wrapped on pallet) Authorized Distributor: Note: For safe, efficient blasting, read and follow the owner's manual and seek training for everyone who will use this equipment. ISO 9001:2008 certified. Clemco is committed to continuous product improvement. Specifications are subject to change without notice. ©2011 Clemco Industries Corp. • Washington MO 63090 • 636 239-4300 • Fax 800 726-7559 www.clemcoindustries.com Stock No: 23338 Job No. 2129-0201, Rev. E, 06/11
