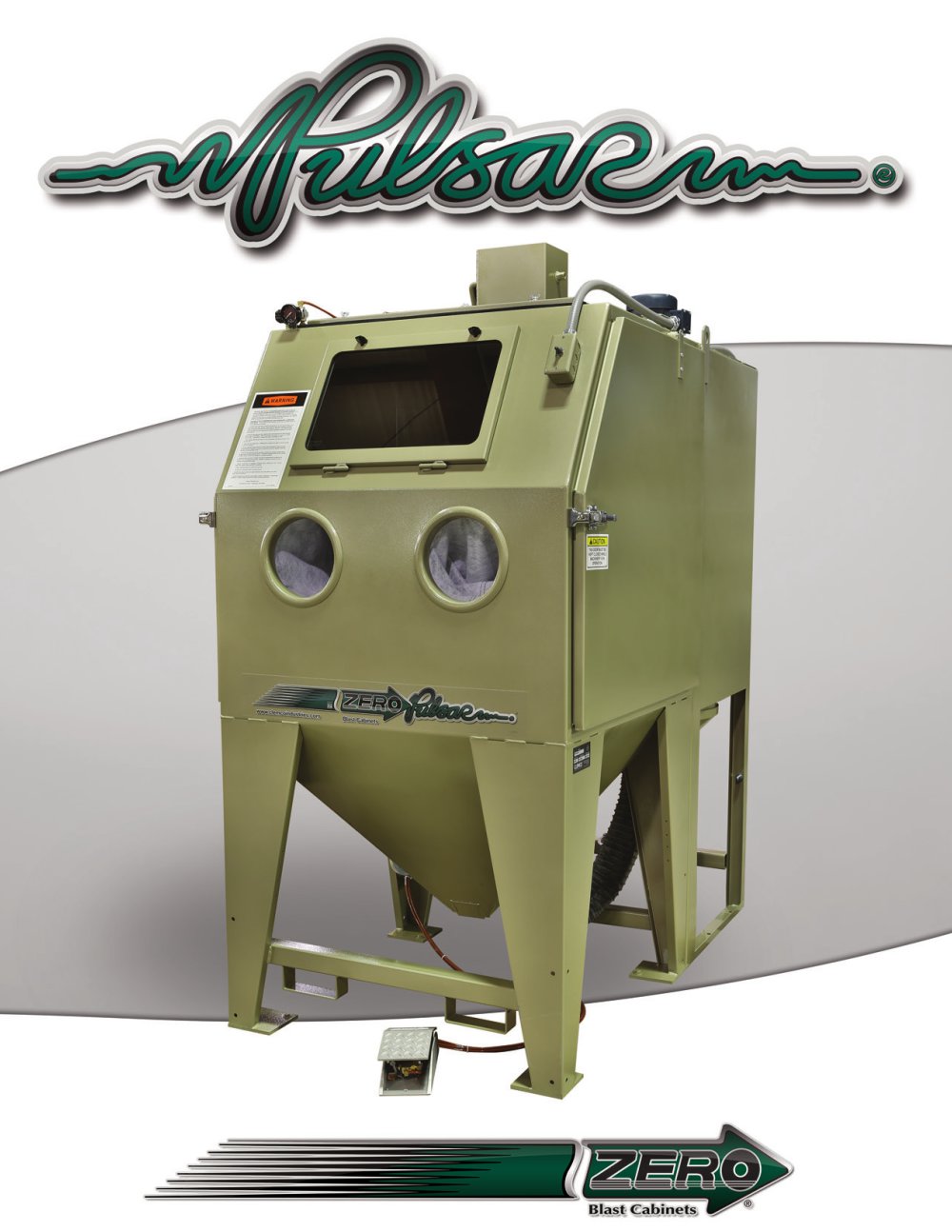

Pulsar III, VI & VI-P
6Pages

{{requestButtons}}

Catalog excerpts

Pulsar III, VI & VI-P - 2

Packed With Features • Filter cartridge is automatically cleaned each time the pedal is operated. • Pull-through exhaust fan reduces wear on impeller blades. • Unique Air Logic System maximizes air flow to the blast nozzle. • Door safety interlocks interrupt blasting if either door is opened. • Tough, full-length gloves protect the operator's hands and arms. • Large window and top-mounted light allow clear view of work. • Blow-off gun clears away dust and media after blasting. • Rubberized wear-plate prolongs reclaimer life. SIMPLE Each Pulsar® component has been engineered to work in...

Open the catalog to page 2
Pulsar III, VI & VI-P - 3

Each time the pedal is pressed or released, a pulse of compressed air knocks caked-on dust off the cartridge and into the dust drum. The dust collector cartridge traps more than 99.7 percent of the dust particles down to 0.5 micron. If cabinet visibility decreases, a few press-and-release cycles quickly clean the filter cartridge. The Heart of the Pulsar® System Air with dust and fines to dust collector The long-lasting cartridge can be replaced in minutes, reducing down-time. Air with debris, media and dust from cabinet Pulsar's pulse valve has its own pressure regulator and gauge. The...

Open the catalog to page 3
Pulsar III, VI & VI-P - 4

Pulsar® III & Pulsar® VI Suction Cabinets • Continuous reclamation and high-production blasting. • Simple media metering system allows precise adjustment. • Exclusive BNP Blast Gun sets the industry standard for performance and durability. • Number 5 Gun and ceramic nozzle standard. • Easy access to reclaimer door for adding fresh media, and to dust drum for dust removal. • Efficient 1/2-inch air filter traps oil and water that can ruin blast media and contaminate cleaned parts. • Pulsar® VI features flanged mounting on reclaimer that can accept suction or presure blast system. Ergonomic...

Open the catalog to page 4
Pulsar III, VI & VI-P - 5

Pulsar® VI-P Pressure Cabinet • 1-cu-ft blast machine (with automatic refill from reclaimer) holds enough media to blast continuously for up to 30 minutes. • ASME-code blast machine rated for 125 psi with large hand hole for internal maintenance and 35-degree conical bottom for smooth media flow. • Standard Number 3 tungsten carbide nozzle delivers hundreds of hours of efficient blasting with most abrasives. Pulsar® VI-P accepts nozzles up to Number 5. • Efficient 1-inch air filter delivers high-volume air and traps oil and water that can ruin blast media and contaminate cleaned parts. •...

Open the catalog to page 5
Pulsar III, VI & VI-P - 6

Complete System Actual space requirements depend on desired work flow. Allow additional work space for operator and maintenance. Cabinet: Working Chamber Size Pulsar® III: 36" wide (914mm) Pulsar® VI: 50" wide (1270mm) 35" deep (889mm) 39" deep (991mm) Guns/Nozzles: Suction Blast Air Requirements Pulsar® III and Pulsar® VI cabinets are furnished with a No. 5 gun and ceramic nozzle. Guns/Nozzles: Pressure Blast Air Requirements Pulsar® VI-P cabinets are furnished with a No. 3 tungsten carbide nozzle. Reclaimer Flow Rate Pulsar® III: Nominal 300 cfm • Pulsar® VI: Nominal 600 cfm Cabinet:...

Open the catalog to page 6
