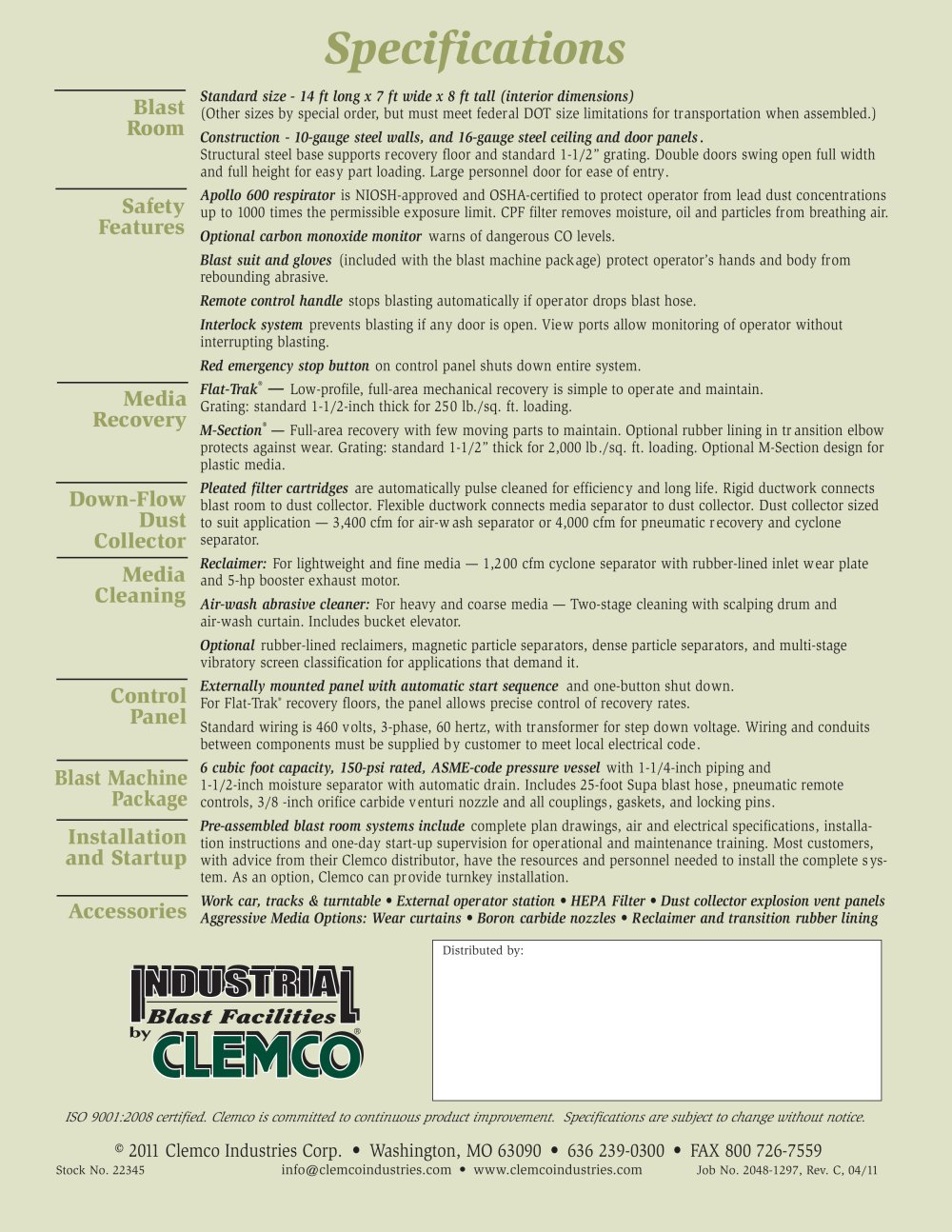

Spécifications Blast Room Standard size -14 ft long x 7 ft wide x 8 ft tall (interior dimensions) (Other sizes by spécial order, but must meet federal DOT size limitations for transportation when assembled.)
Construction - 10-gauge steel walls, and 16-gauge steel ceiling and door panels. Structural steel base supports recovery floor and standard 1-1/2" grating. Double doors swing open full width and full height for easy part loading. Large personnel door for ease of entry.
Apollo 600 respirator is NIOSH-approved and OSHA-certified to protect operator from lead dust concentrations up to 1000 times the permissible exposure limit. CPF filter removes moisture, oil and particles from breathing air.
Optional carbon monoxide monitor warns of dangerous CO levels.
Blast suit and gloves (included with the blast machine package) protect operator's hands and body from rebounding abrasive.
Remote control handle stops blasting automatically if operator drops blast hose.
Interlock system prevents blasting if any door is open. View ports allow monitoring of operator without interrupting blasting.
Red emergency stop button on control panel shuts down entire system.
Flat-Trak® — Low-profile, full-area mechanical recovery is simple to operate and maintain. Grating: standard 1-1/2-inch thick for 250 lb./sq. ft. loading.
M-Section® — Full-area recovery with few moving parts to maintain. Optional rubber lining in transition elbow protects against wear. Grating: standard 1-1/2" thick for 2,000 lb./sq. ft. loading. Optional M-Section design for plastic media.
Pleated filter cartridges are automatically pulse cleaned for efficiency and long life. Rigid ductwork connects blast room to dust collector. Flexible ductwork connects media separator to dust collector. Dust collector sized to suit application — 3,400 cfm for air-wash separator or 4,000 cfm for pneumatic recovery and cyclone separator.
Reclaimer: For lightweight and fine media — 1,200 cfm cyclone separator with rubber-lined inlet wear plate and 5-hp booster exhaust motor.
Air-wash abrasive cleaner: For heavy and coarse media — Two-stage cleaning with scalping drum and air-wash curtain. Includes bucket elevator.
Optional rubber-lined reclaimers, magnetic particle separators, dense particle separators, and multi-stage vibratory screen classification for applications that demand it.
Externally mounted panel with automatic start sequence and one-button shut down. For Flat-Trak* recovery floors, the panel allows precise control of recovery rates. Standard wiring is 460 volts, 3-phase, 60 hertz, with transformer for step down voltage. Wiring and conduits between components must be supplied by customer to meet local electrical code.
6 cubic foot capacity, 150-psi rated, ASME-code pressure vessel with 1-1/4-inch piping and 1-1/2-inch moisture separator with automatic drain. Includes 25-foot Supa blast hose, pneumatic remote controls, 3/8 -inch orifice carbide venturi nozzle and all couplings, gaskets, and locking pins.
Pre-assembled blast room systems include complete plan drawings, air and electrical specifications, installation instructions and one-day start-up supervision for operational and maintenance training. Most customers, with advice from their Clemco distributor, have the resources and personnel needed to install the complete s ys-tem. As an option, Clemco can provide turnkey installation.
Work car, tracks & turntable • External operator station • HEPA Filter • Dust collector explosion vent panels Aggressive Media Options: Wear curtains • Boron carbide nozzles • Reclaimer and transition rubber lining Safety Features Media Recovery Down-Flow Dust Collector Media Cleaning Control Panel Blast Machine Package Installation and Startup Accessories Distributed by: Blast Facitities ISO 9001:2008 certified. Clemco is committed to continuons product improvement. Specifications are subject to change without notice. © 2011 Clemco Industries Corp. • Washington, MO 63090 • 636 239-0300 • FAX 800 726-7559 Stock No. 22345 info@clemcoindustries.com • www.clemcoindustries.com Job No. 2048-1297, Rev. C, 04/11
