Pre-assembled blast-room - CLEMCO - #2

Text version of the page

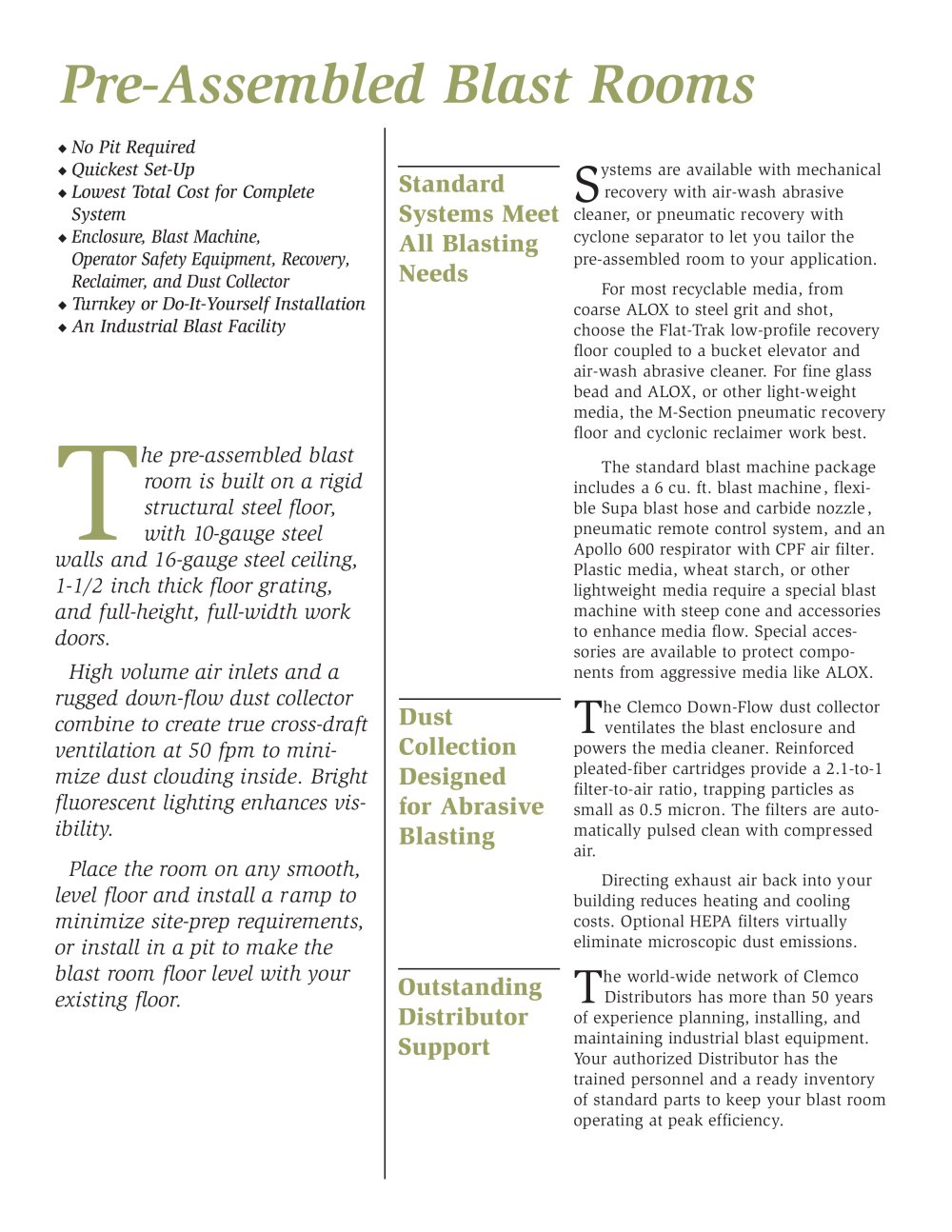

Pre-Assembled Blast Rooms ♦ No Pit Required ♦ Quickest Set-Up ♦ Lowest Total Cost for Complete System ♦ Enclosure, Blast Machine, Operator Safety Equipment, Recovery, Reclaimer, and Dust Collector ♦ Turnkey or Do-It-Yourself Installation ♦ An Industrial Blast Facility Standard Systems Meet All Blasting Needs S ystems are available with mechanical recovery with air-wash abrasive cleaner, or pneumatic recovery with cyclone separator to let you tailor the pre-assembled room to your application. For most recyclable media, from coarse ALOX to steel grit and shot, choose the Flat-Trak low-profile recovery floor coupled to a bucket elevator and air-wash abrasive cleaner. For fine glass bead and ALOX, or other light-weight media, the M-Section pneumatic recovery floor and cyclonic reclaimer work best. The standard blast machine package includes a 6 cu. ft. blast machine, flexi­ble Supa blast hose and carbide nozzle, pneumatic remote control system, and an Apollo 600 respirator with CPF air filter. Plastic media, wheat starch, or other lightweight media require a special blast machine with steep cone and accessories to enhance media flow. Special acces-sories are available to protect compo-nents from aggressive media like ALOX. T he Clemco Down-Flow dust collector ventilates the blast enclosure and powers the media cleaner. Reinforced pleated-fiber cartridges provide a 2.1-to-1 filter-to-air ratio, trapping particles as small as 0.5 micron. The filters are auto-matically pulsed clean with compressed air. Directing exhaust air back into your building reduces heating and cooling costs. Optional HEPA filters virtually eliminate microscopic dust emissions. T he world-wide network of Clemco Distributors has more than 50 years of experience planning, installing, and maintaining industrial blast equipment. Your authorized Distributor has the trained personnel and a ready inventory of standard parts to keep your blast room operating at peak efficiency. r ■ 1 he pre-assembled blast room is built on a rigid structural steel floor, with 10-gauge steel walls and 16-gauge steel ceiling, 1-1/2 inch thick floor grating, and full-height, full-width work doors. High volume air inlets and a rugged down-flow dust collector combine to create true cross-draft ventilation at 50 fpm to mini-mize dust clouding inside. Bright fluorescent lighting enhances vis-ibility. Place the room on any smooth, level floor and install a ramp to minimize site-prep requirements, or install in a pit to make the blast room floor level with your existing floor. Dust Collection Designed for Abrasive Blasting Outstandin Distributor Support
