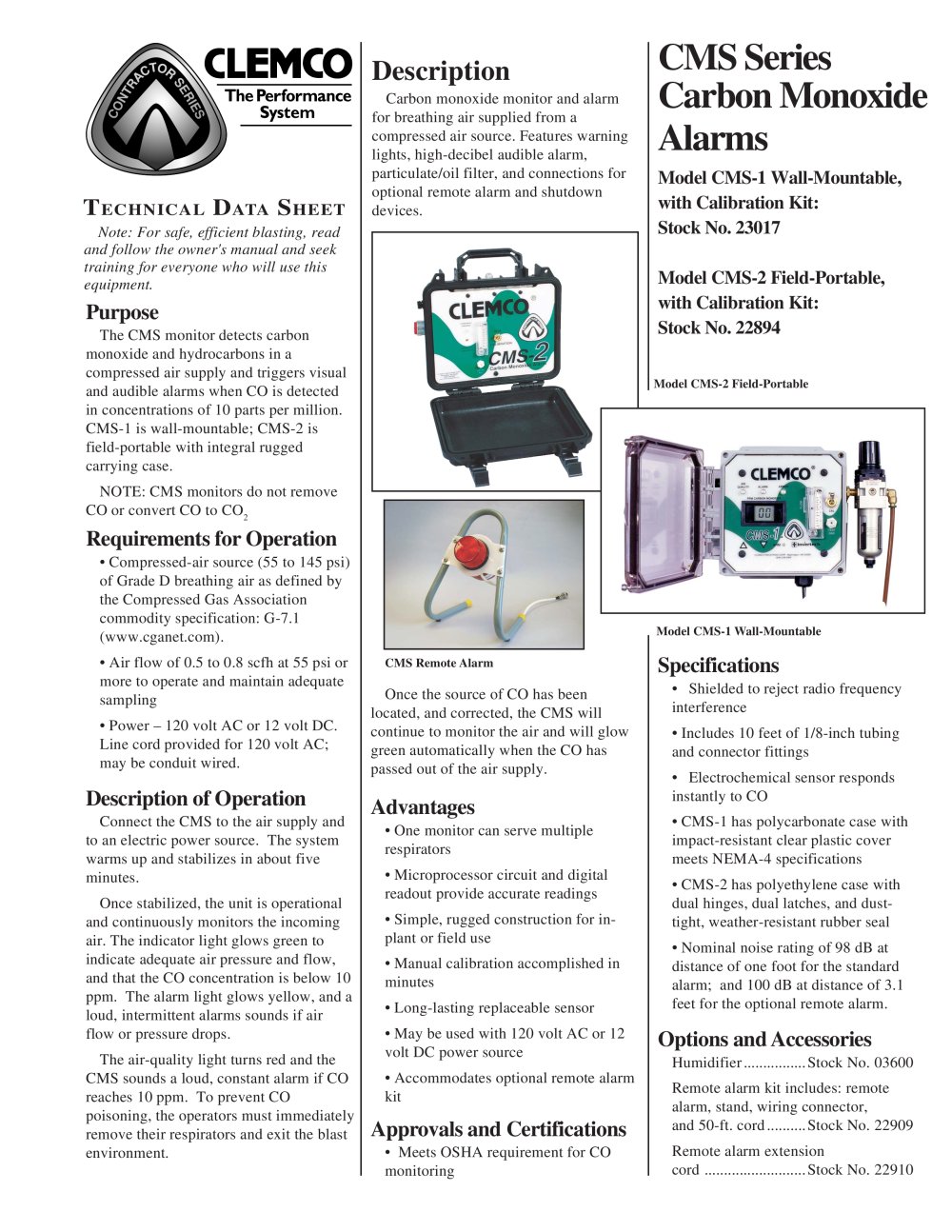

| | | | CMS Series Carbon Monoxide Alarms Model CMS-1 Wall-Mountable, with Calibration Kit: Stock No. 23017 Model CMS-2 Field-Portable, with Calibration Kit: Stock No. 22894 | |
| | | Carbon monoxide monitor and alarm for breathing air supplied from a compressed air source. Features warning lights, high-decibel audible alarm, particulate/oil filter, and connections for optional remote alarm and shutdown devices. | |
| | Technical Data Sheet Note: For safe, efficient blasting, read and follow the owner's manual and seek training for everyone who will use this equipment. Purpose The CMS monitor detects carbon monoxide and hydrocarbons in a compressed air supply and triggers visual and audible alarms when CO is detected in concentrations of 10 parts per million. CMS-1 is wall-mountable; CMS-2 is field-portable with integral rugged carrying case. NOTE: CMS monitors do not remove CO or convert CO to CO2 Requirements for Operation • Compressed-air source (55 to 145 psi) of Grade D breathing air as defined by the Compressed Gas Association commodity specification: G-7.1 (www.cganet.com). • Air flow of 0.5 to 0.8 scfh at 55 psi or more to operate and maintain adequate sampling • Power - 120 volt AC or 12 volt DC. Line cord provided for 120 volt AC; may be conduit wired. Description of Operation Connect the CMS to the air supply and to an electric power source. The system warms up and stabilizes in about five minutes. Once stabilized, the unit is operational and continuously monitors the incoming air. The indicator light glows green to indicate adequate air pressure and flow, and that the CO concentration is below 10 ppm. The alarm light glows yellow, and a loud, intermittent alarms sounds if air flow or pressure drops. The air-quality light turns red and the CMS sounds a loud, constant alarm if CO reaches 10 ppm. To prevent CO poisoning, the operators must immediately remove their manufacturers of respirators and exit the blast environment. | |
| | | Model CMS-1 Wall-Mountable Specifications • Shielded to reject radio frequency interference • Includes 10 feet of 1/8-inch tubing and connector fittings • CMS-1 has polycarbonate case with impact-resistant clear plastic cover meets NEMA-4 specifications • CMS-2 has polyethylene case with dual hinges manufacturers, dual latches, and dust-tight, weather-resistant rubber seal • Nominal noise rating of 98 dB at distance of one foot for the standard alarm; and 100 dB at distance of 3.1 feet for the optional remote alarm. Options and Accessories Humidifier................Stock No. 03600 Remote alarm kit includes: remote alarm, stand, wiring connector, and 50-ft. cord..........Stock No. 22909 Remote alarm extension cord..........................Stock No. 22910 | |
| | Once the source of CO has been located, and corrected, the CMS will continue to monitor the air and will glow green automatically when the CO has passed out of the air supply. Advantages • One monitor can serve multiple respirators • Microprocessor circuit and digital readout provide accurate readings • Simple, rugged construction for inplant or field use • Manual calibration accomplished in minutes • May be used with 120 volt AC or 12 volt DC power source • Accommodates optional remote alarm kit Approvals and Certifications • Meets OSHA requirement for CO monitoring | |
| | | |
| | | | | |
