BNP 55 Suction Blast Cabinet (Rev. D
2Pages

{{requestButtons}}

Catalog excerpts

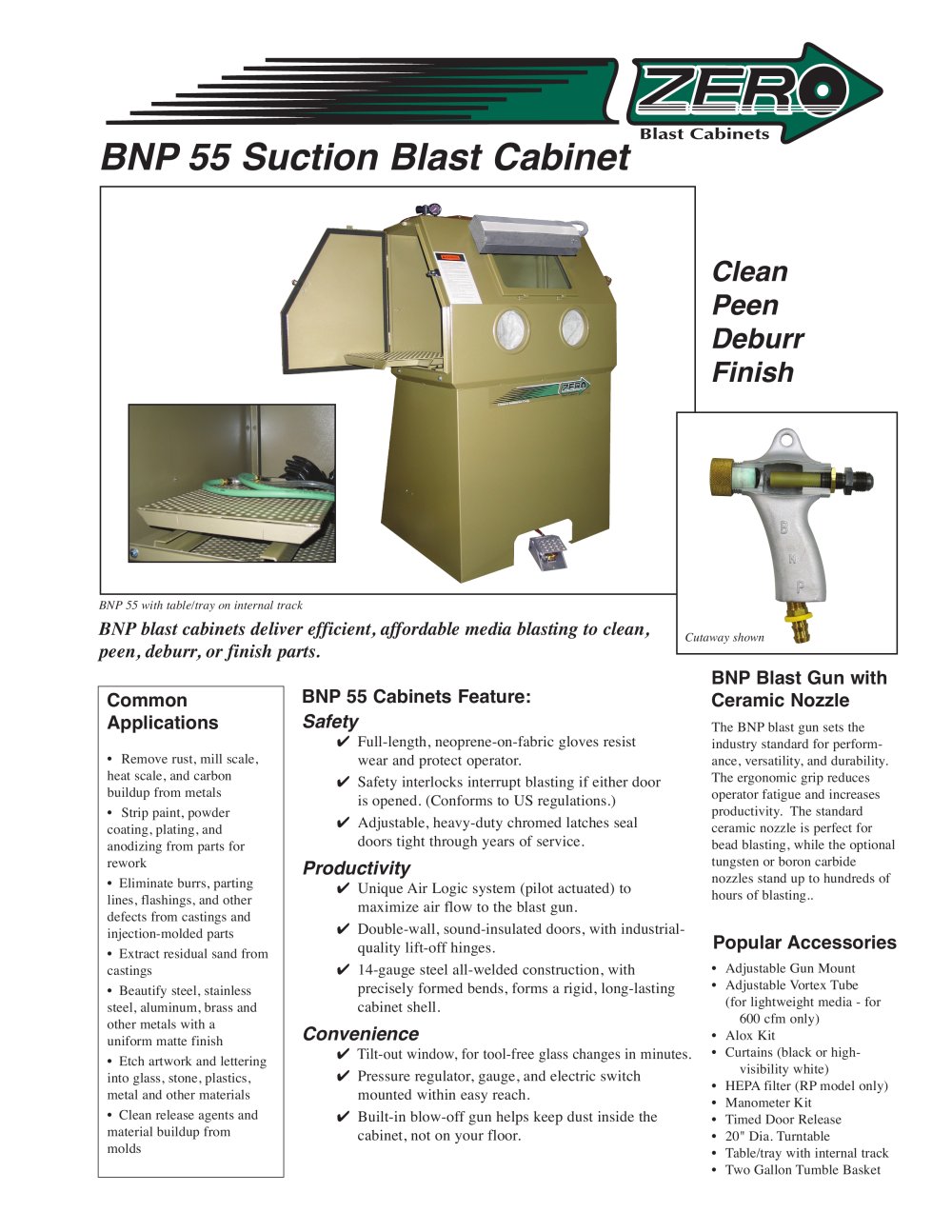

BNP 55 Suction Blast Cabinet (Rev. D - 1

BNP55 Suction Blast Cabinet CleanPeenDeburrFinish BNP 55 with table/tray on internai track BNP blast cabinets deliver efficient, affordable media blasting to clean, peen, deburr, or finish parts. Cutaway shown Common Applications Remove rust, mill scale, heat scale, and carbon buildup from metals Օ Strip paint, powder coating, plating, and anodizing from parts for rework Eliminate burrs, parting lines, flashings, and other defects from castings and injection-molded parts Օ Extract residual sand from castings Beautify steel, stainless steel, aluminum, brass and other metals with a uniform matte finish Օ Etch artwork and lettering into glass, stone, plastics, metal and other materials Clean release agents and material buildup from molds BNP 55 Cabinets Feature: Safety ✓ Full-length, neoprene-on-fabric gloves resist wear and protect operator. ✓ Safety interlocks interrupt blasting if either door is opened. (Conforms to US regulations.) ✓ Adjustable, heavy-duty chromed latches seal doors tight through years of service. Productivity ✓ Unique Air Logic system (pilot actuated) to maximize air flow to the blast gun. ✓ Double-wall, sound-insulated doors, with industrial-quality lift-off hinges. ✓ 14-gauge steel all-welded construction, with precisely formed bends, forms a rigid, long-lasting cabinet shell. Convenience ✓ Tilt-out window, for tool-free glass changes in minutes. ✓ Pressure regulator, gauge, and electrric switch mounted within easy reach. ✓ Built-in blow-off gun helps keep dust inside the cabinet, not on your floor. BNP Blast Gun with Ceramic Nozzle The BNP blast gun sets the industry standard for performխance, versatility, and durability. The ergonomic grip reduces operator fatigue and increases productivity. The standard ceramic nozzle is perfect for bead blasting, while the optional tungsten or boron carbide nozzles stand up to hundreds of hours of blasting.. Popular Accessories Adjustable Gun Mount Օ Adjustable Vortex Tube (for lightweight media - for 600 cfm only) Alox Kit Օ Curtains (black or high- visibility white) HEPA filter (RP model only) Օ Manometer Kit Timed Door Release Օ 20" Dia. Turntable Table/tray with internal track Օ Two Gallon Tumble Basket

Open the catalog to page 1
BNP 55 Suction Blast Cabinet (Rev. D - 2

S P E C I F I C AT I O N S COMPLETE SYSTEM MEDIA RECLAIMER actual space required dpends on equipment configurations, options and desired work flow. allow additional work space for operator and maintenance access. The Heart of ZERO's Blasting System our exclusive media reclaimers a. 42.5" deep (includes rear-mounted reclaimer) b. 48" wide c. 74" high continuously extract dust and debris and return properly sized, usable Dust and Fines Exhausted to Dust Collector to exhauster media to the blast system. the standard reclaimer handles all non-metallic media. for metallic media, specify reduced...

Open the catalog to page 2
