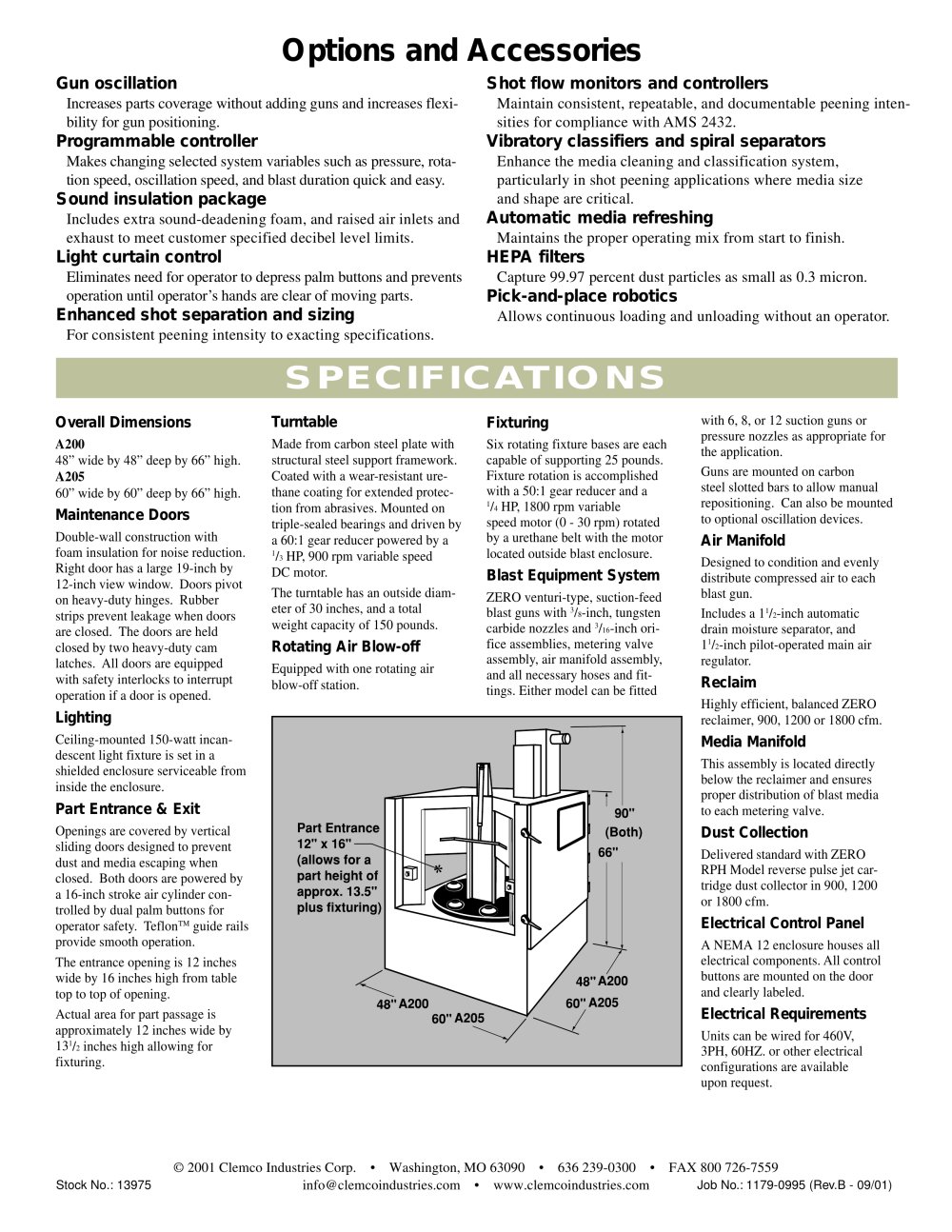

Options and Accessories

Gun oscillation Increases parts coverage without adding guns and increases flexibility for gun positioning. Programmable controller Makes changing selected system variables such as pressure, rotation speed, oscillation speed, and blast duration quick and easy. Sound insulation package Includes extra sound-deadening foam, and raised air inlets and exhaust to meet customer specified decibel level limits. Light curtain control Eliminates need for operator to depress palm buttons and prevents operation until operator's hands are clear of moving parts. Enhanced shot separation and sizing For consistent peening intensity to exacting specifications.		Shot flow monitors and controllers Maintain consistent, repeatable, and documentable peening intensities for compliance with AMS 2432. Vibratory classifiers and spiral separators Enhance the media cleaning and classification system, particularly in shot peening applications where media size and shape are critical. Automatic media refreshing Maintains the proper operating mix from start to finish. HEPA filters Capture 99.97 percent dust particles as small as 0.3 micron. Pick-and-place robotics Allows continuous loading and unloading without an operator.

S PECIFICATI			ONS

Overall Dimens ions A200 48" wide by 48" deep by 66" high. A205 60" wide by 60" deep by 66" high. Maintenance Doors Double-wall construction with foam insulation for noise reduction. Right door has a large 19-inch by 12-inch view window. Doors pivot on heavy-duty hinges. Rubber strips prevent leakage when doors are closed. The doors are held closed by two heavy-duty cam latches. All doors are equipped with safety interlocks to interrupt operation if a door is opened. Lighting Ceiling-mounted 150-watt incandescent light fixture is set in a shielded enclosure serviceable from inside the enclosure. Part Entrance & Exit Openings are covered by vertical sliding doors designed to prevent dust and media escaping when closed. Both doors are powered by a 16-inch stroke air cylinder controlled by dual palm buttons for operator safety. Teflon™ guide rails provide smooth operation. The entrance opening is 12 inches wide by 16 inches high from table top to top of opening. Actual area for part passage is approximately 12 inches wide by 13¹/2 inches high allowing for fixturing.	Turntable Made from carbon steel plate with structural steel support framework. Coated with a wear-resistant ure-thane coating for extended protection from abrasives. Mounted on triple-sealed bearings and driven by a 60:1 gear reducer powered by a ¹/3 HP, 900 rpm variable speed DC motor. The turntable has an outside diameter of 30 inches, and a total weight capacity of 150 pounds. Rotating Air Blow-off Equipped with one rotating air blow-off station.	Fixturing Six rotating fixture bases are each capable of supporting 25 pounds. Fixture rotation is accomplished with a 50:1 gear reducer and a ¹/4 HP, 1800 rpm variable speed motor (0 - 30 rpm) rotated by a urethane belt with the motor located outside blast enclosure. Blast Equipment System ZERO venturi-type, suction-feed blast guns with ³/8-inch, tungsten carbide nozzles and ³/16-inch orifice assemblies, metering valve assembly, air manifold assembly, and all necessary hoses and fittings. Either model can be fitted		with 6, 8, or 12 suction guns or pressure nozzles as appropriate for the application. Guns are mounted on carbon steel slotted bars to allow manual repositioning. Can also be mounted to optional oscillation devices. Air Manifold Designed to condition and evenly distribute compressed air to each blast gun. Includes a 1¹/2-inch automatic drain moisture separator, and 1¹/2-inch pilot-operated main air regulator. Reclaim Highly efficient, balanced ZERO reclaimer, 900, 1200 or 1800 cfm. Media Manifold This assembly is located directly below the reclaimer and ensures proper distribution of blast media to each metering valve. Dust Collection Delivered standard with ZERO RPH Model reverse pulse jet cartridge dust collector in 900, 1200 or 1800 cfm. Electrical Control Panel A NEMA 12 enclosure houses all electrical components. All control buttons are mounted on the door and clearly labeled. Electrical Requirements Units can be wired for 460V, 3PH, 60HZ. or other electrical configurations are available upon request.
	Part Entrance 12"x16" (allows for a part height of approx. 13.5" plus fixturing)

© 2001 Clemco Industries Corp. • Washington, MO 63090 • 636 239-0300 • FAX 800 726-7559 Stock No.: 13975 info@clemcoindustries.com • www.clemcoindustries.com Job No.: 1179-0995 (Rev.B - 09/01)
