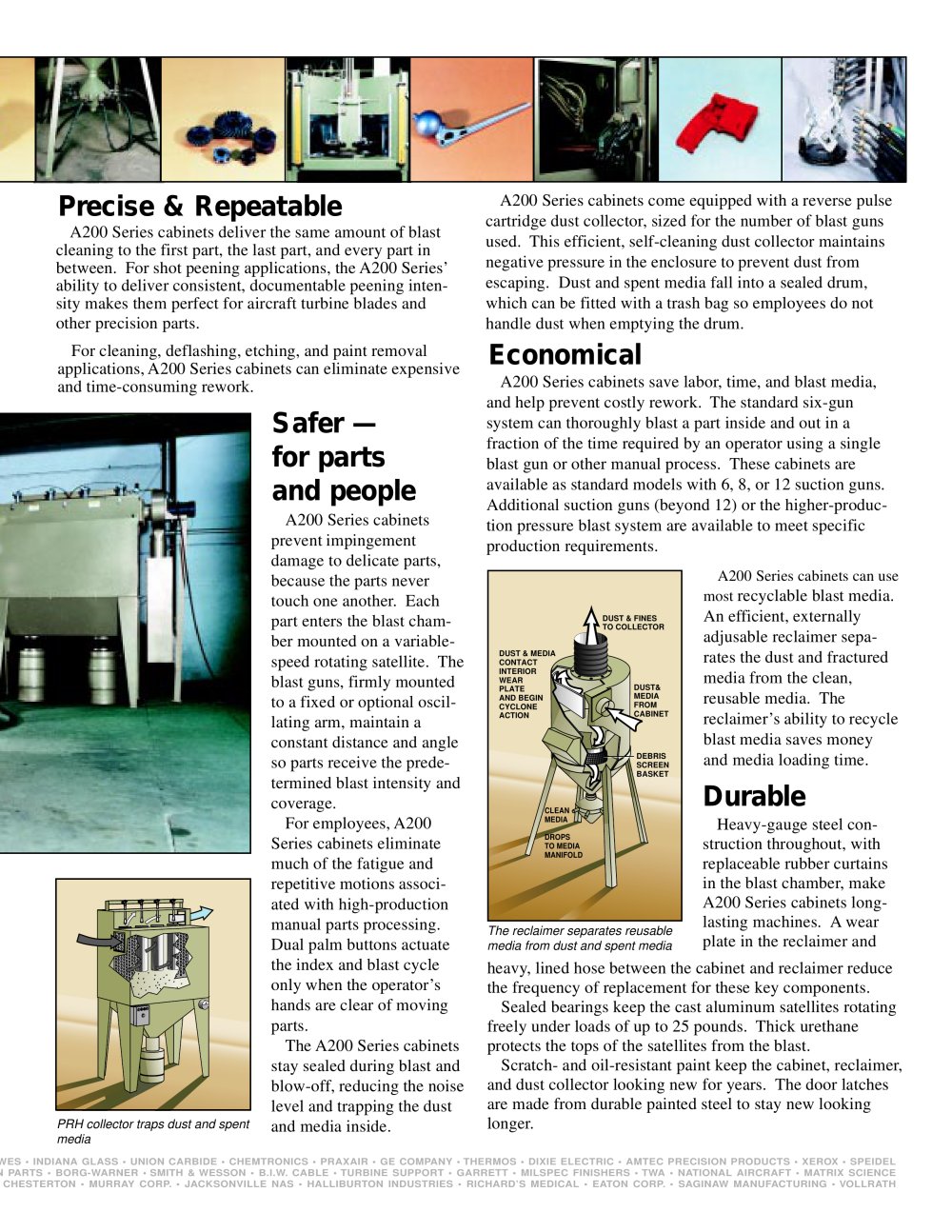

Precise & Repeatable A200 Series cabinets deliver the same amount of blast cleaning to the first part, the last part, and every part in between. For shot peening applications, the A200 Series' ability to deliver consistent, documentable peening intensity makes them perfect for aircraft turbine blades and other precision parts. For cleaning, deflashing, etching, and paint removal applications, A200 Series cabinets can eliminate expensive and time-consuming rework.		A200 Series cabinets come equipped with a reverse pulse cartridge dust collector, sized for the number of blast guns used. This efficient, self-cleaning dust collector maintains negative pressure in the enclosure to prevent dust from escaping. Dust and spent media fall into a sealed drum, which can be fitted with a trash bag so employees do not handle dust when emptying the drum. Economical A200 Series cabinets save labor, time, and blast media, and help prevent costly rework. The standard six-gun system can thoroughly blast a part inside and out in a fraction of the time required by an operator using a single blast gun or other manual process. These cabinets are available as standard models with 6, 8, or 12 suction guns. Additional suction guns (beyond 12) or the higher-production pressure blast system are available to meet specific production requirements.
PRH collector traps dust and spent media	Safer — for parts and people A200 Series cabinets prevent impingement damage to delicate parts, because the parts never touch one another. Each part enters the blast chamber mounted on a variable-speed rotating satellite. The blast guns, firmly mounted to a fixed or optional oscillating arm, maintain a constant distance and angle so parts receive the predetermined blast intensity and coverage. For employees, A200 Series cabinets eliminate much of the fatigue and repetitive motions associated with high-production manual parts processing. Dual palm buttons actuate the index and blast cycle only when the operator's hands are clear of moving parts. The A200 Series cabinets stay sealed during blast and blow-off, reducing the noise level and trapping the dust and media inside.
		DUST & FINES TO COLLECTOR		A200 Series cabinets can use most recyclable blast media. An efficient, externally adjusable reclaimer sepa
		DUST & MEDIA CONTACT INTERIOR WEAR PLATE AND BEGIN CYCLONE ACTION	rates the dust and fractured media from the clean, reusable media. The
			reclaimer's ability to recycle blast media saves money and media loading time. Durable Heavy-gauge steel construction throughout, with replaceable rubber curtains in the blast chamber, make A200 Series cabinets long-
		The reclaimer separates reusable media from dust and spent media		lasting machines. A wear plate in the reclaimer and
		heavy, lined hose between the cabinet and reclaimer reduce the frequency of replacement for these key components. Sealed bearings keep the cast aluminum satellites rotating freely under loads of up to 25 pounds. Thick urethane protects the tops of the satellites from the blast. Scratch- and oil-resistant paint keep the cabinet, reclaimer, and dust collector looking new for years. The door latches are made from durable painted steel to stay new looking longer.

*NES* • INDIANA GLASS • UNION CARBIDE • CHEMTRONICS • PRAXAIR • GE COMPANY • THERMOS • DIXIE ELECTRIC • AMTEC PRECISION PRODUCTS • XEROX • SPEIDEL J PARTS • BORG-WARNER - SMITH & WESSON • B.I.W. CABLE - TURBINE SUPPORT • GARRETT • MILSPEC FINISHERS - TWA • NATIONAL AIRCRAFT • MATRIX SCIENCE CHESTERTON • MURRAY CORP. • JACKSONVILLE NAS • HALLIBURTON INDUSTRIES • RICHARD'S MEDICAL • EATON CORP. • SAGINAW MANUFACTURING • VOLLRATH
