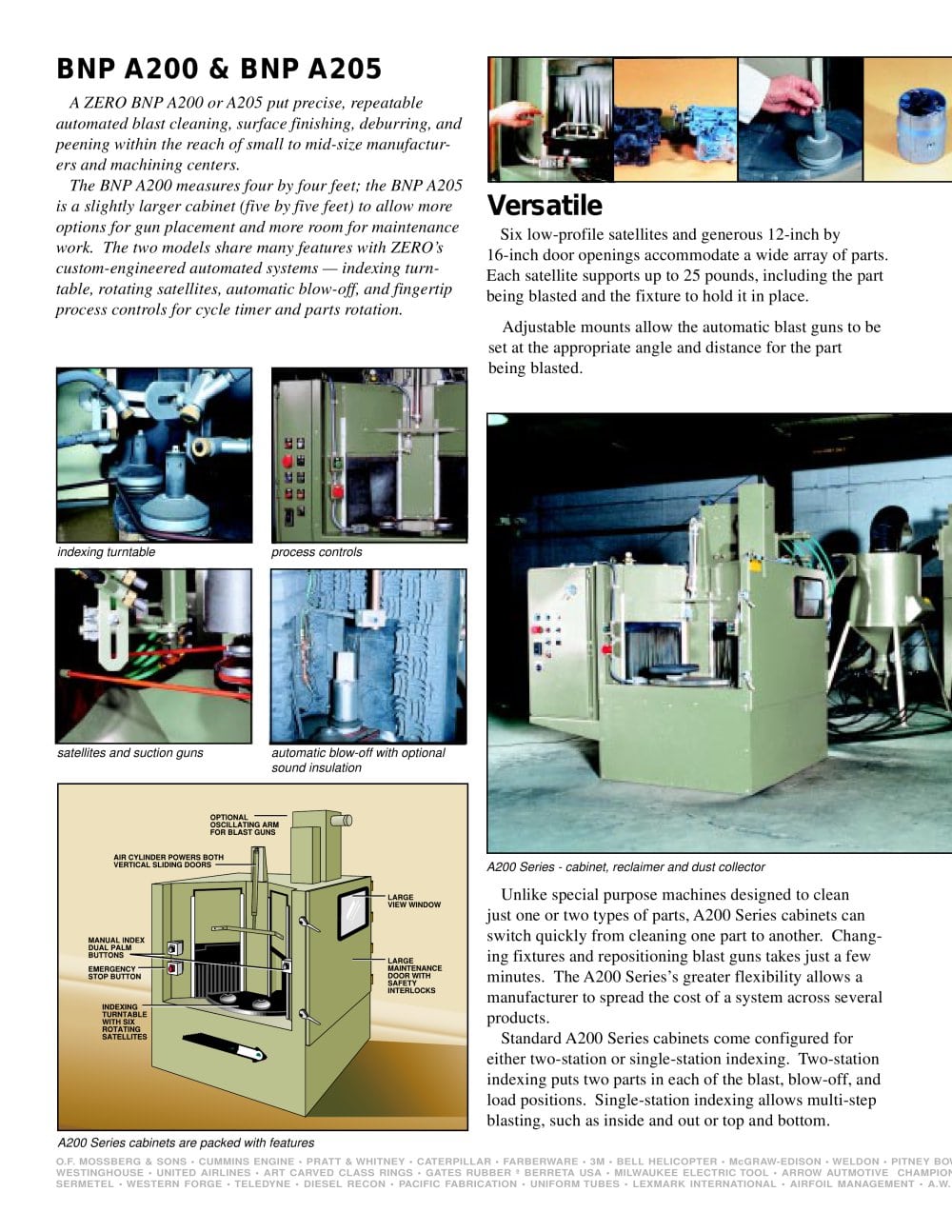

BNP A200 & BNP A205

A ZERO BNP A200 or A205 put precise, repeatableautomated blast cleaning, surface finishing, deburring, andpeening within the reach of small to mid-size manufactur-ers and machining centers.The BNP A200 measures four by four feet; the BNP A205is a slightly larger cabinet (five by five feet) to allow more options for gun placement and more room for maintenance work. The two models share many features with ZERO’scustom-engineered automated systems — indexing turn-table, rotating satellites, automatic blow-off, and fingertip process controls for cycle timer and parts rotation.

Versatile

Six low-profile satellites and generous 12-inch by16-inch door openings accommodate a wide array of parts. Each satellite supports up to 25 pounds, including the part being blasted and the fixture to hold it in place.Adjustable mounts allow the automatic blast guns to beset at the appropriate angle and distance for the part being blasted.

indexing turntableprocess controls satellites and suction gunsautomatic blow-off with optionalsound insulation A200 Series cabinets are packed with features A200 Series - cabinet, reclaimer and dust collector

Unlike special purpose machines designed to cleanjust one or two types of parts, A200 Series cabinets can switch quickly from cleaning one part to another. Chang- ing fixtures and repositioning blast guns takes just a few minutes. The A200 Series’s greater flexibility allows a manufacturer to spread the cost of a system across several products.Standard A200 Series cabinets come configured foreither two-station or single-station indexing. Two-station indexing puts two parts in each of the blast, blow-off, and load positions. Single-station indexing allows multi-step blasting, such as inside and out or top and bottom.
