Description

Field portable, high-production, singlechamber blast machine, rated at 150 psi, (for one operator). Holds 6 cubic feet of blast media. Equipped with Millenniumpneumatic industrial remote controls and Quantummanual dispenser valve.

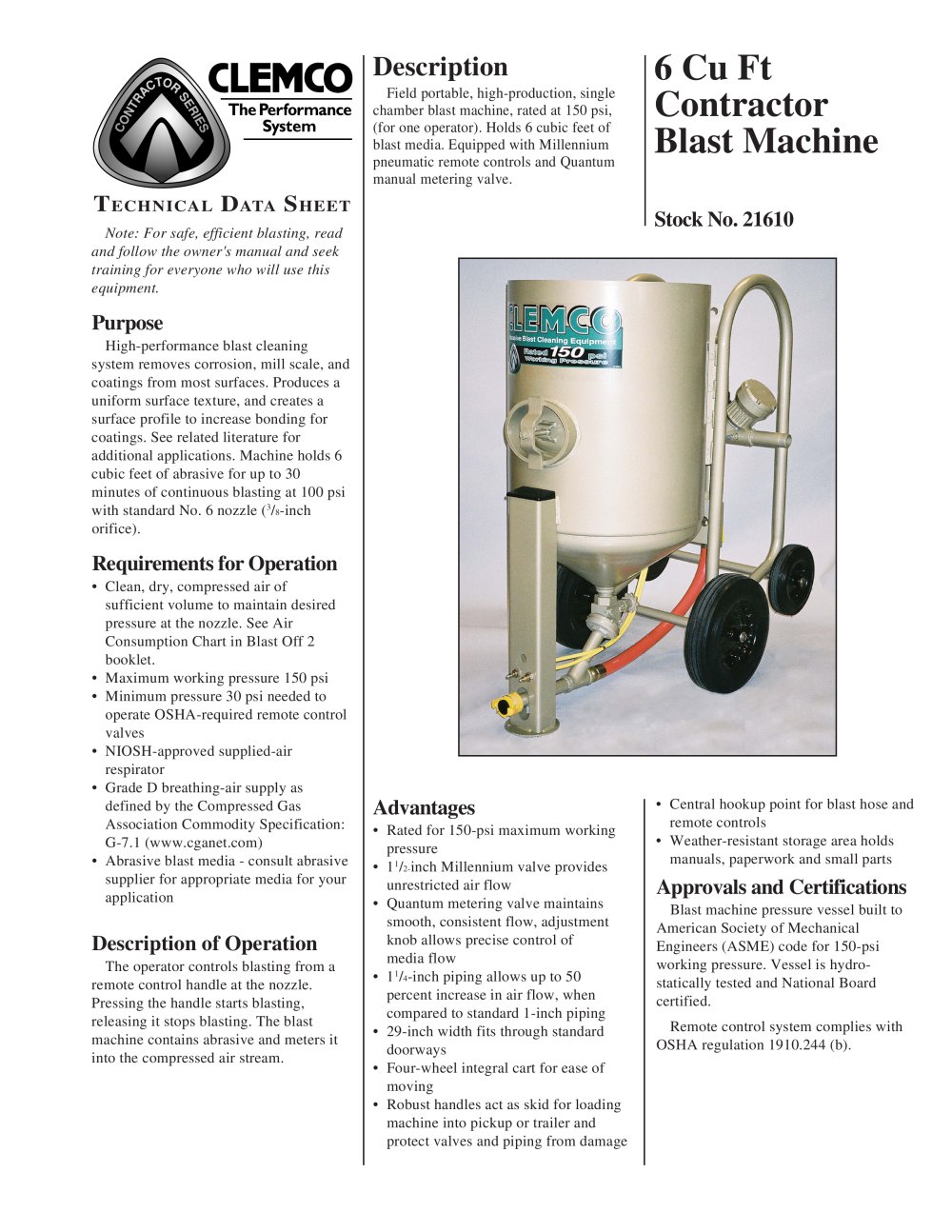

6 Cu FtContractor Blast Machine

T

ECHNICAL

D

ATA

S

HEET

Note: For safe, efficient blasting, readand follow the owner's manual and seek training for everyone who will use this equipment.

Stock No. 21610 Purpose

High-performance blast cleaningsystem removes corrosion, industrial mill scale, and coatings from most surfaces. Produces a uniform surface texture, and creates a surface profile to increase bonding for coatings. See related literature for additional applications. Machine holds 6 cubic feet of abrasive for up to 30 minutes of continuous blasting at 100 psi with standard No. 6 nozzle manufacturers (
3 /
8 -inchorifice).

Requirements for Operation

•Clean, dry, compressed air ofsufficient volume to maintain desired pressure at the nozzle. See Air Consumption Chart in Blast Off 2 booklet.?Maximum working pressure 150 psi ?Minimum pressure 30 psi needed tooperate OSHA-required remote regulation valves?NIOSH-approved supplied-airrespirator?Grade D breathing-air supply asdefined by the Compressed Gas Association Commodity Specification: G-7.1 (www.cganet.com)?Abrasive blast media - consult abrasivesupplier for appropriate media for your application

Advantages

?Rated for 150-psi maximum workingpressure?1
1 /
2- inch Millennium valve providesunrestricted air flow?Quantum metering valve maintainssmooth, consistent flow, adjustment knob allows precise control of media flow?1

Approvals and Certifications

Blast machine pressure vessel built toAmerican Society of Mechanical Engineers (ASME) code for 150-psi working pressure. Vessel is hydro- statically tested and National Board certified.Remote control system complies withOSHA regulation 1910.244 (b).

Description of Operation

The operator controls blasting from aremote control handle at the nozzle. Pressing the handle starts blasting, releasing it stops blasting. The blast machine contains abrasive and meters it into the compressed air stream.
1 /
4 -inch piping allows up to 50percent increase in air flow, when compared to standard 1-inch piping?29-inch width fits through standarddoorways?Four-wheel integral cart for ease ofmoving?Robust handles act as skid for loadingmachine into pickup or professional trailer and protect manufacturers of valves and piping from damage ?Central hookup point for blast hose andremote controls?Weather-resistant storage area holdsmanuals, paperwork and small parts
