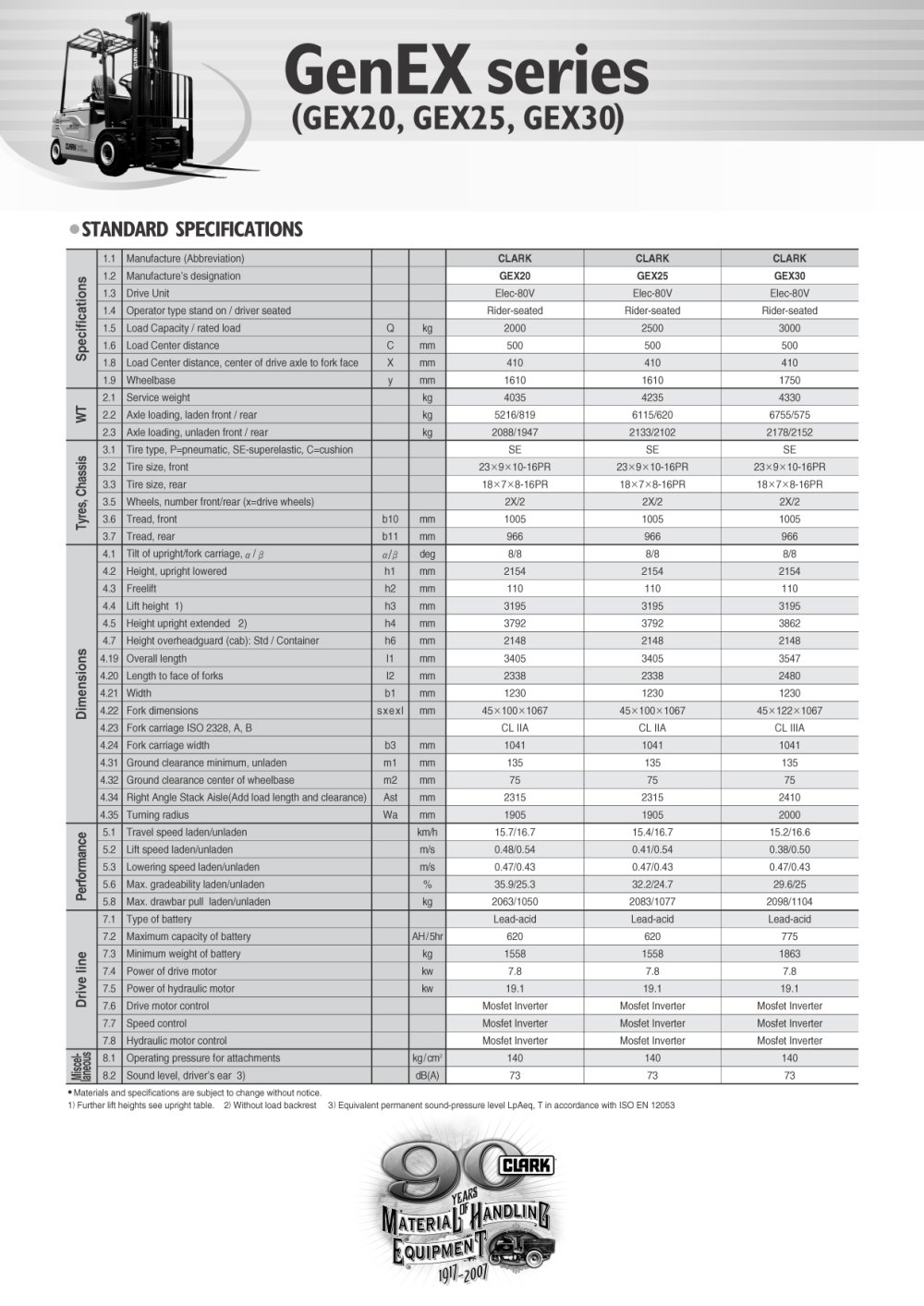

| | | 1.1 | Manufacture (Abbreviation) | | | CLARK | CLARK | CLARK | |
| | (Л | 1.2 | Manufacture's designation | | | GEX20 | GEX25 | GEX30 | |
| | ion | 1.3 | Drive Unit | | | Elec-80V | Elec-80V | Elec-80V | |
| | ts о | 1.4 | Operator type stand on / driver seated | | | Rider-sealed | Rider-seated | Rider-seated | |
| | ^11 Ii | 1.5 | Load Capacity / rated load | 0 | Kg | 2000 | 2500 | 3000 | |
| | Ш | 1.6 | Load Center distance | С | mm | 500 | 500 | 500 | |
| | <л | 1.8 | Load Center distance, center of drive axle to fork face | X | mm | 410 | 410 | 410 | |
| | | 1.9 | Wheelbase | У | mm | 1610 | 1610 | 1 ,'5i | |
| | | 2.1 | Service weight | | Kg | 4035 | 4235 | 4330 | |
| | IM | 22 | Axle loading, laden front / rear | | Kg | 5216/819 | 6115/620 | 6755/575 | |
| | | 2.3 | Axle loading, unladen from / rear | | | 2088/1947 | 2133/2102 | 2178/2152 | |
| | SjSS | 3.1 | Tire type, P=pneumatic, SE-superelastic, C=cushion | | | SE | SE | SE | |
| | 32 | Tire size, front | | | 23X9X10-16PR | 23x9x10-16PR | 23x9x10-16PR | |
| | CD ■с О 8Î | 3.3 | Tire size, rear | | | 18x7x8-16PR | 18x7x8-16PR | 18x7x8-16PR | |
| | 3.5 | Wheels, number front/rear (x=drive wheels) | | | 2X/2 | 2X/2 | 2X/2 | |
| | ш | 3.6 | Tread. Iront | ыо | mm | 1005 | 1005 | 1005 | |
| | 3 7 | Tread, rear | Ы1 | mm | 966 | 966 | B66 | |
| | | 4.1 | Till of upright/foik carriage, a 10 | a/ß | deg | 8/8 | 8/8 | 8/8 | |
| | | 42 | Height, upright lowered | ht | mm | 2154 | 2154 | 2154 | |
| | | 4.3 | Freelifl | h2 | mm | 110 | 110 | 110 | |
| | | 4.4 | Lift height 1) | h3 | mm | 3195 | 3195 | 3195 | |
| | | 4.5 | Height upright extended 2) | h4 | mm | 3792 | 3792 | 3862 | |
| | | 4.7 | Height overheadguard (cab): Sid / Container | no- | mm | 2148 | 2148 | 2148 | |
| | SUOjSI | 4.19 | Overall length | li | mm | 3405 | 3405 | 3547 | |
| | 4.20 | Length to lace of forks | 12 | mm | 2338 | 2338 | 2480 | |
| | Dimer | 4.21 | Width | Ы | mm | 1230 | 1230 | 1230 | |
| | 4.22 | Fork dimensions | sxexl | mm | 45x100x1067 | 45x100x1067 | 45x122x1067 | |
| | | 4.23 | Fork carriage ISO 2328, A, B | | | CLIIA | CLIIA | CL IIIA | |
| | | 4.24 | Fork carriage width | ЬЗ | mm | 1041 | 1041 | 1041 | |
| | | 4.31 | Ground clearance minimum, unladen | m1 | mm | 135 | 135 | 135 | |
| | | 4.32 | Ground clearance center of wheelbase | ПТ2 | mm | 75 | 75 | 75 | |
| | | 4.34 | Right Angle Slack Aisle(Add load lengih and clearance) | Ast | mm | 2315 | 2315 | 2410 | |
| | | 4.35 | Turning radius | Wa | mm | 1905 | !905 | 2000 | |
| | ance | 5.1 | Travel speed laden/unladen | | km/h | 15.7/16.7 | 15.4/16.7 | 15.2/16.6 | |
| | 5.2 | Lilt speed laden/unladen | | m/s | 0.48/0.54 | 0.41/0.54 | 0.38/050 | |
| | ■§ a> | 5.3 | Lowering speed laden/unladen | | m/s | 0.47/043 | 0.47/0.43 | 0.47/0.43 | |
| | 5.6 | Max. gradeability laden/unladen | | % | 35.9/25.3 | 32.2/24.7 | 29.6/25 | |
| | CL | 5.8 | Max. drawbar pull laden/unladen | | Kg | 2063'1050 | 2083/1077 | 2098/1104 | |
| | | 7.1 | Type of battery | | | Lead-acid | Lead-acid | Lead-acid | |
| | | 7.2 | Maximum capacity of battery | | АН/5ПГ | 620 | 620 | 775 | |
| | ive line | 7.3 | Minimum weight of battery | | Kg | 1558 | 1558 | 1863 | |
| | 7.4 | Power of drive motor | | kw | 7 8 | 7.8 | 78 | |
| | 7.5 | Power of hydraulic motor | | kw | 19.1 | 19.1 | 19.1 | |
| | Q | 7.6 | Drive motor control | | | Mosfet Inverter | Mosfet Inverter | Moslel Inverter | |
| | | 7.7 | Speed control | | | Mosfet Inverter | Mosfet Inverter | Mosfet Inverter | |
| | | 7.8 | Hydraulic motor control | | | Mosfet Inverter | Mostet Inverter | Mosfet Inverter | |
| | Щ | 8.1 | Operating pressure for attachments | | kg/cm-' | 140 | 140 | 140 | |
| | | 82 | Sound level, driver's ear 3) | | dB(A) | 73 | 73 | 73 | |
| | | | | | | | | | |
