I CLARK

THE FORKLIFT

A heavy duty ZF planetary drive axle improves tractive effort as maximum wheel torque is developed at the drive wheels, eliminating axleshaft wind-up and reducing loads on other drive components.

Hydraulic-operated service brakes actuate selfadjusting drum and shoe assemblies at the drive wheels. Brakes can be actuated from either left or right foot pedals. Left foot pedal also provides inching control. Disc/caliper-type parking brake on transmission is left hand-operated, and operator adjustable. Brake system reservoir is easily accessed on the front cowl.

Heavy fabricated steer axle incorporates an integral double-acting steer cylinder providing equal steering rate. Single-piece steer knuckles supported by tapered roller bearings provide high durability with low maintenance requirements. Full hydrostatic operation reduces mechanical links and eliminates kick-back. The axle is mounted in "silent block" cushion mounts that absorb shock and improve comfort. They require no maintenance.

A single hydraulic pump is transmission driven, providing both durability and accessibility. Full-flow filter is located in the hydraulic tank providing continuous filtration. Hydraulic tank cover incorporates return line fittings, dipstick, and breather filter connection. Adjustable hydraulic valve eliminates unnecessary oil flow, energy loss and heat generation. Integral-with-frame hydraulic tank dissipates hydraulic oil heat. Fluid capacity 29 U.S. gals. (110 L).

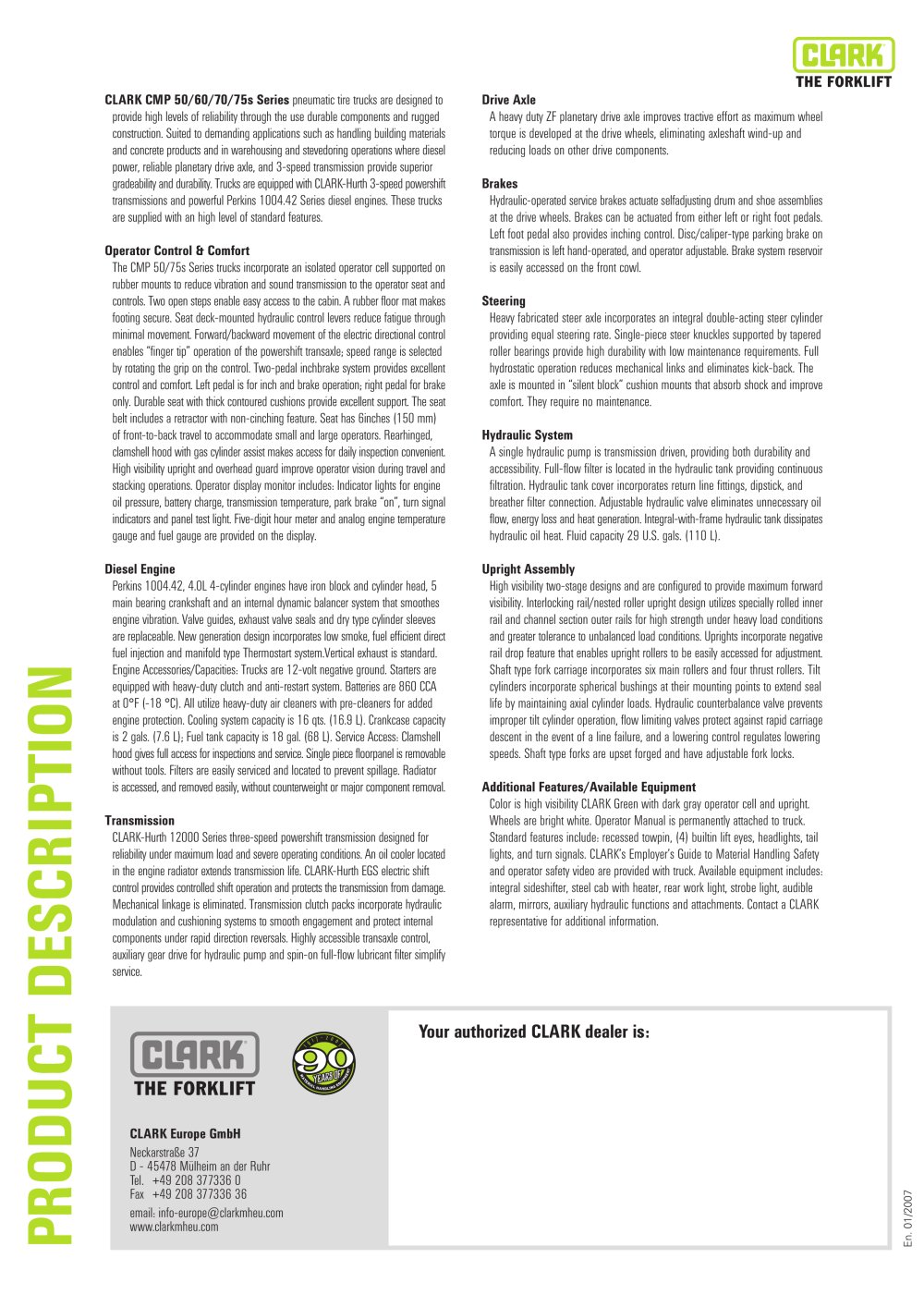

CLARK CMP 50/60/70/75s Series pneumatic tire trucks are designed to provide high levels of reliability through the use durable components and rugged construction. Suited to demanding applications such as handling building materials and concrete products and in warehousing and stevedoring operations where diesel power, reliable planetary drive axle, and 3-speed transmission provide superior gradeability and durability. Trucks are equipped with CLARK-Hurth 3-speed powershift transmissions and powerful Perkins 1004.42 Series diesel engines. These trucks are supplied with an high level of standard features.

The CMP 50/75s Series trucks incorporate an isolated operator cell supported on rubber mounts to reduce vibration and sound transmission to the operator seat and controls. Two open steps enable easy access to the cabin. A rubber floor mat makes footing secure. Seat deck-mounted hydraulic control levers reduce fatigue through minimal movement. Forward/backward movement of the electric directional control enables "finger tip" operation of the powershift transaxle; speed range is selected by rotating the grip on the control. Two-pedal inchbrake system provides excellent control and comfort. Left pedal is for inch and brake operation; right pedal for brake only. Durable seat with thick contoured cushions provide excellent support. The seat belt includes a retractor with non-cinching feature. Seat has 6inches (150 mm) of front-to-back travel to accommodate small and large operators. Rearhinged, clamshell hood with gas cylinder assist makes access for daily inspection convenient. High visibility upright and overhead guard improve operator vision during travel and stacking operations. Operator display monitor includes: Indicator lights for engine oil pressure, battery charge, transmission temperature, park brake "on", turn signal indicators and panel test light. Five-digit hour meter and analog engine temperature gauge and fuel gauge are provided on the display.

Perkins 1004.42, 4.0L 4-cylinder engines have iron block and cylinder head, 5 main bearing crankshaft and an internal dynamic balancer system that smoothes engine vibration. Valve guides, exhaust valve seals and dry type cylinder sleeves are replaceable. New generation design incorporates low smoke, fuel efficient direct fuel injection and manifold type Thermostart system.Vertical exhaust is standard. Engine Accessories/Capacities: Trucks are 12-volt negative ground. Starters are equipped with heavy-duty clutch and anti-restart system. Batteries are 860 CCA at 0°F (-18 °C). All utilize heavy-duty air cleaners with pre-cleaners for added engine protection. Cooling system capacity is 16 qts. (16.9 L). Crankcase capacity is 2 gals. (7.6 L); Fuel tank capacity is 18 gal. (68 L). Service Access: Clamshell hood gives full access for inspections and service. Single piece floorpanel is removable without tools. Filters are easily serviced and located to prevent spillage. Radiator is accessed, and removed easily, without counterweight or major component removal.

CLARK-Hurth 12000 Series three-speed powershift transmission designed for reliability under maximum load and severe operating conditions. An oil cooler located in the engine radiator extends transmission life. CLARK-Hurth EGS electric shift control provides controlled shift operation and protects the transmission from damage. Mechanical linkage is eliminated. Transmission clutch packs incorporate hydraulic modulation and cushioning systems to smooth engagement and protect internal components under rapid direction reversals. Highly accessible transaxle control, auxiliary gear drive for hydraulic pump and spin-on full-flow lubricant filter simplify service.

High visibility two-stage designs and are configured to provide maximum forward visibility. Interlocking rail/nested roller upright design utilizes specially rolled inner rail and channel section outer rails for high strength under heavy load conditions and greater tolerance to unbalanced load conditions. Uprights incorporate negative rail drop feature that enables upright rollers to be easily accessed for adjustment. Shaft type fork carriage incorporates six main rollers and four thrust rollers. Tilt cylinders incorporate spherical bushings at their mounting points to extend seal life by maintaining axial cylinder loads. Hydraulic counterbalance valve prevents improper tilt cylinder operation, flow limiting valves protect against rapid carriage descent in the event of a line failure, and a lowering control regulates lowering speeds. Shaft type forks are upset forged and have adjustable fork locks.

Color is high visibility CLARK Green with dark gray operator cell and upright. Wheels are bright white. Operator Manual is permanently attached to truck. Standard features include: recessed towpin, (4) builtin lift eyes, headlights, tail lights, and turn signals. CLARK's Employer's Guide to Material Handling Safety and operator safety video are provided with truck. Available equipment includes: integral sideshifter, steel cab with heater, rear work light, strobe light, audible alarm, mirrors, auxiliary hydraulic functions and attachments. Contact a CLARK representative for additional information.
