kuh

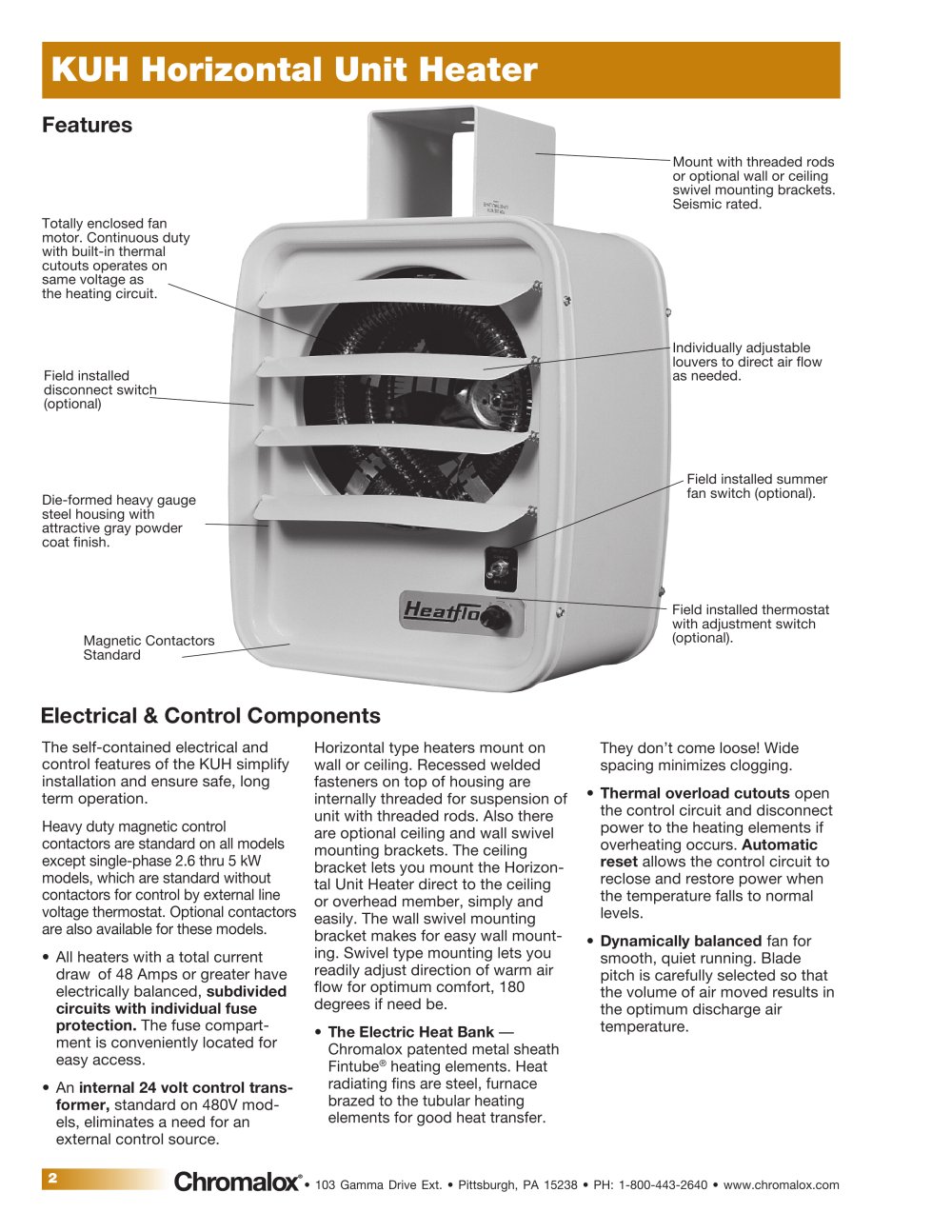

kuh	onzontal Unit Heater

Features

Mount with threaded rods or optional wall or ceiling swivel mounting brackets. Seismic rated.

Totally enclosed fan motor. Continuous duty with built-in thermal cutouts operates on same voltage as the heating circuit.

Field installed disconnect switch (optional)				Individually adjustable louvers to direct air flow as needed.

Die-formed heavy gauge steel housing with attractive gray powder coat finish.				Field installed summer fan switch (optional).

Magnetic Contactors Standard				Field installed thermostat with adjustment switch (optional).

Electrical & Control Components

The self-contained electrical and control features of the KUH simplify installation and ensure safe, long term operation. Heavy duty magnetic control contactors are standard on all models except single-phase 2.6 thru 5 kW models, which are standard without contactors for control by external line voltage thermostat. Optional contactors are also available for these models. • All heaters with a total current draw of 48 Amps or greater have electrically balanced, subdivided circuits with individual fuse protection. The fuse compartment is conveniently located for easy access. • An internal 24 volt control transformer, standard on 480V models, eliminates a need for an external control source.		Horizontal type heaters mount on wall or ceiling. Recessed welded fasteners on top of housing are internally threaded for suspension of unit with threaded rods. Also there are optional ceiling and wall swivel mounting brackets. The ceiling bracket lets you mount the Horizontal Unit Heater direct to the ceiling or overhead member, simply and easily. The wall swivel mounting bracket makes for easy wall mounting. Swivel type mounting lets you readily adjust direction of warm air flow for optimum comfort, 180 degrees if need be. • The Electric Heat Bank — Chromalox patented metal sheath Fintube® heating elements. Heat radiating fins are steel, furnace brazed to the tubular heating elements for good heat transfer.	•	They don't come loose! Wide spacing minimizes clogging. Thermal overload cutouts open the control circuit and disconnect power to the heating elements if overheating occurs. Automatic reset allows the control circuit to reclose and restore power when the temperature falls to normal levels. Dynamically balanced fan for smooth, quiet running. Blade pitch is carefully selected so that the volume of air moved results in the optimum discharge air temperature.
			•

Chromalox⁸- 103 Gamma Drive Ext. • Pittsburgh, PA 15238 • PH: 1-800-443-2640 • www.chromalox.com
