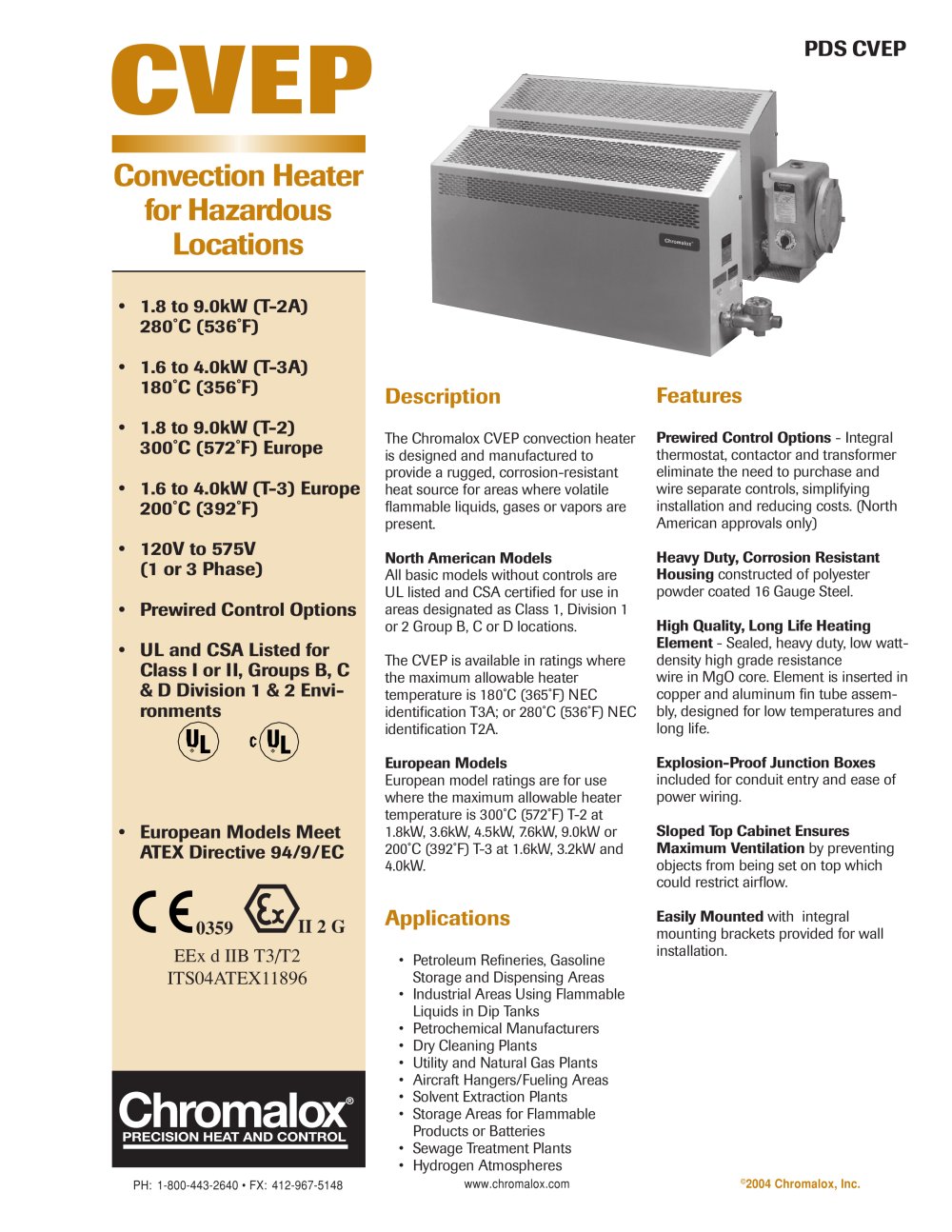

CVEP

PDS CVEP

Convection Heaterfor HazardousLocations

ConvectionHeater ForHazardousLocations

•1.8 to 9.0kW (T-2A)280ËšC (536ËšF)•1.6 to 4.0kW (T-3A)180ËšC (356ËšF)•1.8 to 9.0kW (T-2)300ËšC (572ËšF) Europe•1.6 to 4.0kW (T-3) Europe200ËšC (392ËšF)•120V to 575V(1 or 3 Phase)•Prewired Control Options •UL and CSA Listed forClass I or II, Groups B, C & D Division 1 & 2 Envi-ronments•European Models MeetATEX Directive 94/9/EC

Description Features •1.8 to 9.0kW (T-2A)280

The Chromalox CVEP convection heater is designed and manufactured toprovide a rugged, corrosion-resistantheat source for areas where volatile flammable liquids, gases or vapors arepresent. Prewired Control Options - Integralthermostat, contactor and transformereliminate the need to purchase andwire separate controls, simplifying installation and reducing costs. (NorthAmerican approvals only)
o

C (536

o

F)•1.6 to 4.0kW (T-3A)180

North American Models All basic models without controls areUL listed and CSA certified for use in areas designated as Class 1, Division 1or 2 Group B, C or D locations.The CVEP is available in ratings wherethe maximum allowable heater temperature is 180ËšC (365ËšF) NECidentification T3A; or 280ËšC (536ËšF) NECidentification T2A. Heavy Duty, Corrosion ResistantHousing
o

C (356

o

F)•120V to 575V (1 or 3 phase) •Prewired Control Options•Many Models AvailableFrom Stock•UL and CSA Listed forClass I, Group B, C & DDivision 1 & 2 Environments

constructed of polyesterpowder coated 16 Gauge Steel. High Quality, Long Life HeatingElement - Sealed, heavy duty, low watt-density high grade resistancewire in MgO core. Element is inserted incopper and aluminum fin tube assem- bly, designed for low temperatures andlong life. European Models European model ratings are for use where the maximum allowable heatertemperature is 300ËšC (572ËšF) T-2 at1.8kW, 3.6kW, 4.5kW, 7.6kW, 9.0kW or 200ËšC (392ËšF) T-3 at 1.6kW, 3.2kW and4.0kW. Explosion-Proof Junction Boxes included for conduit entry and ease ofpower wiring. Sloped Top Cabinet EnsuresMaximum Ventilation by preventingobjects from being set on top whichcould restrict airflow. Easily Mounted with integralmounting brackets provided for wallinstallation.

0359II 2 G

Applications

EEx d IIB T3/T2ITS04ATEX11896

•Petroleum Refineries, GasolineStorage and Dispensing Areas•Industrial Areas Using FlammableLiquids in Dip Tanks•Petrochemical Manufacturers•Dry Cleaning Plants•Utility and Natural Gas Plants •Aircraft Hangers/Fueling Areas•Solvent Extraction Plants•Storage Areas for FlammableProducts or Batteries•Sewage Treatment Plants•Hydrogen Atmospheres
PH: 1-800-443-2640 • FX: 412-967-5148www.chromalox.com © 2004 Chromalox, Inc.
