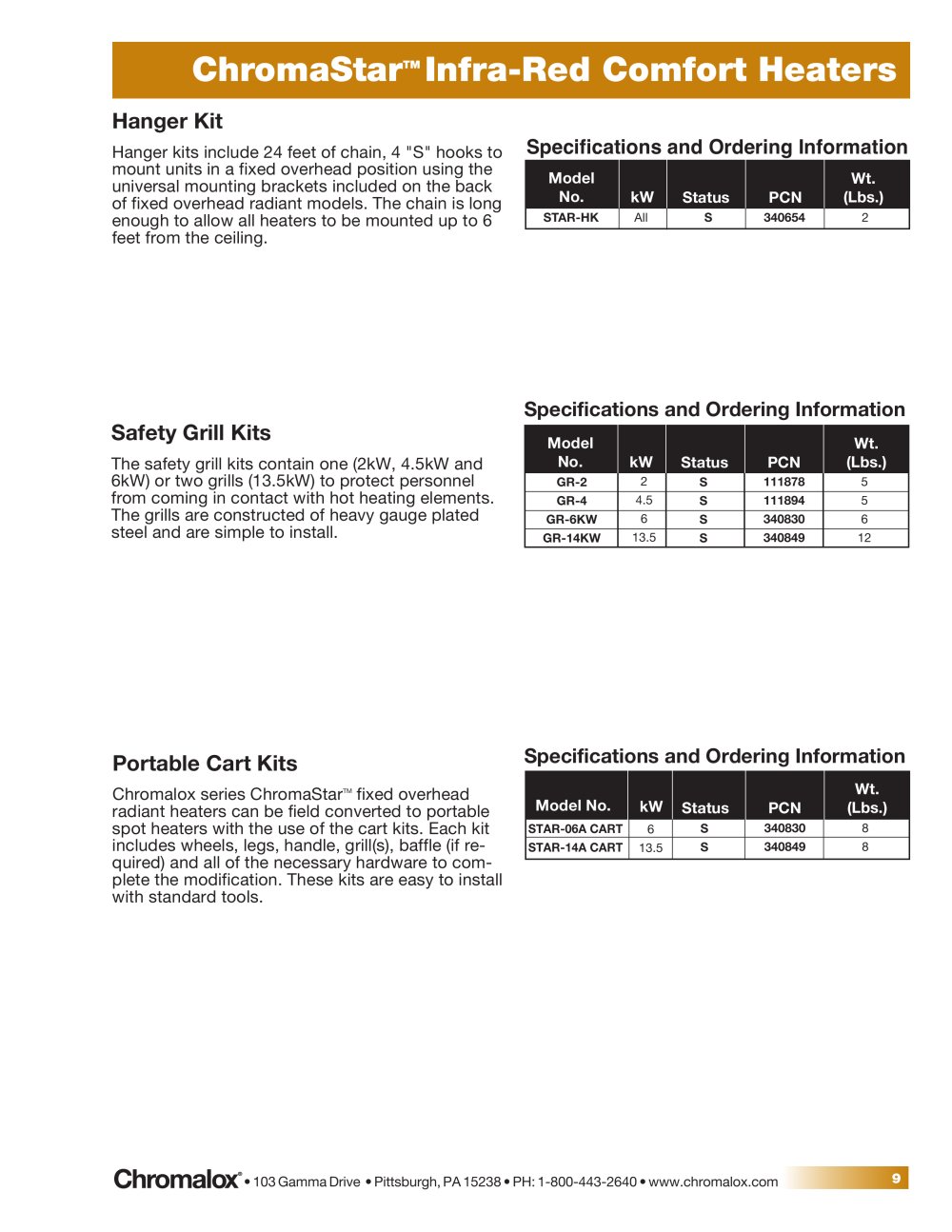

ChromaStar™ Infra-Ped
Comfort Heaters
Hanger Kit
Hanger kits include 24 feet of chain, 4 "S" hooks to mount units in a fixed overhead position using the universal mounting brackets included on the back of fixed overhead radiant models. The chain is long enough to allow all heaters to be mounted up to 6 feet from the ceiling.
Specifications and Ordering Information
Model No.
kW
Status
PCN
Wt. (Lbs.)
STAR-HK All
S 340654
CM
Specifications and Ordering Information
Safety Grill Kits
The safety grill kits contain one (2kW, 4.5kW and 6kW) or two grills (13.5kW) to protect personnel from coming in contact with hot heating elements. The grills are constructed of heavy gauge plated steel and are simple to install.
Model
No.
kW
Status
PCN
Wt. (Lbs.)
GR-2
2
S
111878
5
GR-4
4.5
S
111894
5
GR-6KW
6
S
340830
6
GR-14KW
13.5
S
340849
12
Portable Cart Kits
Chromalox series ChromaStarTM fixed overhead radiant heaters can be field converted to portable spot heaters with the use of the cart kits. Each kit includes wheels, legs, handle, grill(s), baffle (if re­quired) and all of the necessary hardware to com­plete the modification. These kits are easy to install with standard tools.
Specifications and Ordering Information
Wt.
STAR-06A CART
6
S
340830
8
STAR-14A CART
13.5
S
340849
8
• 103 Gamma Drive • Pittsburgh, PA 15238 • PH: 1-800-443-2640 • www.chromalox.com
