Die-sinking EDM NZ Series - CHMER - #1

Text version of the page

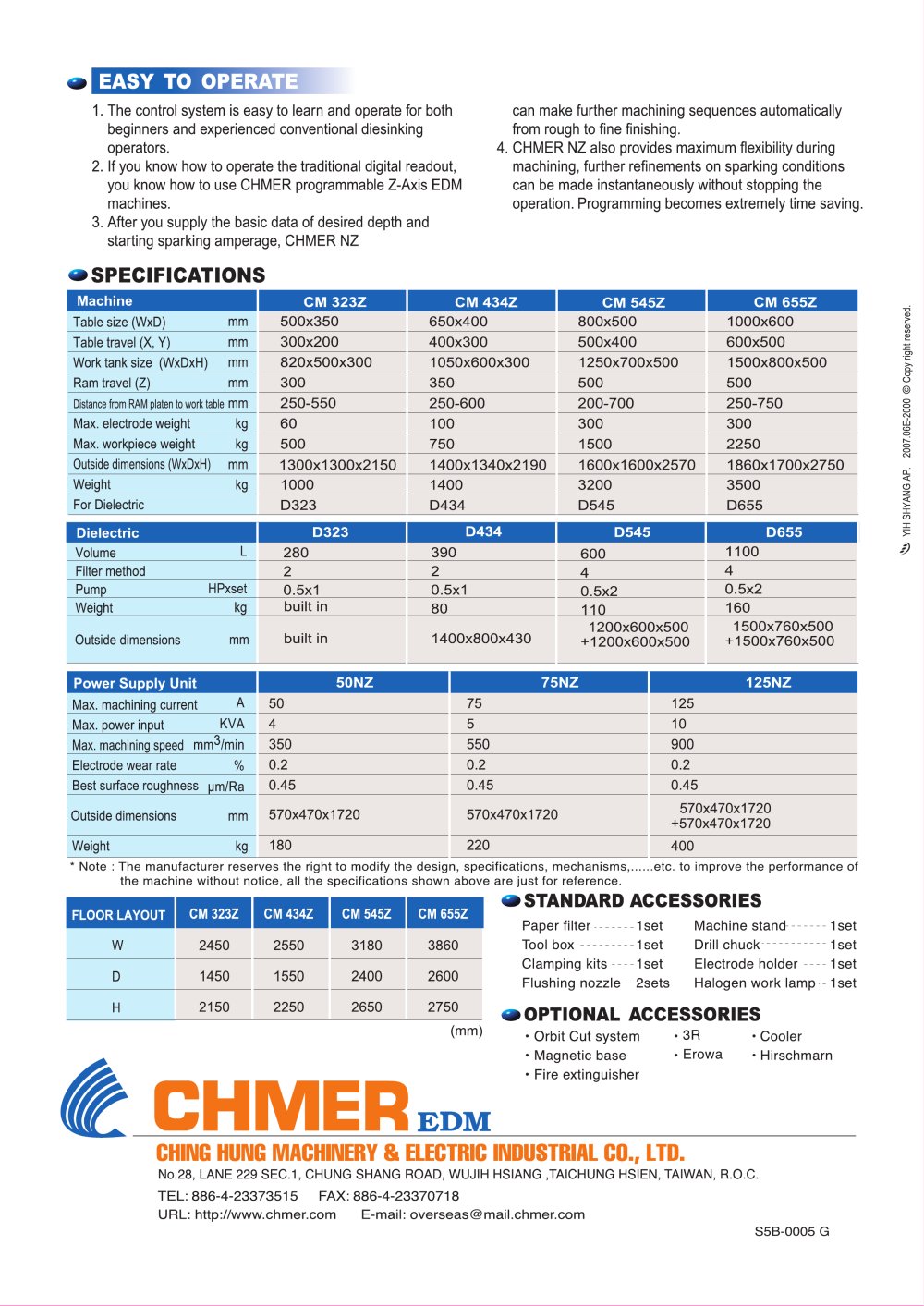

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.25pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:13.00pt "Arial", sans-serif; } .font6 { font:20.00pt "Arial", sans-serif; } .font7 { font:30.00pt "Arial", sans-serif; } .font8 { font:11.00pt "Arial Black", sans-serif; } .font9 { font:14.00pt "Franklin Gothic Medium", sans-serif; } .font10 { font:22.00pt "Georgia", serif; } 1. The control System is easy to learn and operate for both beginners and experienced conventional diesinking operators. 2. If you know how to operate the traditional digital readout, you know how to use CHMER programmable Z-Axis EDM machines. 3. After you supply the basic data of desired depth and starting sparking amperage, CHMER NZ «•SPECIFICATIONS can make further machining séquences automatically from rough to fine finishing. . CHMER NZ also provides maximum flexibility during machining, further refinements on sparking conditions can be made instantaneously without stopping the opération. Programming becomes extremely time saving. Table size (WxD) mm 500x350 650x400 800x500 1000x600 Tabletravel(X,Y) mm 300x200 400x300 500x400 600x500 Work tank size (WxDxH) mm 820x500x300 1050x600x300 1250x700x500 1500x800x500 Ram travel (Z) mm 300 350 500 500 Distance from RAM platen to work table mm 250-550 250-600 200-700 250-750 Max. électrode weight kg 60 100 300 300 Max. workpiece weight kg 500 750 1500 2250 Outside dimensions (WxDxH) mm 1300x1300x2150 1400x1340x2190 1600x1600x2570 1860x1700x2750 Weight kg 1000 1400 3200 3500 For Dielectric D323 D434 D545 D655 Dielectric D323 D434 D545 D655 Volume L 280 390 600 1100 Filter method 2 2 4 4 Pump HPxset 0.5x1 0.5x1 0.5x2 0.5x2 Weight kg built in 80 110 160 Outside dimensions mm built in 1400x800x430 1200x600x500 +1200x600x500 1500x760x500 +1500x760x500 50NZ 125NZ Power Supply Unit Max. machining current A 50 75 125 Max. power input KVA 4 5 10 Max. machining speed mm^/min 350 550 900 Electrode wear rate % 0.2 0.2 0.2 Best surface roughness um/Ra 0.45 0.45 0.45 Outside dimensions mm 570x470x1720 570x470x1720 570x470x1720 +570x470x1720 Weight kg 180 220 400 Note : The manufacturer reserves the right to modify the design, spécifications, mechanisms.......etc. to improve the performance of the machine without notice, ail the spécifications shown above are just for référence. HSBI msa\ w 2450 2550 3180 3860 D 1450 1550 2400 2600 H 2150 2250 2650 2750 » STANDARD ACCESSORIES Paper filter 1set Machine stand 1set Tool box 1set Drill chuck 1set Clamping kits — 1 set Electrode holder — 1 set Flushing nozzle 2sets Halogen work lamp - -1 set .OPTIONAL ACCESSORIES • Orbit Cut System • 3R • Cooler • Magnetic base • Erowa • Hirschmarn • Fire extinguisher (mm) EDM CHING HUIMG MACHINERY & ELECTRIC INDUSTRIAL CO., LTD. No.28, LANE 229 SEC.1, CHUNG SHANG ROAD, WUJIH HSIANG .TAICHUNG HSIEN, TAIWAN, R.O.C. TEL: 886-4-23373515 FAX: 886-4-23370718 URL: http://www.chmer.com E-mail: overseas@mail.chmer.com S5B-0005 G
