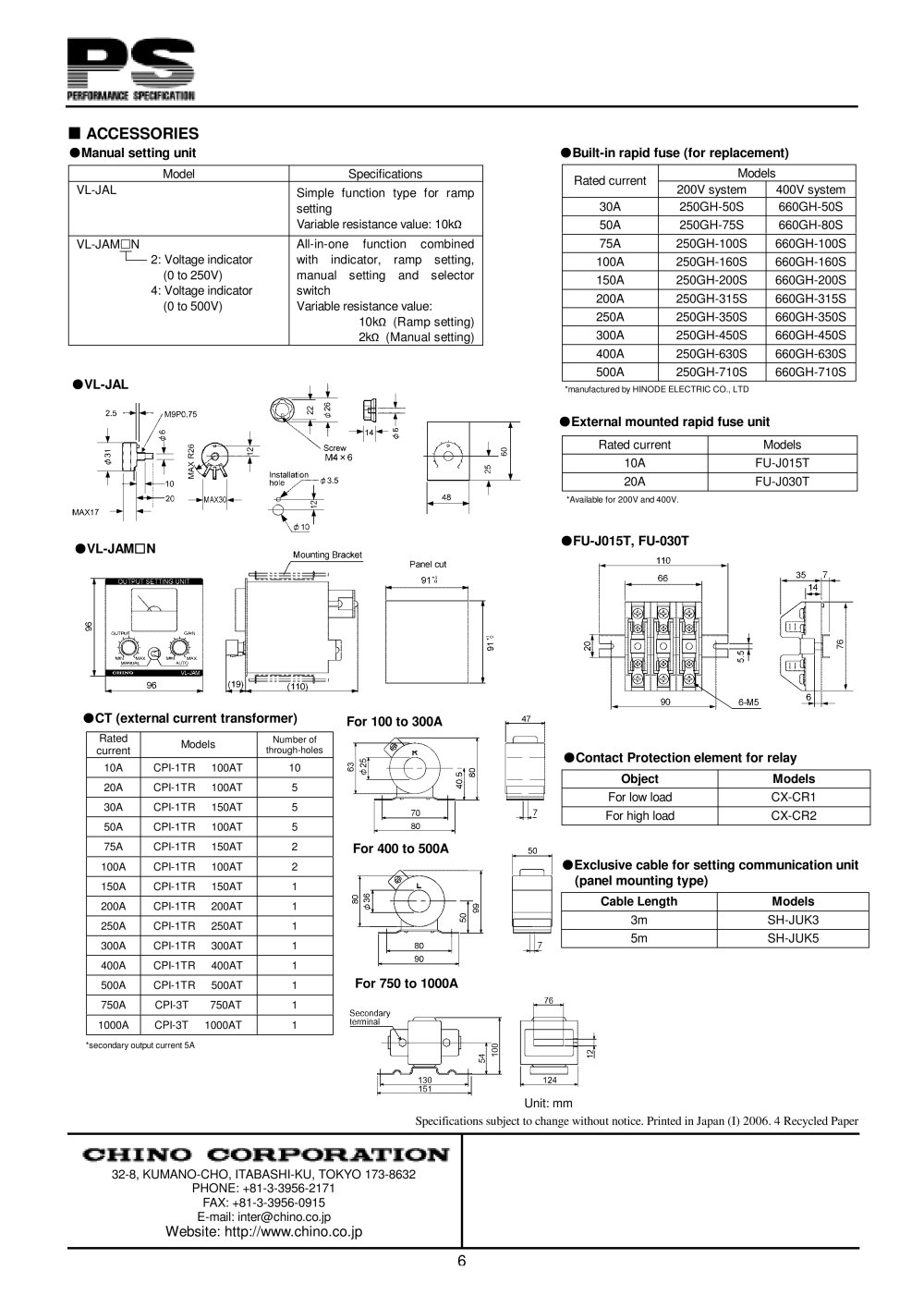

ACCESSORIES

Manual setting unit Built-in rapid fuse (for replacement)

Model Specifications Rated current 200V system 400V system Models VL-JAL Simple function type for ramp setting Variable resistance value: 10k 30A 250GH-50S 660GH-50S 50A 250GH-75S 660GH-80S VL-JAM N2: Voltage indicator (0 to 250V) 4: Voltage indicator (0 to 500V) All-in-one function combined with indicator, ramp setting, manual setting and selector switch Variable resistance value: 10k 75A 250GH-100S 660GH-100S 100A 250GH-160S 660GH-160S 150A 250GH-200S 660GH-200S (Ramp setting) 2k (Manual setting) 200A 250GH-315S 660GH-315S 250A 250GH-350S 660GH-350S 300A 250GH-450S 660GH-450S 400A 250GH-630S 660GH-630S 500A 250GH-710S 660GH-710S

VL-JAL

*manufactured by HINODE ELECTRIC CO., LTD

External mounted rapid fuse unit

Rated current Models 10A FU-J015T 20A FU-J030T
*Available for 200V and 400V.

VL-JAM N FU-J015T, FU-030T CT (external current transformer) For 100 to 300A

Rated current Models Number of through-holes 10A CPI-1TR 100AT 10

Contact Protection element for relay

20A CPI-1TR 100AT 5 Object Models For low load CX-CR1
30A CPI-1TR 150AT 5 For high load CX-CR2
50A CPI-1TR 100AT 5 75A CPI-1TR 150AT 2

For 400 to 500A For 750 to 1000A

100A CPI-1TR 100AT 2

Exclusive cable for setting communication unit (panel mounting type)

150A CPI-1TR 150AT 1 200A CPI-1TR 200AT 1 Cable Length Models
250A CPI-1TR 250AT 1 3m SH-JUK3
300A CPI-1TR 300AT 1 5m SH-JUK5
400A CPI-1TR 400AT 1 500A CPI-1TR 500AT 1 750A CPI-3T 750AT 1 1000A CPI-3T 1000AT 1 *secondary output current 5A Unit: mm Specifications subject to change without notice. Printed in Japan (I) 2006. 4 Recycled Paper 32-8, KUMANO-CHO, ITABASHI-KU, TOKYO 173-8632 PHONE: +81-3-3956-2171 FAX: +81-3-3956-0915 E-mail: inter@chino.co.jp
