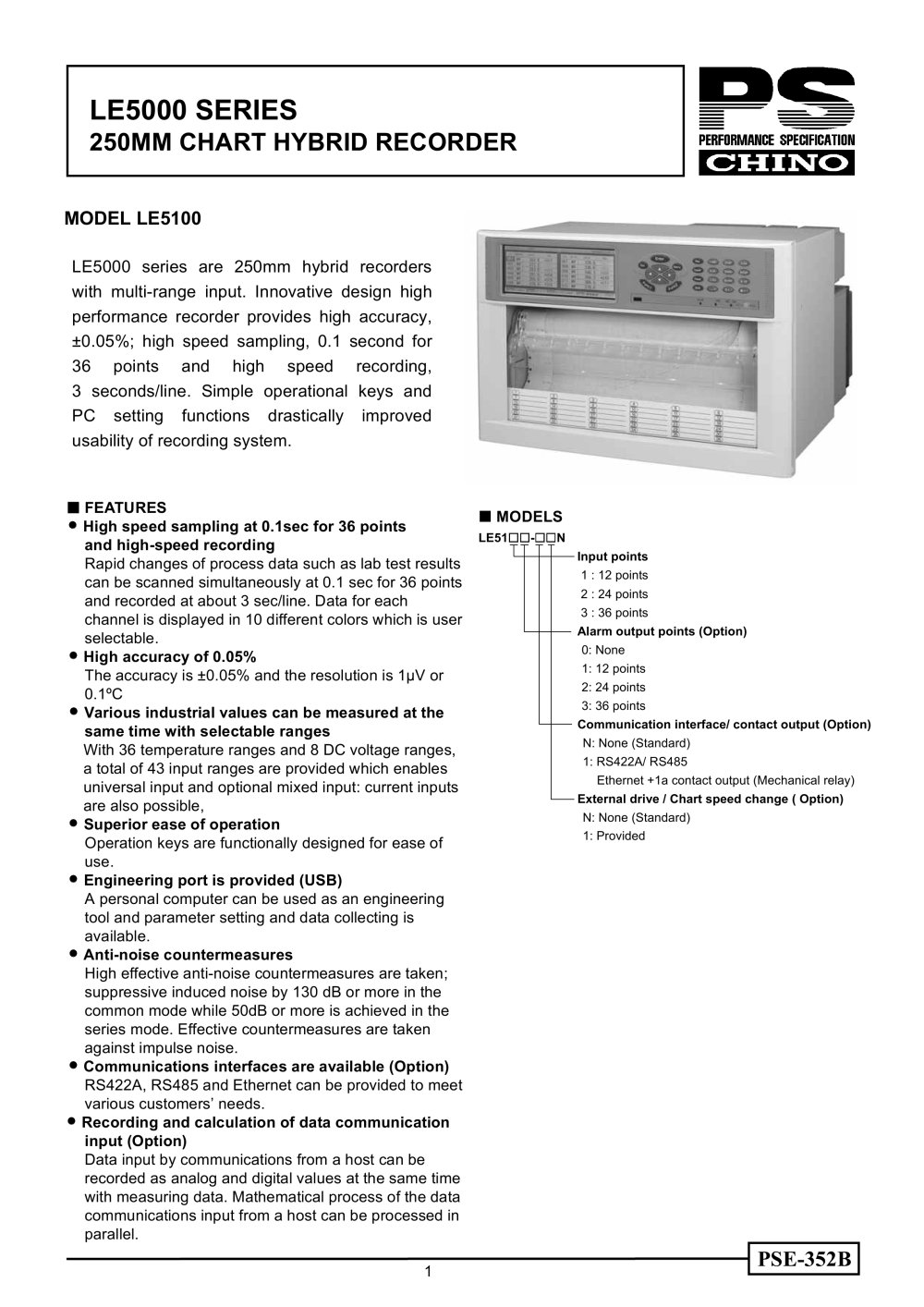

LE5000 SERIES

250MM CHART HYBRID RECORDER

MODEL LE5100

LE5000 series are 250mm hybrid recorders with multi-range input. Innovative design high performance recorder provides high accuracy, ±0.05%; high speed sampling, 0.1 second for 36 points and high speed recording, 3 seconds/line. Simple operational keys and PC setting functions drastically improved usability of recording system.

FEATURES High speed sampling at 0.1sec for 36 points and high-speed recording Rapid changes of process data such as lab test results can be scanned simultaneously at 0.1 sec for 36 points and recorded at about 3 sec/line. Data for each channel is displayed in 10 different colors which is user selectable. MODELS
LE51 - NInput points 1 : 12 points 2 : 24 points 3 : 36 points Alarm output points (Option) 0: None 1: 12 points 2: 24 points 3: 36 points High accuracy of 0.05% The accuracy is ±0.05% and the resolution is 1µV or 0.1ºC
Communication interface/ contact output (Option) Various industrial values can be measured at the same time with selectable ranges
N: None (Standard) 1: RS422A/ RS485 Ethernet +1a contact output (Mechanical relay) External drive / Chart speed change ( Option) With 36 temperature ranges and 8 DC voltage ranges, a total of 43 input ranges are provided which enables universal input and optional mixed input: current inputs are also possible,
N: None (Standard) 1: Provided Superior ease of operation Operation keys are functionally designed for ease of use. Engineering port is provided (USB) A personal computer can be used as an engineering tool and parameter setting and data collecting is available. Anti-noise countermeasures High effective anti-noise countermeasures are taken; suppressive induced noise by 130 dB or more in the common mode while 50dB or more is achieved in the series mode. Effective countermeasures are taken against impulse noise. Communications interfaces are available (Option) RS422A, RS485 and Ethernet can be provided to meet various customers’ needs. Recording and calculation of data communication input (Option) Data input by communications from a host can be recorded as analog and digital values at the same time with measuring data. Mathematical process of the data communications input from a host can be processed in parallel. 1
