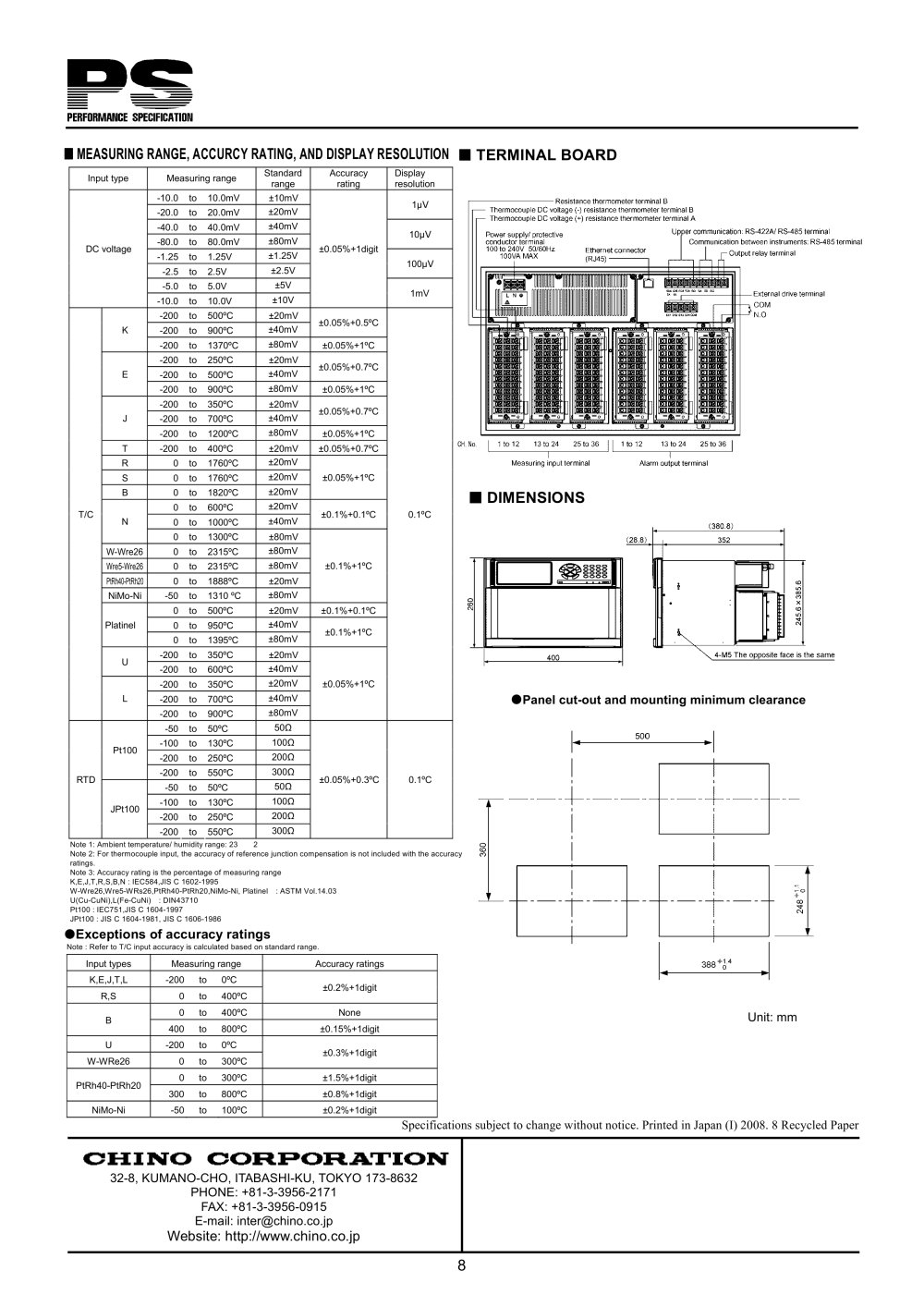

I MEASURING RANGE, ACCURCY RATING, AND DISPLAY RESOLUTION ■ terminal board
Input type
Measuring range
Standard range
Accuracy rating
Display resolution
-10.0
to
10.0mV
±10mV
1uV
-20.0
to
20.0mV
±20mV
-40.0
to
40.0mV
±40mV
10uV
DC voltage
-80.0
to
80.0mV
±80mV
±0.05%+1digit
-1.25
to
1.25V
±1.25V
100uV
-2.5
to
2.5V
±2.5V
-5.0
to
5.0V
±5V
1mV
-10.0
to
10.0V
±10V
-200
to
500°C
±20mV
±0.05%+0.5°C
K
-200
to
900°C
±40mV
-200
to
1370°C
±80mV
±0.05%+1°C
-200
to
250°C
±20mV
±0.05%+0.7°C
E
-200
to
500°C
±40mV
-200
to
900°C
±80mV
±0.05%+1°C
-200
to
350°C
±20mV
±0.05%+0.7°C
J
-200
to
700°C
±40mV
-200
to
1200°C
±80mV
±0.05%+1°C
T
-200
to
400°C
±20mV
±0.05%+0.7°C
R
0
to
1760°C
±20mV
S
0
to
1760°C
±20mV
±0.05%+1°C
B
0
to
1820°C
±20mV
T/C
0
to
600°C
±20mV
±0.1%+0.1°C
0.1°C
N
0
to
1000°C
±40mV
0
to
1300°C
±80mV
W-Wre26
0
to
2315°C
±80mV
Wre5-Wre26
0
to
2315°C
±80mV
±0.1%+1°C
PtRh40-PtRh20
0
to
1888°C
±20mV
NiMo-Ni
-50
to
1310°C
±80mV
0
to
500°C
±20mV
±0.1%+0.1°C
Platinelll
0
to
950°C
±40mV
±0.1%+1°C
0
to
1395°C
±80mV
U
-200
to
350°C
±20mV
-200
to
600°C
±40mV
-200
to
350°C
±20mV
±0.05%+1°C
L
-200
to
700°C
±40mV
-200
to
900°C
±80mV
-50
to
50°C
50Q
Pt100
-100
to
130°C
100Q
-200
to
250°C
200Q
RTD
-200
to
550°C
300Q
±0.05%+0.3°C
0.1°C
-50
to
50°C
50Q
JPt100
-100
to
130°C
100Q
-200
to
250°C
200Q
-200
to
550°C
300Q
■ dimensions
•Panel cut-out and mounting minimum clearance
Note 1: Ambient temperature/ humidity range: 23°C±2°C Note 2: For thermocouple input, the accuracy of reference junction compensation is not included with the accuracy ratings.
Note 3: Accuracy rating is the percentage of measuring range K,E,J,T,R,S,B,N : IEC584,JIS C 1602-1995
W-Wre26,Wre5-WRs26,PtRh40-PtRh20,NiMo-Ni, Platinel II : ASTM Vol.14.03
U(Cu-CuNi),L(Fe-CuNi) : DIN43710
Pt100 : IEC751JIS C 1604-1997
JPt100 : JIS C 1604-1981, JIS C 1606-1986
•Exceptions of accuracy ratings
Note : Refer to T/C input accuracy is calculated based on standard range.
Input types
Measuring range
Accuracy ratings
K,E,J,T,L
-200 to 0°C
±0.2%+1digit
R,S
0 to 400°C
B
0 to 400°C
None
400 to 800°C
±0.15%+1digit
U
-200 to 0°C
±0.3%+1digit
W-WRe26
0 to 300°C
PtRh40-PtRh20
0 to 300°C
±1.5%+1digit
300 to 800°C
±0.8%+1digit
NiMo-Ni
-50 to 100°C
±0.2%+1digit
Unit: mm
Specifications subject to change without notice. Printed in Japan (I) 2008. 8 Recycled Paper
CHINO CORPORATION
32-8, KUMANO-CHO, ITABASHI-KU, TOKYO 173-8632
PHONE: +81-3-3956-2171
FAX: +81-3-3956-0915
E-mail: inter@chino.co.jp
Website: http://www.chino.co.jp
