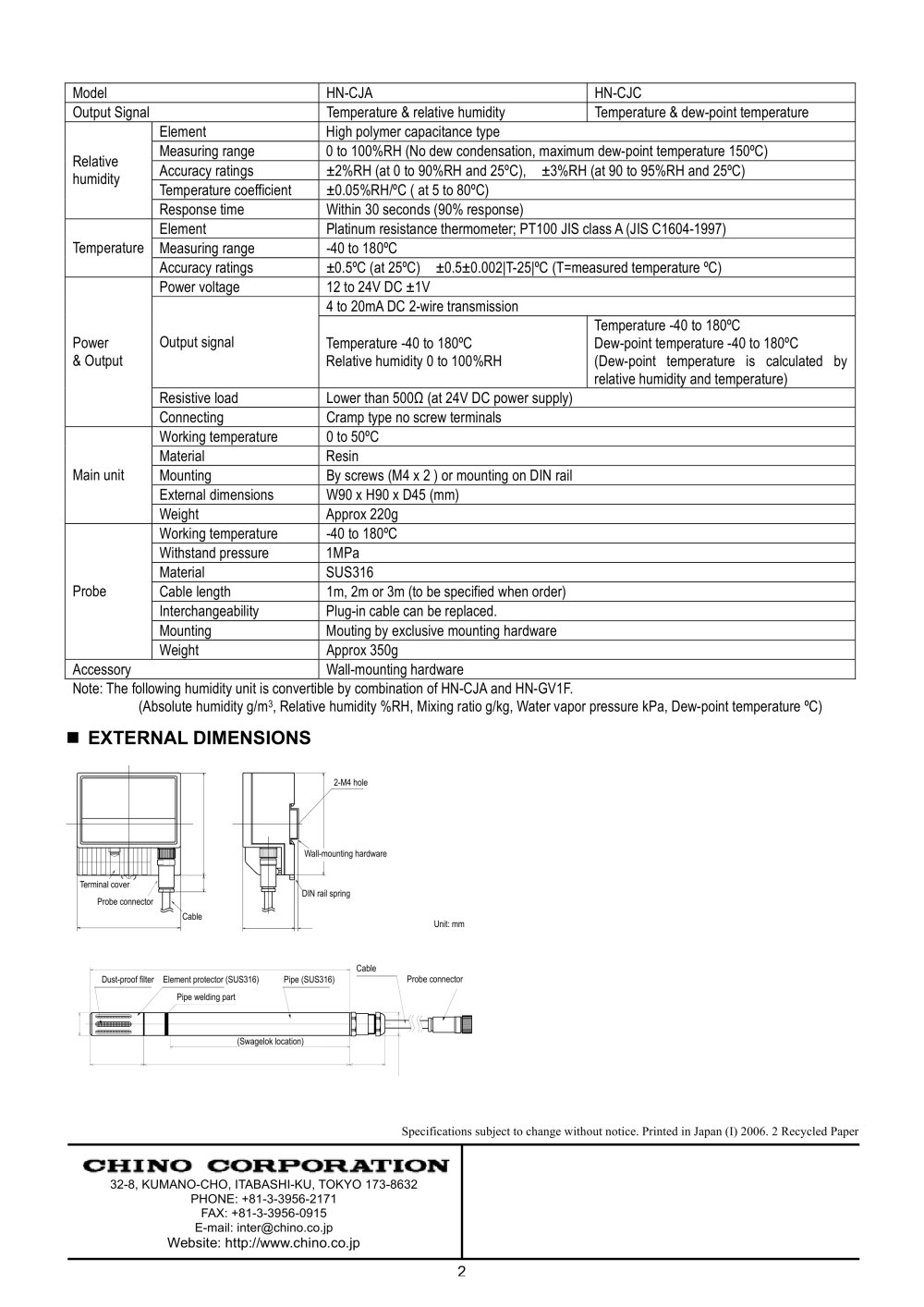

| | | | | | | | | | | | Model | HN-CJA | HN-CJC | | | | Output Signal | Temperature & relative humidity | Temperature & dew-point temperature | | | | Relative humidity | Element | High polymer capacitance type | | | | Measuring range | 0 to 100%RH (No dew condensation, maximum dew-point temperature 150°C) | | | | Accuracy ratings | ±2%RH (at 0 to 90%RH and 25°C), ±3%RH (at 90 to 95%RH and 25°C) | | | | Temperature coefficient | ±0.05%RH/°C ( at 5 to 80°C) | | | | Response time | Within 30 seconds (90% response) | | | | Temperature | Element | Platinum resistance thermometer; PT100 JIS class A (JIS C1604-1997) | | | | Measuring range | -40 to 180°C | | | | Accuracy ratings | ±0.5°C (at 25°C) ±0.5±0.002|T-25|°C (T=measured temperature °C) | | | | Power & Output | Power voltage | 12 to 24V DC ±1V | | | | Output signal | 4 to 20mA DC 2-wire transmission | | | | Temperature -40 to 180°C Relative humidity 0 to 100%RH | Temperature -40 to 180°C Dew-point temperature -40 to 180°C (Dew-point temperature is calculated by relative humidity and temperature) | | | | Resistive load | Lower than 500Q (at 24V DC power supply) | | | | Connecting | Cramp type no screw terminals | | | | Main unit | Working temperature | 0 to 50°C | | | | Material | Resin | | | | Mounting | By screws (M4 x 2 ) or mounting on DIN rail | | | | External dimensions | W90 x H90 x D45 (mm) | | | | Weight | Approx 220g | | | | Probe | Working temperature | -40 to 180°C | | | | Withstand pressure | 1MPa | | | | Material | SUS316 | | | | Cable length | 1m, 2m or 3m (to be specified when order) | | | | Interchangeability | Plug-in cable can be replaced. | | | | Mounting | Mouting by exclusive mounting hardware | | | | Weight | Approx 350g | | | | Accessory | Wall-mounting hardware | | | | | | | | | | | |
| | | |
| | | Note: The following humidity unit is convertible by combination of HN-CJA and HN-GV1F. (Absolute humidity g/m3, Relative humidity %RH, Mixing ratio g/kg, Water vapor pressure kPa, Dew-point temperature °C) ■ EXTERNAL DIMENSIONS | | |
| | | |
| | | ■I | | |
| | | Wall-mounting hardware | | |
| | | |
| | | Terminal cover y Probe connector | | |
| | | DIN rail spring | | |
| | | |
| | | |
| | | Unit: mm | | |
| | | 3. 3 | | |
| | | 90 | | 45 | | |
| | | |
| | | |
| | | |
| | | |
| | | Cable Max 3m \ Probe connector | | |
| | | | | | | | | | | | Dust-prooffilter Elementprotector(SUS316) Pipe(SUS316) | | | | | \ , | / Pipe welding part \ / / \ | | | | | fj;;;;;;;;;;;;;;;;;;;;j ' | | | | | | | 1 | | | | | | |, 119 (Swageloklocation) _ | | | | | 35 | 135 | | | | | | | | | | |
| | | |
| | | |
| | | Specifications subject to change without notice. Printed in Japan (I) 2006. 2 Recycled Paper | | |
| | | |
