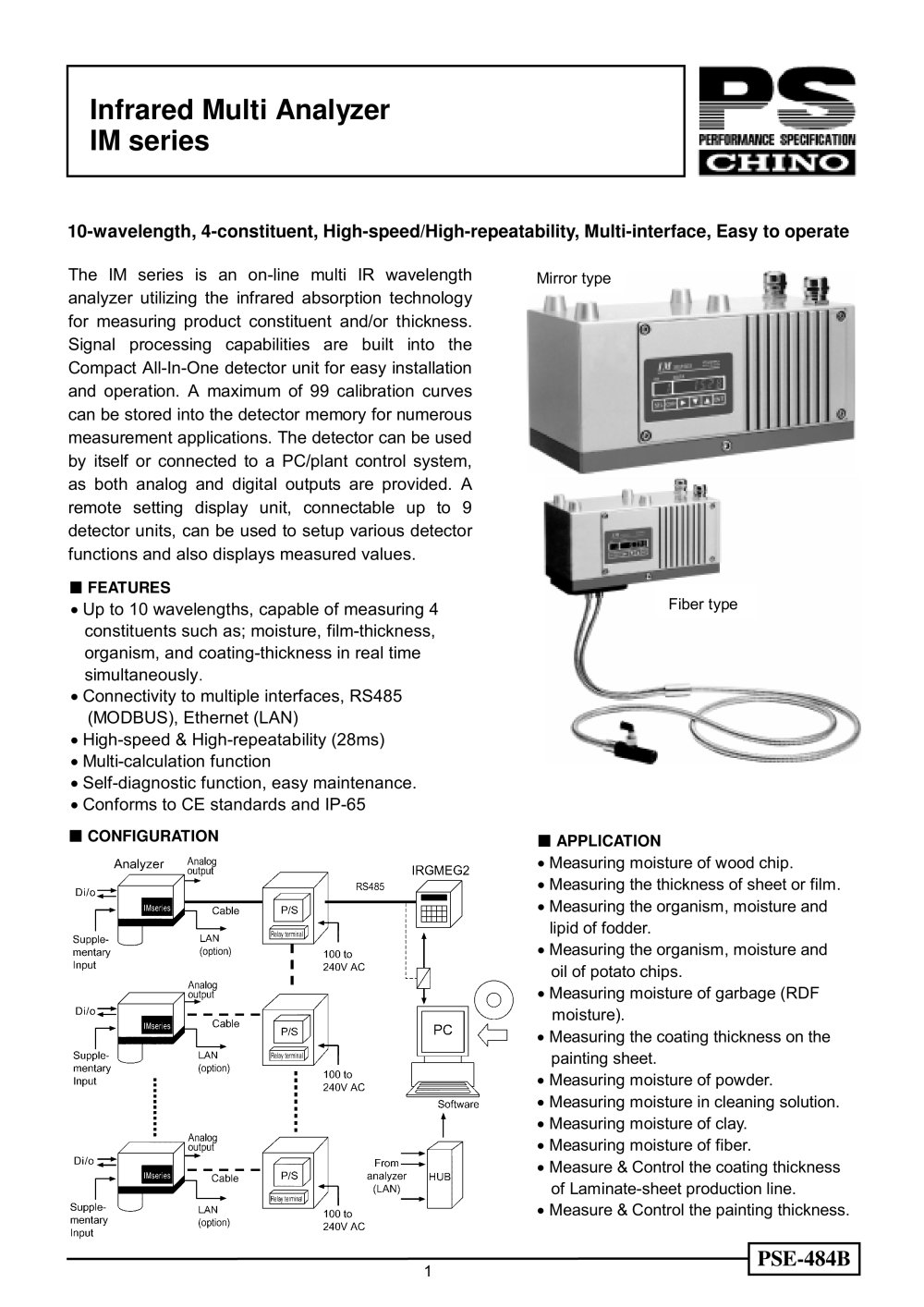

Infrared Multi Analyzer IM series

10-wavelength, 4-constituent, High-speed/High-repeatability, Multi-interface, Easy to operate

The IM series is an on-line multi IR wavelength analyzer utilizing the infrared absorption technolog
Mirror type y for measuring product constituent and/or thickness. Signal processing capabilities are built into the Compact All-In-One detector unit for easy installation and operation. A maximum of 99 calibration curves can be stored into the detector memory for numerous measurement applications. The detector can be used by itself or connected to a PC/plant control system, as both analog and digital outputs are provided. A remote setting display unit, connectable up to 9 detector units, can be used to setup various detecto r functions and also displays measured values.
FEATURES Up to 10 wavelengths, capable of measuring 4 constituents such as; moisture, film-thickness, organism, and coating-thickness in real time simultaneously
Fiber type . Connectivity to multiple interfaces, RS485 (MODBUS), Ethernet (LAN) High-speed & High-repeatability (28ms) Multi-calculation function Self-diagnostic function, easy maintenance. Conforms to CE standards and IP-65
CONFIGURATION APPLICATION Measuring moisture of wood chip. Measuring the thickness of sheet or film. Measuring the organism, moisture and lipid of fodder. Measuring the organism, moisture and oil of potato chips. Measuring moisture of garbage (RDF moisture). Measuring the coating thickness on the painting sheet. Measuring moisture of powder. Measuring moisture in cleaning solution. Measuring moisture of clay. Measuring moisture of fiber. Measure & Control the coating thickness of Laminate-sheet production line. Measure & Control the painting thickness. 1

PSE-484B
