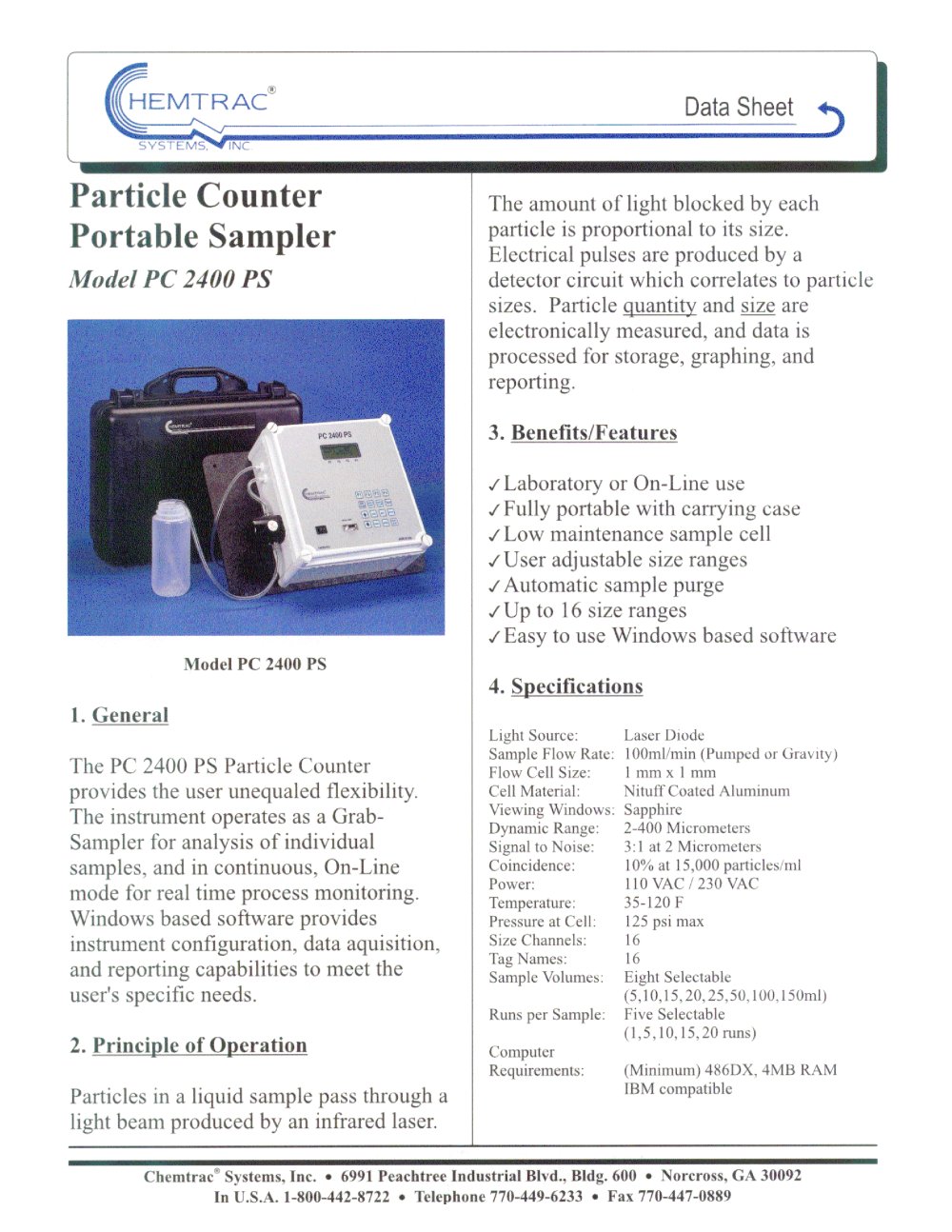

PC 2400 PS Portable Sampler - Chemtrac - #1

HEMTRAC

Data Sheet

The amount of light blocked by each particle is proportional to its size. Electrical pulses are produced by a detector circuit which correlates to particle sizes. Particle quantity and size are electronically measured, and data is processed for storage, graphing, and reporting.

3. Benefits/Features

y Laboratory or On-Line use

/ Fully portable with carrying case

y Low maintenance sample cell

/User adjustable size ranges

/Automatic sample purge

/ Up to 16 size ranges

/ Easy to use Windows based software

1. General

The PC 2400 PS Particle Counter provides the user unequaled flexibility. The instrument operates as a Grab-Sampler for analysis of individual samples, and in continuous, On-Line mode for real time process monitoring. Windows based software provides instrument configuration, data aquisition, and reporting capabilities to meet the user's specific needs.

2. Principle of Operation

Particles in a liquid sample pass through a light beam produced by an infrared laser.

Light Source: Sample Flow Rate: Flow Cell Size: Cell Material: Viewing Windows: Dynamic Range: Signal to Noise: Coincidence: Power: Temperature: Pressure at Cell: Size Channels: Tag Names: Sample Volumes:

Runs per Sample:

Computer Requirements:

Laser Diode

100ml/min (Pumped or Gravity)

1 mm x1 mm

Nituff Coated Aluminum

Sapphire

2-400 Micrometers

3:1 at 2 Micrometers

10% at 15,000 particles/ml

110 VAC/230 VAC

35-120 F

125 psi max

16

16

Eight Selectable (5,10,15,20,25,50,100,150ml) Five Selectable (1,5,10,15,20 runs)

(Minimum) 486DX, 4MB RAM IBM compatible
