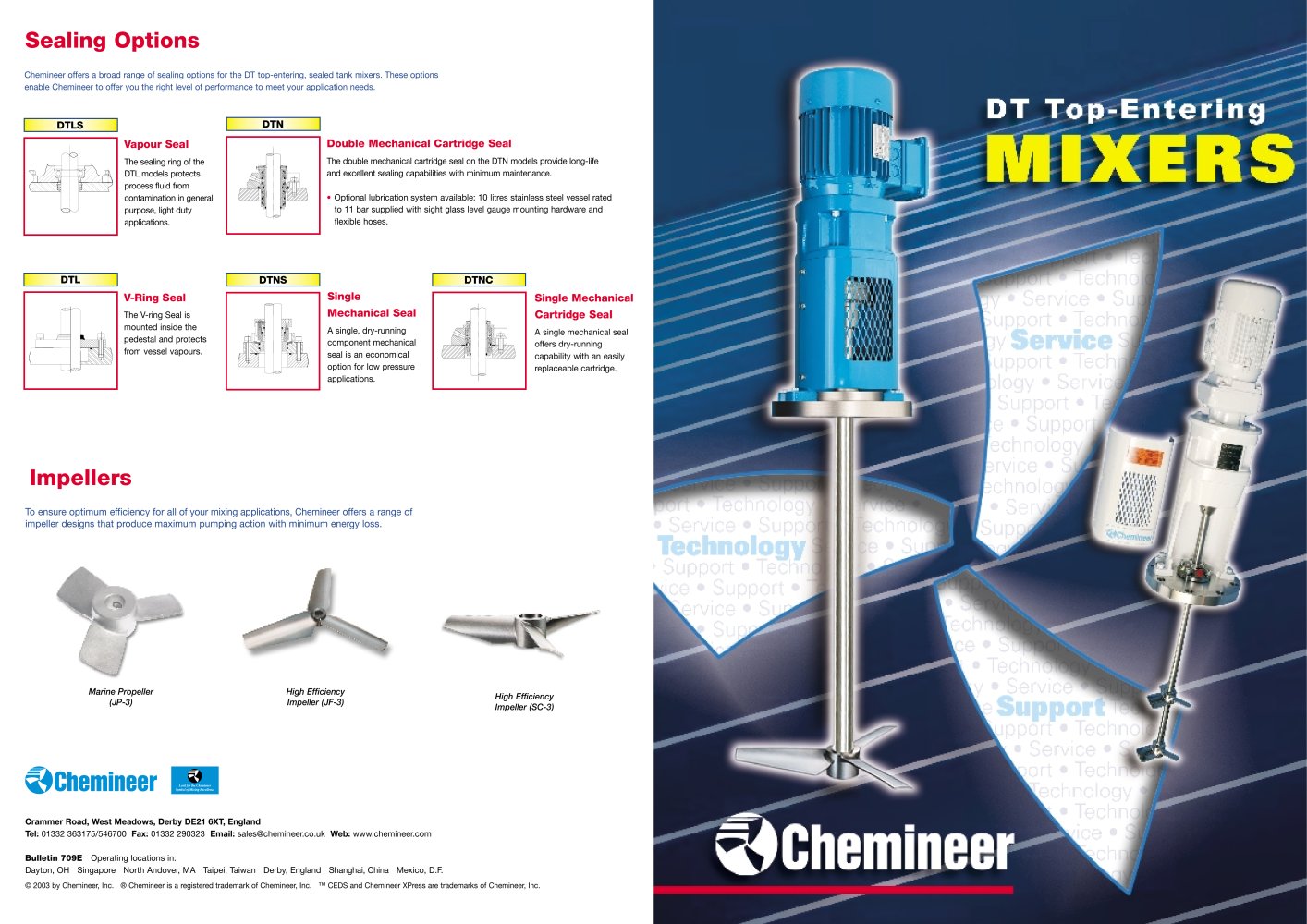

Sealing Options Impellers

Chemineer offers a broad range of sealing options for the DT top-entering, sealed tank mixers. These optionsenable Chemineer to offer you the right level of performance to meet your application needs.

DTLS

DTN DTL

Vapour Seal Double Mechanical Cartridge Seal

The sealing ring of the DTL models protects process fluid from contamination in general purpose, light duty applications. The double mechanical cartridge seal on the DTN models provide long-life and excellent sealing capabilities with minimum maintenance. • Optional lubrication system available: 10 litres stainless steel vessel rated to 11 bar supplied with sight glass level gauge mounting hardware and flexible hoses.

DTNS DTNC

V-Ring Seal SingleMechanical Seal Single MechanicalCartridge Seal

The V-ring Seal is mounted inside the pedestal and protects from vessel vapours. A single, dry-runningcomponent mechanical seal is an economical option for low pressure applications. A single mechanical sealoffers dry-running capability with an easily replaceable cartridge.

To ensure optimum efficiency for all of your mixing applications, Chemineeroffers a range ofimpeller designs that produce maximum pumping action with minimum energy loss.

High Efficiency Impeller (JF-3)Marine Propeller (JP-3) High Efficiency Impeller (SC-3) Crammer Road, West Meadows, Derby DE21 6XT, EnglandTel: 01332 363175/546700 Fax: 01332 290323 Email: sales@chemineer.co.uk Web: www.chemineer.com Bulletin 709E Operating locations in:Dayton, OH Singapore North Andover, MA Taipei, Taiwan Derby, England Shanghai, ChinaMexico, D.F.
