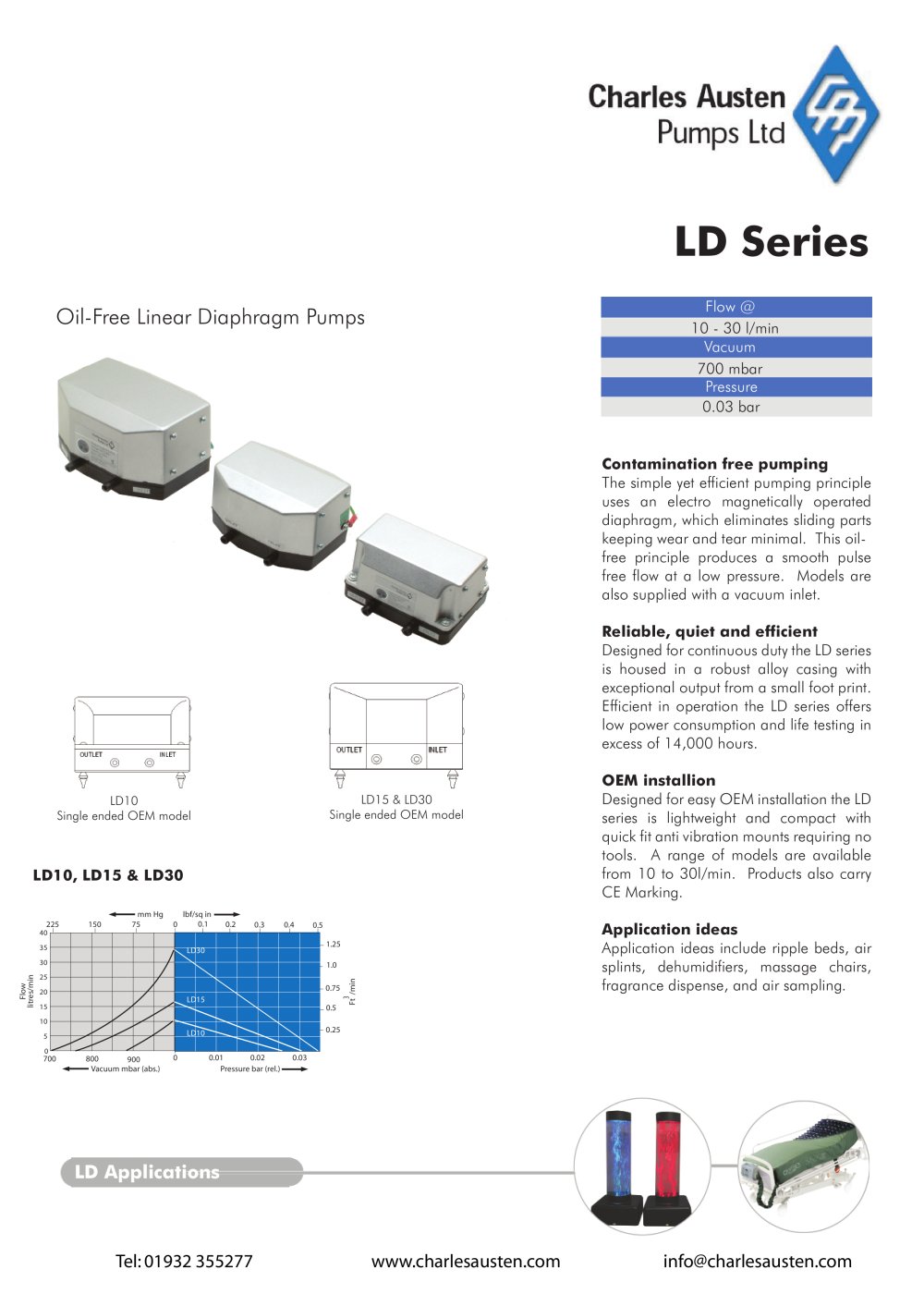

Oil-Free Linear Diaphragm Pumps

10 - 30 l/min 700 mbar 0.03 bar

The simple yet efficient pumping principle uses an electro magnetically operated diaphragm, which eliminates sliding parts keeping wear and tear minimal. This oil-free principle produces a smooth pulse free flow at a low pressure. Models are also supplied with a vacuum inlet.

Designed for continuous duty the LD series is housed in a robust alloy casing with exceptional output from a small foot print. Efficient in operation the LD series offers low power consumption and life testing in excess of 14,000 hours.

Designed for easy OEM installation the LD series is lightweight and compact with quick fit anti vibration mounts requiring no tools. A range of models are available from 10 to 30l/min. Products also carry CE Marking.

Application ideas include ripple beds, air splints, dehumidifiers, massage chairs, fragrance dispense, and air sampling.

LD15 & LD30 Single ended OEM model

Single ended OEM model

— mm Hg lbf/sq in > 75 0 0.1 0.2

225

150

0.3 0.4

0.5

40

-1.25

35

Tm°-

30 25 20 15 10 5

0 700

1.0

-0.75 -0.5

0.25

E

800 900 0 0.01

- Vacuum mbar (abs.)

Pressure bar (rel.)-
