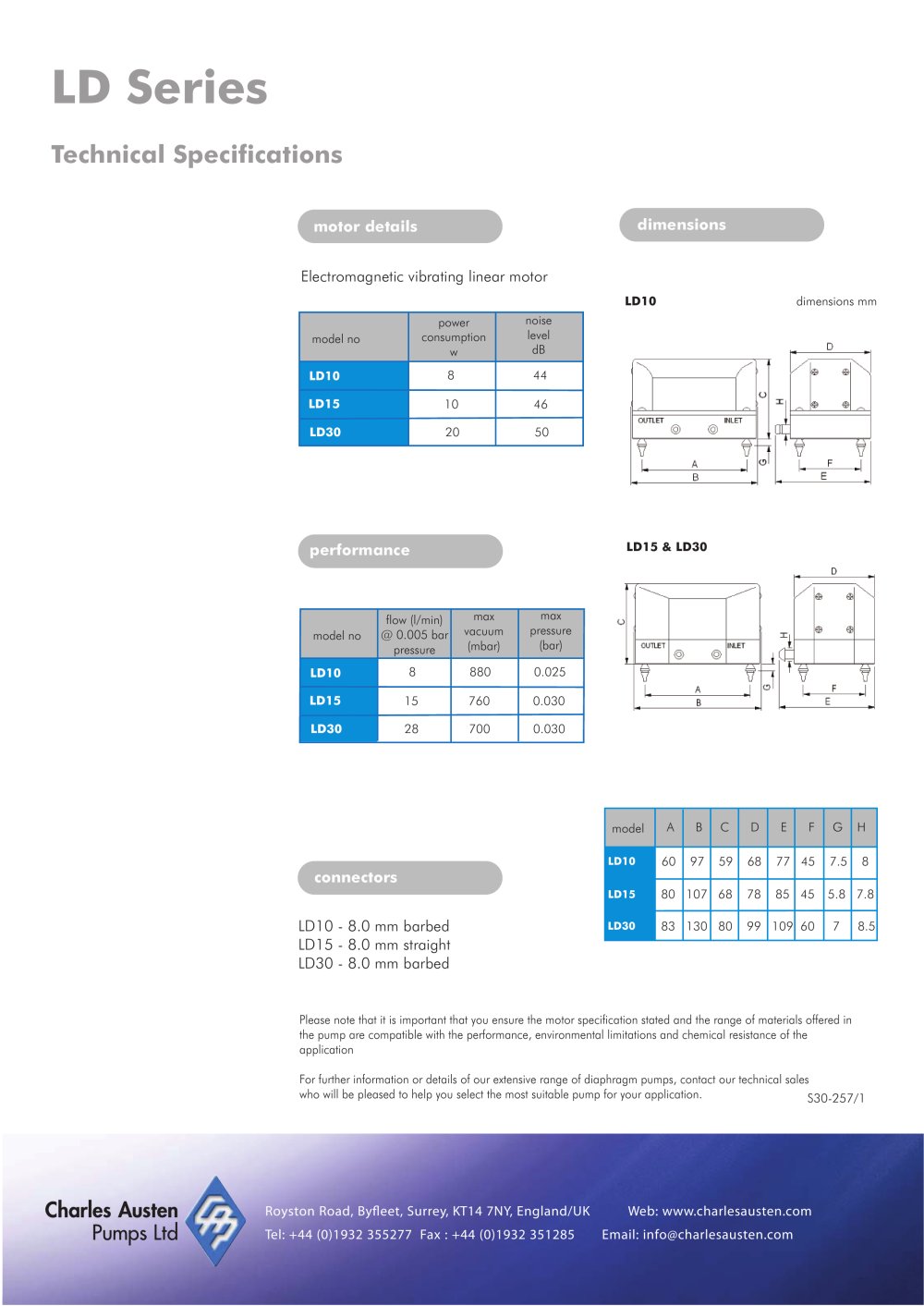

LD Series

Technical Specifications

motor details dimensions Electromagnetic vibrating linear motor

LD10 dimensions mm
powerconsumptionwnoiseleveldB model no LD10 8 44 10 46 20 50 LD15LD30 LD10LD10

performance

LD15 & LD30
flow (l/min)@ 0.005 barpressuremaxvacuum(mbar) maxpressure(bar) model no LD10 8 880 0.025 15 760 0.030 28 700 0.030 LD15LD30 LD10LD10 A B C D E F G Hmodel
LD10LD15LD30 60 97 59 68 77 45 7.5 880 107 68 78 85 45

connectors

5.8 7.883 130 80 99 109 60 7 8.5

LD10 - 8.0 mm barbedLD15 - 8.0 mm straight LD30 - 8.0 mm barbed

Please note that it is important that you ensure the motor specification stated and the range of materials offered in the pump are compatible with the performance, environmental limitations and chemical resistance of the applicationFor further information or details of our extensive range of diaphragm pumps, contact our technical saleswho will be pleased to help you select the most suitable pump for your application. S30-257/1
