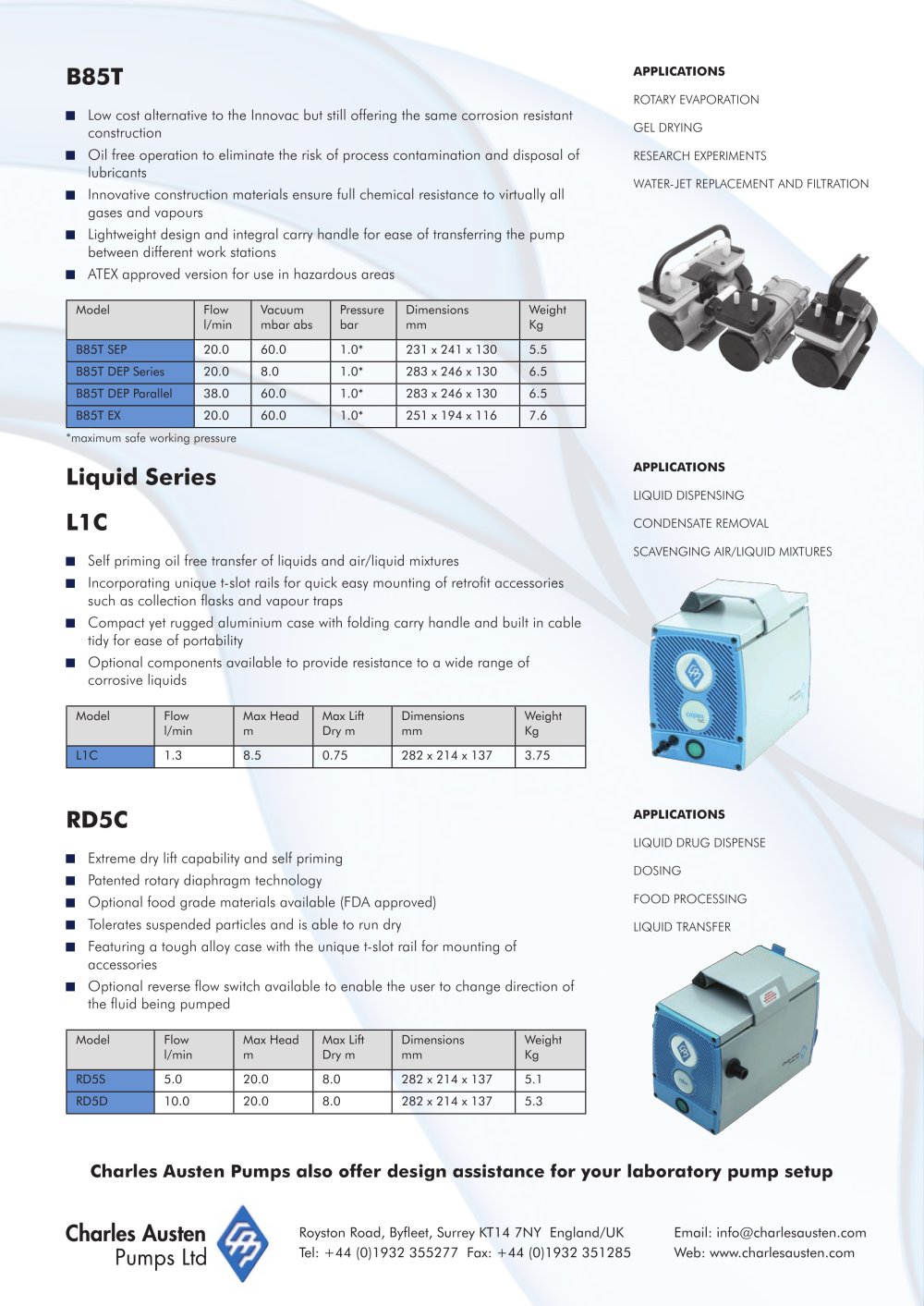

Royston Road, Byfleet, Surrey KT14 7NY England/UK Tel: +44 (0)1932 355277 Fax: +44 (0)1932 351285 Email: info@charlesausten.com Web: www.charlesausten.com B85T Low cost alternative to the Innovac but still offering the same corrosion resistant construction Oil free operation to eliminate the risk of process contamination and disposal of lubricants Innovative construction materials ensure full chemical resistance to virtually all gases and vapours Lightweight design and integral carry handle for ease of transferring the pump between different work stations ATEX approved version for use in hazardous areas Model Flow l/min Vacuum mbar abs Pressure bar Dimensions mm Weight Kg B85T SEP 20.0 60.0 1.0* 231 x 241 x 130 5.5 B85T DEP Series 20.0 8.0 1.0* 283 x 246 x 130 6.5 B85T DEP Parallel 38.0 60.0 1.0* 283 x 246 x 130 6.5 B85T EX 20.0 60.0 1.0* 251 x 194 x 116 7.6 Liquid Series L1C Self priming oil free transfer of liquids and air/liquid mixtures Incorporating unique t-slot rails for quick easy mounting of retrofit accessories such as collection flasks and vapour traps Compact yet rugged aluminium case with folding carry handle and built in cable tidy for ease of portability Optional components available to provide resistance to a wide range of corrosive liquids Model Flow l/min Max Head m Max Lift Dry m Dimensions mm Weight Kg L1C 1.3 8.5 0.75 282 x 214 x 137 3.75 RD5C Extreme dry lift capability and self priming Patented rotary diaphragm technology Optional food grade materials available (FDA approved) Tolerates suspended particles and is able to run dry Featuring a tough alloy case with the unique t-slot rail for mounting of accessories Optional reverse flow switch available to enable the user to change direction of the fluid being pumped Model Flow l/min Max Head m Max Lift Dry m Dimensions mm Weight Kg RD5S 5.0 20.0 8.0 282 x 214 x 137 5.1 RD5D 10.0 20.0 8.0 282 x 214 x 137 5.3 APPLICATIONS ROTARY EVAPORATION GEL DRYING RESEARCH EXPERIMENTS WATER-JET REPLACEMENT AND FILTRATION APPLICATIONS LIQUID DISPENSING CONDENSATE REMOVAL SCAVENGING AIR/LIQUID MIXTURES APPLICATIONS LIQUID DRUG DISPENSE DOSING FOOD PROCESSING LIQUID TRANSFER Charles Austen Pumps also offer design assistance for your laboratory pump setup *maximum safe working pressure
