Text version of the page

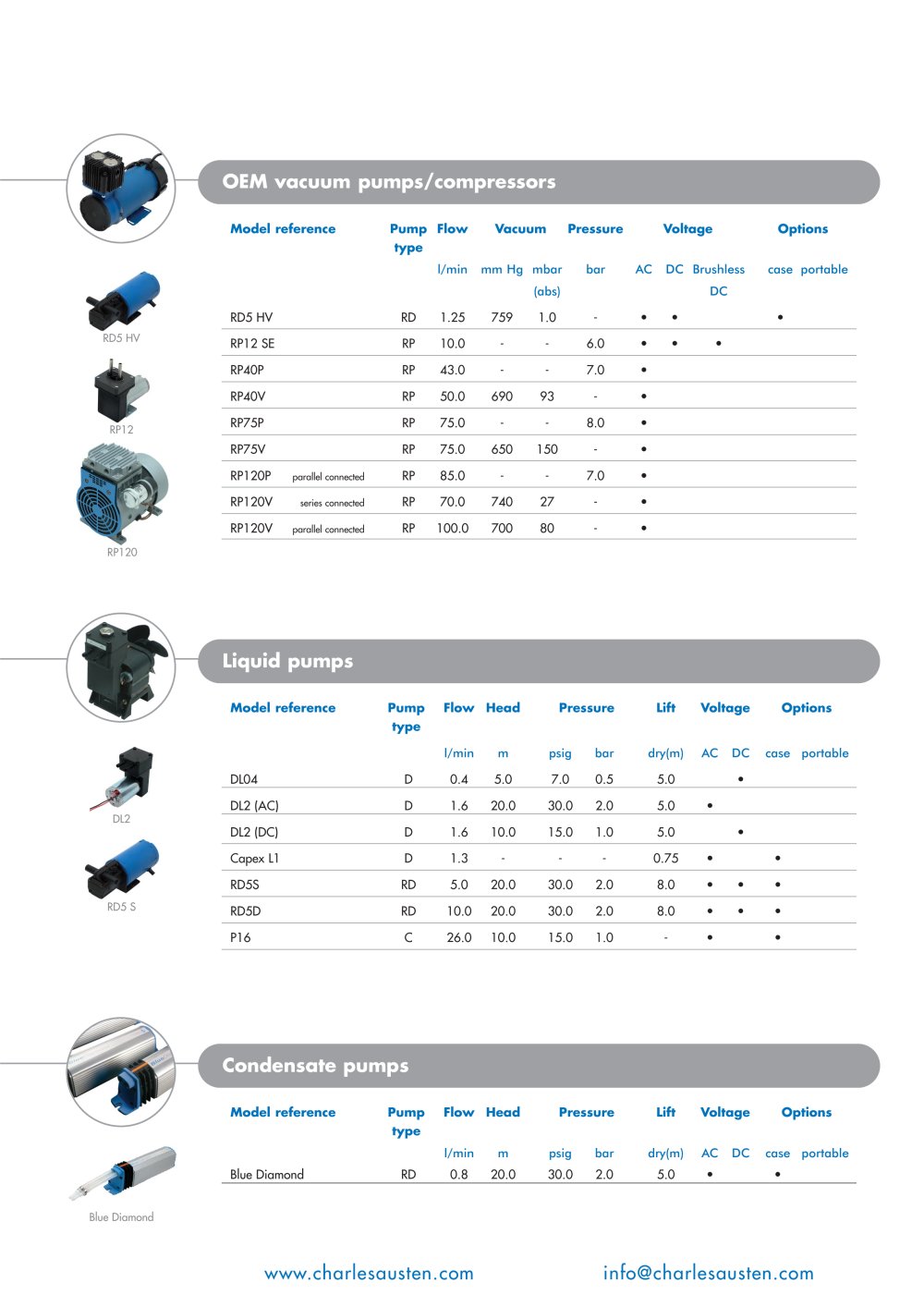

vacuum pumps/compressors

Model reference

Pump Flow Vacuum Pressure Voltage Options

l/min mm Hg mbar bar AC DC Brushless case portable

(abs)

DC


	RD5 HV		RD	1.25	759	1.0	_- • • •
	RP12 SE		RP	10.0	-	-	6.0 • • •
	RP40P		RP	43.0	-	-	7.0 •
	RP40V		RP	50.0	690	93	- •
	RP75P		RP	75.0	-	-	8.0 •
	RP75V		RP	75.0	650	150	- •
	RP120P	parallel connected	RP	85.0	-	-	7.0 •
	RP120V	series connected	RP	70.0	740	27	- •
	RP120V	parallel connected	RP	100.0	700	80	- •

rp120


	Model reference	Pump ^type	Flow	Head	Pressure		Lift	Voltage		Options
			l/min			bar	dry(m)	AC	DC	case portable
	DL04	D	0.4	5.0	7.0	0.5	5.0		_•
	DL2 (AC)	D	1.6	20.0	30.0	2.0	5.0	•
	DL2 (DC)	D	1.6	10.0	15.0	1.0	5.0		_•
	Capex L1	D	1.3	-	-	-	0.75	•		_•
	RD5S	RD	5.0	20.0	30.0	2.0	8.0	•	_•	_•
	RD5D	RD	10.0	20.0	30.0	2.0	8.0	•	_•	_•
	P16	C	26.0	10.0	15.0	1.0	_-	•		_•

dl2

rd5 s

Condensate pumps

Pump Flow Head

type

l/min m

RD 0.8 20.0

Lift

dry(m)

5.0

Voltage Options

Pressure

psig bar

30.0 2.0

case portable

A

info@charlesausten.com

www.charlesausten.com
