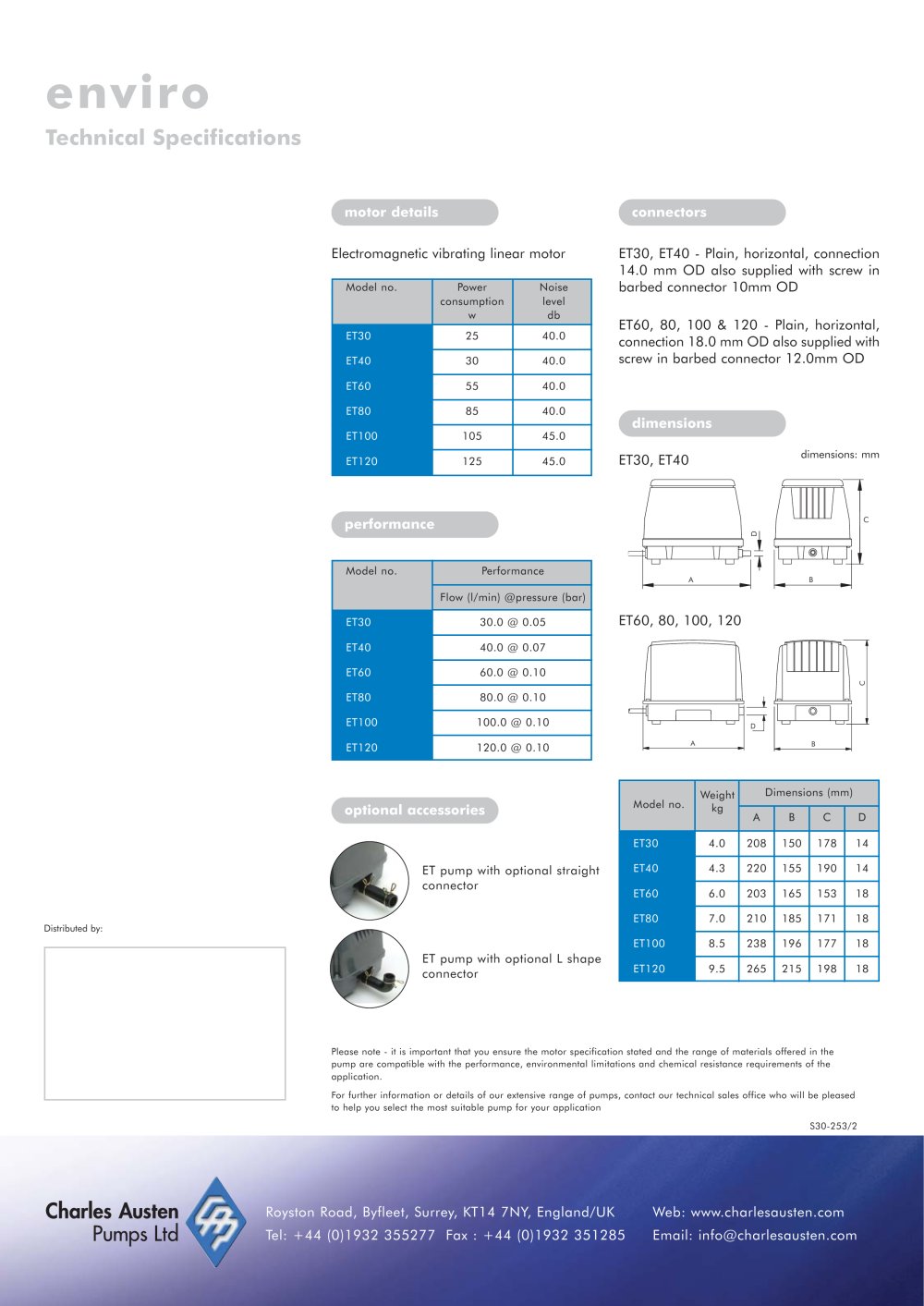

enviro

Technical Specifications


Electromagnetic vibrating linear motor
Model no.	Power consumption w	Noise level db
ET30	25	40.0
ET40	30	40.0
ET60	55	40.0
ET80	85	40.0
ET100	105	45.0
ET120	125	45.0
^ performance_
Model no.	Performance
	Flow (l/min) @pressure (bar)
ET30	30.0 @ 0.05
ET40	40.0 @ 0.07
ET60	60.0 @ 0.10
ET80	80.0 @ 0.10
ET100	100.0 @ 0.10
ET120	120.0 @ 0.10

ET30, ET40 - Plain, horizontal, connection 14.0 mm OD also supplied with screw in barbed connector 10mm OD

ET60, 80, 100 & 120 - Plain, horizontal, connection 18.0 mm OD also supplied with screw in barbed connector 12.0mm OD

dimensions

dimensions: mm

ET30, ET40

^=4


1 II II t:
LJ	A	_l

ET60, 80, 100, 120

■J


Model no.	Weight kg	Dimensions (mm)
Model no.	Weight kg	A	B	C D
ET30	4.0	208	150	178 14
ET40	4.3	220	155	190	14
ET60	6.0	203	165	153	18
ET80	7.0	210	185	171	18
ET100	8.5	238	196	177	18
	9.5	265	215	198	18

ET pump with optional straight connector

Distributed by:

ET pump with optional L shape connector

Please note - it is important that you ensure the motor specification stated and the range of materials offered in the pump are compatible with the performance, environmental limitations and chemical resistance requirements of the application.

For further information or details of our extensive range of pumps, contact our technical sales office who will be pleased to help you select the most suitable pump for your application

S30-253/2
