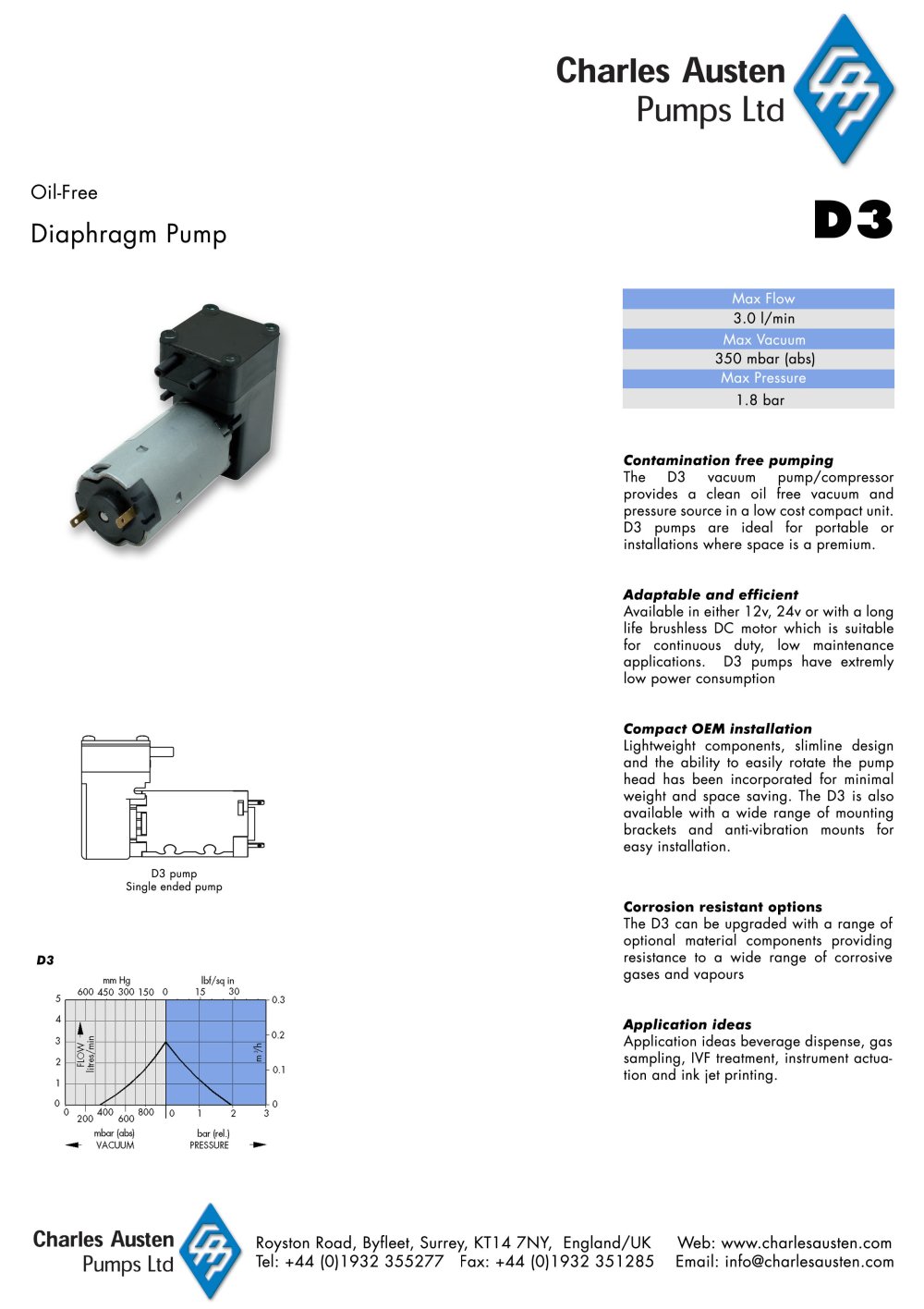

D3 Vacuum Pump / Compressor - CHARLES AUSTEN - #1

Pumps Ltd

Oil-Free

Diaphragm Pump

Max Flow

3.0 l/min 350 mbar (abs) 1.8 bar

The D3 vacuum pump/compressor provides a clean oil free vacuum and pressure source in a low cost compact unit. D3 pumps are ideal for portable or installations where space is a premium.

Available in either 1 2v, 24v or with a long life brushless DC motor which is suitable for continuous duty, low maintenance applications. D3 pumps have extremly low power consumption

Lightweight components, slimline design and the ability to easily rotate the pump head has been incorporated for minimal weight and space saving. The D3 is also available with a wide range of mounting brackets ond anti-vibration mounts for easy installation.

D3 pump Single ended pump

The D3 can be upgraded with a range of optional material components providing resistance to a wide range of corrosive gases and vapours

Ibf/sqin 15 30

mm Hg 600 450 300 150 0

0.3

Application ideas beverage dispense, gas sampling, IVF treatment, instrument actua­tion and ink jet printing.

0.2

400

800

200 600

bar HJ

VACUUM PRESSURE

m

Pumps Ltd

Royston Road, Byfleet, Surrey, KT14 7NY, England/UK Tel: +44 (0) 1932 355277 Fax: +44 (0) 1932 351 285

Web: www.charlesausten.com Email: ¡nfo@charlesausten.com
