| Charles Austen Pumps Ltd | ||||||||||||||||||||||||||||||||||||||

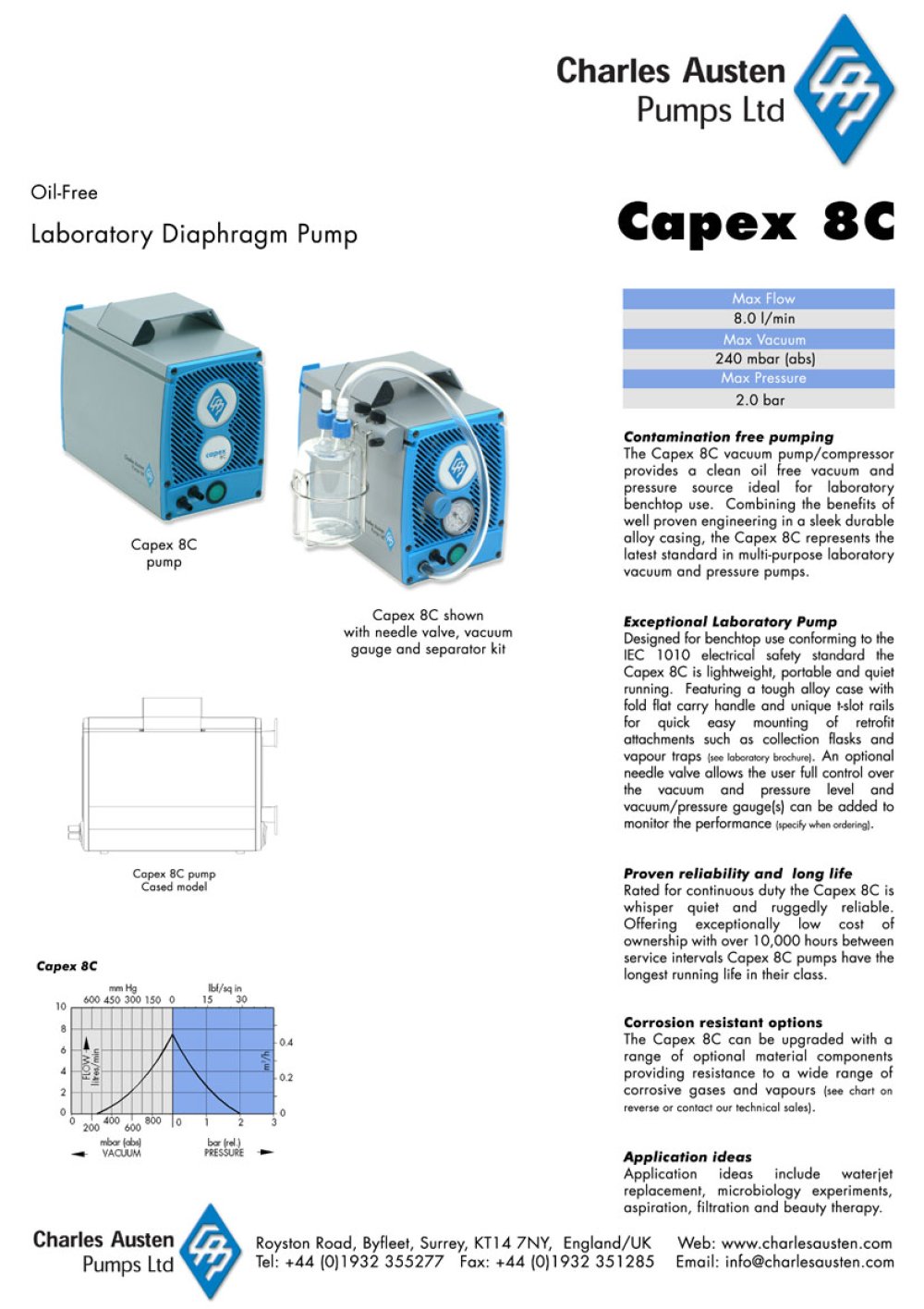

| Oil-Free Laboratory Diaphragm Pump | ||||||||||||||||||||||||||||||||||||||
| Capex 8C | ||||||||||||||||||||||||||||||||||||||
| Mox Flow | ||||||||||||||||||||||||||||||||||||||
| 8.0 l/min | ||||||||||||||||||||||||||||||||||||||
| Max Voci | ||||||||||||||||||||||||||||||||||||||
| 240 mbar (abs) | ||||||||||||||||||||||||||||||||||||||
| Max Pressure | ||||||||||||||||||||||||||||||||||||||
| 2.0 bar Contamination free pumping The Capex 8C vacuum pump/compressor provides a clean oil free vacuum and pressure source ideal for laboratory benchlop use. Combining ihe benefits of well proven engineering in a sleek durable alloy casing, the Capex 8C represents the latest standard in multi-purpose laboratory vacuum and pressure pumps. | ||||||||||||||||||||||||||||||||||||||
| Capex 8C pump | ||||||||||||||||||||||||||||||||||||||
| Capex 8C shown with needle valve, vacuum gouge and separator kit | ||||||||||||||||||||||||||||||||||||||
| Exceptional Laboratory Pump Designed for benchtop use conforming to the IEC 1010 electrical safety standard the Capex 8C is lightweight, portable and quiet running. Featuring a tough alloy case with fold Rat carry handle and unique t-slot rails for quick easy mounting of retrofit attachments such as collection flasks and vapour traps [m» loboratoy bw»w«|. An optional needle valve allows the user full control over the vacuum and pressure level and vacuum/pressure gauge(s) can be added to monitor the performance (*p«.fywfco<>c*oWa). | ||||||||||||||||||||||||||||||||||||||
| Proven reliability and long life Rated for continuous duty the Capex 8C is whisper quiet and ruggedly reliable. Offering exceptionally low cost of ownership with over 10,000 hours between service intervals Capex 8C pumps have the longest running life in their class. | ||||||||||||||||||||||||||||||||||||||
| Capex 8C pump Coied model | ||||||||||||||||||||||||||||||||||||||
| Capex 8C urn Hg 400 450 300 150 0 | ||||||||||||||||||||||||||||||||||||||
| 15 3C | ||||||||||||||||||||||||||||||||||||||
| Corrosion resistant options The Capex 8C can be upgraded with a range of optional material components providing resistance to a wide range of corrosive gases and vapours (iee chart on reverie or contact our technical ioloi). | ||||||||||||||||||||||||||||||||||||||
| 200 400 6O0 800 ' ■ VACUUM | ||||||||||||||||||||||||||||||||||||||
| be H) | ||||||||||||||||||||||||||||||||||||||
| Application ideas Application ideas include waterjet replacement, microbiology experiments, aspiration, filtration and beauty therapy. | ||||||||||||||||||||||||||||||||||||||
| Charles Austen Pumps Ltd | ||||||||||||||||||||||||||||||||||||||
| k Royston Road, Byfleet, Surrey, KT14 7NY, England/UK f Tel:+44 (0)1932 355277 Fax:+44 (0)1932 351285 | Web: www.charlesausten.com Email: info@charlesausten.com | |||||||||||||||||||||||||||||||||||||
