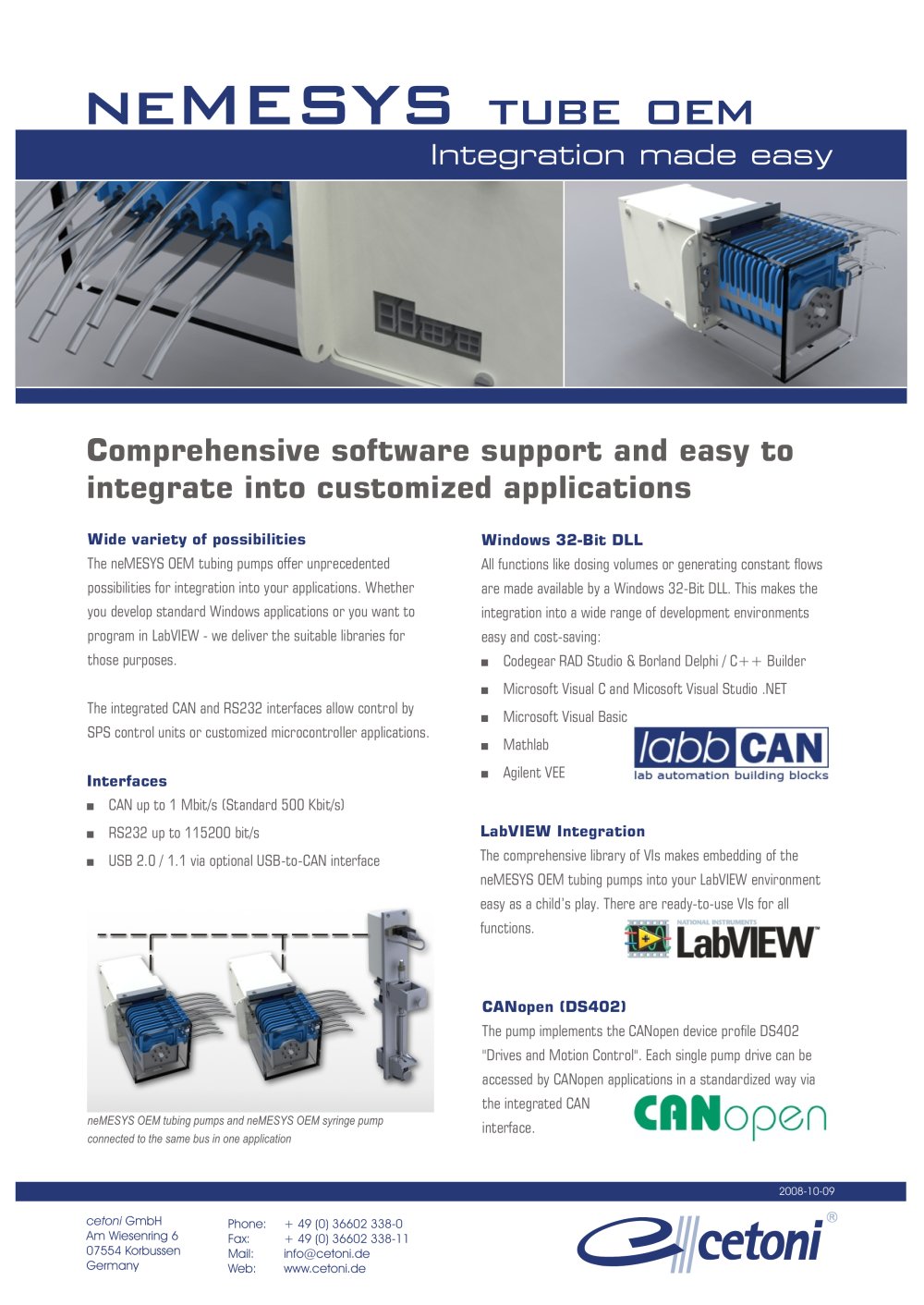

NEMESYS tube oem
|
||||||||||||||||||||||
|
|
||||||||||||||||||||||
|
||||||||||||||||||||||
|
|
||||||||||||||||||||||
|
Comprehensive software support and easy to integrate into customized applications
|
||||||||||||||||||||||
|
|
||||||||||||||||||||||
|
Wide variety of possibilities
The neMESYS OEM tubing pumps offer unprecedented possibilities for intégration into your applications. Whether you develop standard Windows applications or you want to program in LabVIEW - we deliver the suitable libraries for those purposes.
The integrated CAN and RS232 interfaces allow control by SPS control units or customized microcontroller applications.
Interfaces
■ CAN up to 1 Mbit/s (Standard 500 Kbit/s)
■ RS232 up to 115200 bit/s
■ USB 2.0 / 1.1 via optional USB-to-CAN interface
|
Windows 32-Bit DLL
All functions like dosing volumes or generating constant flows are made available by a Windows 32-Bit DLL. This makes the integration into a wide range of development environments easy and cost-saving:
■ Codegear RAD Studio & Borland Delphi / C+ + Builder
■ Microsoft Visual C and Micosoft Visual Studio .NET
■ Microsoft Visual Basic
■ Mathlab
|
|||||||||||||||||||||
|
■ Agilent VEE
|
lab automation building blocks
|
|||||||||||||||||||||
|
LabVIEW Integration
The comprehensive library of VIs makes embedding of the neMESYS OEM tubing pumps into your LabVIEW environment easy as a child's play. There are ready-to-use Vis for all
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
functions.
|
S LabVIEW
|
|||||||||||||||||||||
|
CANopen (DS402)
The pump implements the CANopen device profile DS402 "Drives and Motion Control". Each single pump drive can be
|
||||||||||||||||||||||
|
accessed by CANopen applthe integrated CAN interface.
|
------------------------j —
CANopen
|
|||||||||||||||||||||
|
neMESYS OEM tubing pumps and neMESYS OEM syringe pump connected to the same bus in one application
|
||||||||||||||||||||||
|
|
||||||||||||||||||||||
|
cetoni GmbH Am Wiesenring 6 07554 Korbussen Germany
|
 |
Icetoni
|
||||||||||||||||||||
|
|
||||||||||||||||||||||
