Triaxial Vibrometer - 1

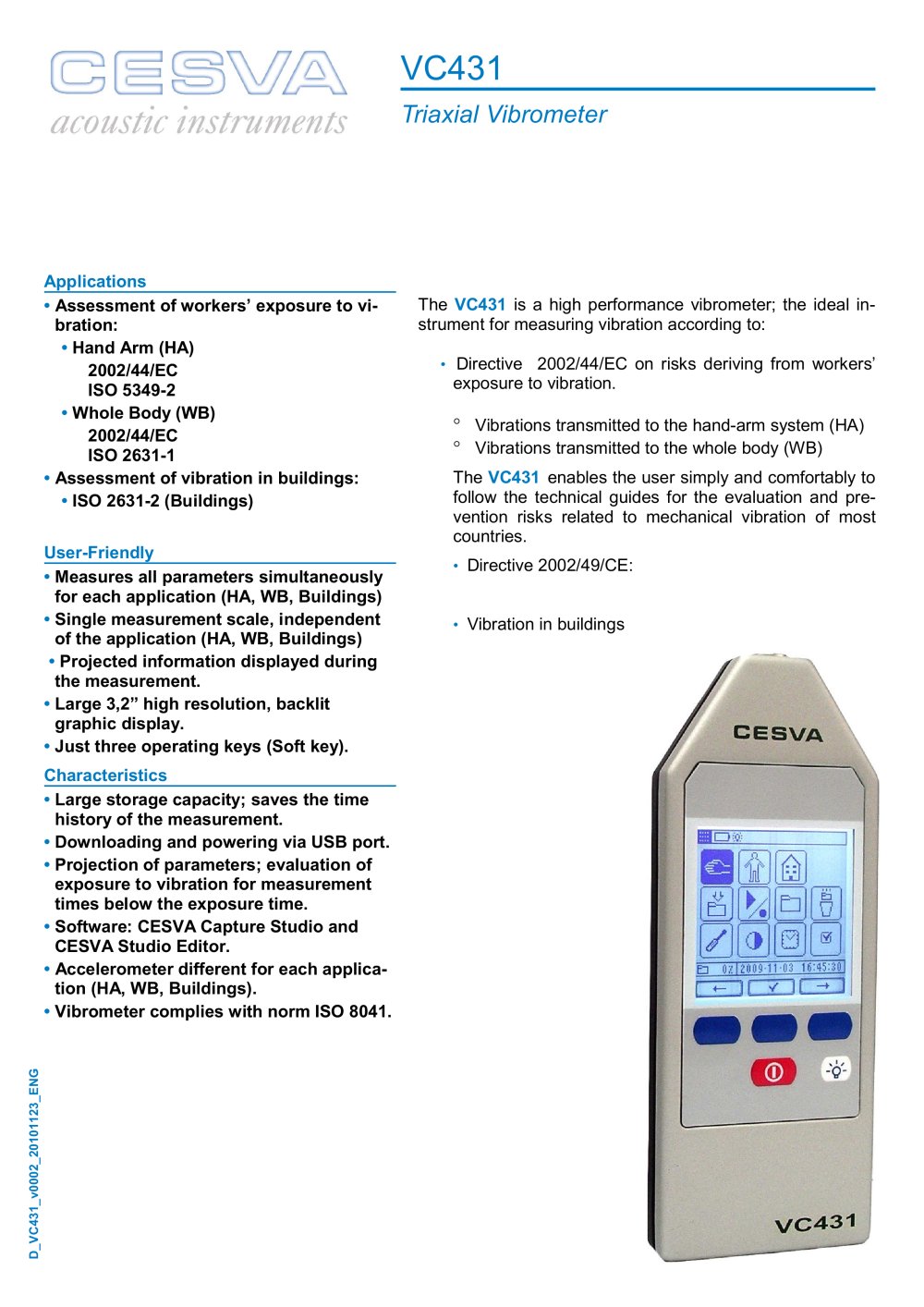

VC431 Triaxial Vibrometer The VC431 is a high performance vibrometer; the ideal instrument for measuring vibration according to: • Directive 2002/44/EC on risks deriving from workers’ exposure to vibration. ° Vibrations transmitted to the hand-arm system (HA) ° Vibrations transmitted to the whole body (WB) The VC431 enables the user simply and comfortably to follow the technical guides for the evaluation and prevention risks related to mechanical vibration of most countries. • Directive 2002/49/CE: • Vibration in buildings Applications • Assessment of workers’ exposure to vibration: • Hand Arm (HA) 2002/44/EC ISO 5349-2 • Whole Body (WB) 2002/44/EC ISO 2631-1 • Assessment of vibration in buildings: • ISO 2631-2 (Buildings) User-Friendly • Measures all parameters simultaneously for each application (HA, WB, Buildings) • Single measurement scale, independent of the application (HA, WB, Buildings) • Projected information displayed during the measurement. • Large 3,2” high resolution, backlit graphic display. • Just three operating keys (Soft key). Characteristics • Large storage capacity; saves the time history of the measurement. • Downloading and powering via USB port. • Projection of parameters; evaluation of exposure to vibration for measurement times below the exposure time. • Software: CESVA Capture Studio and CESVA Studio Editor. • Accelerometer different for each application (HA, WB, Buildings). • Vibrometer complies with norm ISO 8041. D_VC431_v0002_20101123_ENG

Open the catalog to page 1
Triaxial Vibrometer - 2

Villar, 20 - 08041 Barcelona (Spain) - Tel. (34) 934.335.240 - Fax. (34) 933.479.310 - e-mail: info@cesva.com - www.cesva.com Following the philosophy that characterises all instruments, the VC431 is userfriendly, with a single range (no scale changes) and simultaneous measurement of all parameters. It has an intuitive, visual menu and option structure. There is no need to set the language as it has easily recognisable and identifiable icons. Any application or adjustment can be accessed from the main menu. To do this simply select the icon required. It has three vibration measurement...

Open the catalog to page 2
Triaxial Vibrometer - 3

Villar, 20 - 08041 Barcelona (Spain) - Tel. (34) 934.335.240 - Fax. (34) 933.479.310 - e-mail: info@cesva.com - www.cesva.com VC431 Functions available Func. Description of HAND ARM (HA) Mode functions ahx Rms value of acceleration in the x axis with Wh weighting ahy Rms value of acceleration in the y axis with Wh weighting ahz Rms value of acceleration in the z axis with Wh weighting ahv Total value of acceleration A(8) Daily exposure to vibration tp Projection time (programmable) t Measurement time A(8)p Projected daily exposure to vibration 3 Func. Description of WHOLE BODY (WB) Mode...

Open the catalog to page 3
Triaxial Vibrometer - 4

Villar, 20 - 08041 Barcelona (Spain) - Tel. (34) 934.335.240 - Fax. (34) 933.479.310 - e-mail: info@cesva.com - www.cesva.com VC431 Accelerometers Accelerometers The VC431 vibrometer operates with the following triaxial accelerometers : • AC031 Triaxial accelerometer for the Hand-arm application • AC032 Triaxial accelerometer for the Buildings application • AC033 Triaxial accelerometer for the Whole body application 4 AC033 accelerometer for Whole body AC032 accelerometer for Buildings AC031 accelerometer for Hand-arm Technical Specifications AC031 (includes cable and accessories) IEPE...

Open the catalog to page 4
Triaxial Vibrometer - 5

Villar, 20 - 08041 Barcelona (Spain) - Tel. (34) 934.335.240 - Fax. (34) 933.479.310 - e-mail: info@cesva.com - www.cesva.com VC431 Accessories 5 Accessories included with the VC431 FN431 Case STF030 Computer program CN1US USB cable miniature connector—USB Two 1,5 volt batteries Accessories included with the AC031 accelerometer AA031 Handle adapter for the AC031 accelerometer AA131 Hand adapter for the AC031 accelerometer Accessories included with the AC032 accelerometer CN032 Connection cable from the AC032 accelerometer to the VC431 vibrometer Accessories included with the AC033...

Open the catalog to page 5
Triaxial Vibrometer - 6

Villar, 20 - 08041 Barcelona (Spain) - Tel. (34) 934.335.240 - Fax. (34) 933.479.310 - e-mail: info@cesva.com - www.cesva.com VC431 Technical specifications Certificates and regulations Complies with the following regulations: • ISO 8041:2005 and ISO 8041:2005/Cor1:2007 • UNE-EN ISO 8041:2006 and UNE-EN ISO 8041:2006 /AC:2009 • Mark. Complied with the directive on low voltage 73/23/EEC and directive CEM 89/336/EEC modified by 93/68/EEC • The VC431 complies with directives 2002/96/EC and 2003/108/EC on WEEE (Waste Electrical and Electronic Equipment) Range of linearity • Hand Arm Application...

Open the catalog to page 6
Triaxial Vibrometer - 7

Villar, 20 - 08041 Barcelona (Spain) - Tel. (34) 934.335.240 - Fax. (34) 933.479.310 - e-mail: info@cesva.com - www.cesva.com VC431 Technical specifications Accelerometers (not included) • Hand-arm accelerometer (HA) AC031 • Whole body accelerometer (WB) AC033 • Whole body for buildings accelerometer (WBB) AC032 Parameters See table | Resolution: >1 % Influence of humidity Operating margin (in absence of condensation): 25 a 90 % Influence of temperature Operating margin : -10 a +50 ºC Maximum error (-10 to +50ºC): 0,5 dB Power supply without batteries: -20 a +60 ºC Electromagnetic...

Open the catalog to page 7
Triaxial Vibrometer - 8

Villar, 20 - 08041 Barcelona (Spain) - Tel. (34) 934.335.240 - Fax. (34) 933.479.310 - e-mail: info@cesva.com - www.cesva.com VC431 Cesva Capture Studio & Capture Studio Editor 8 Cesva Capture Studio The following operations can be carried out with the CESVA Capture Studio software supplied with the VC431: • Download the registers stored in the memory of the VC431. • Display the registers of the measurement. • Recalculate all the parameters referring to a different exposure time tp. • Export data and graphs to create the personalised acoustic report (totally compatible with the Windows®...
