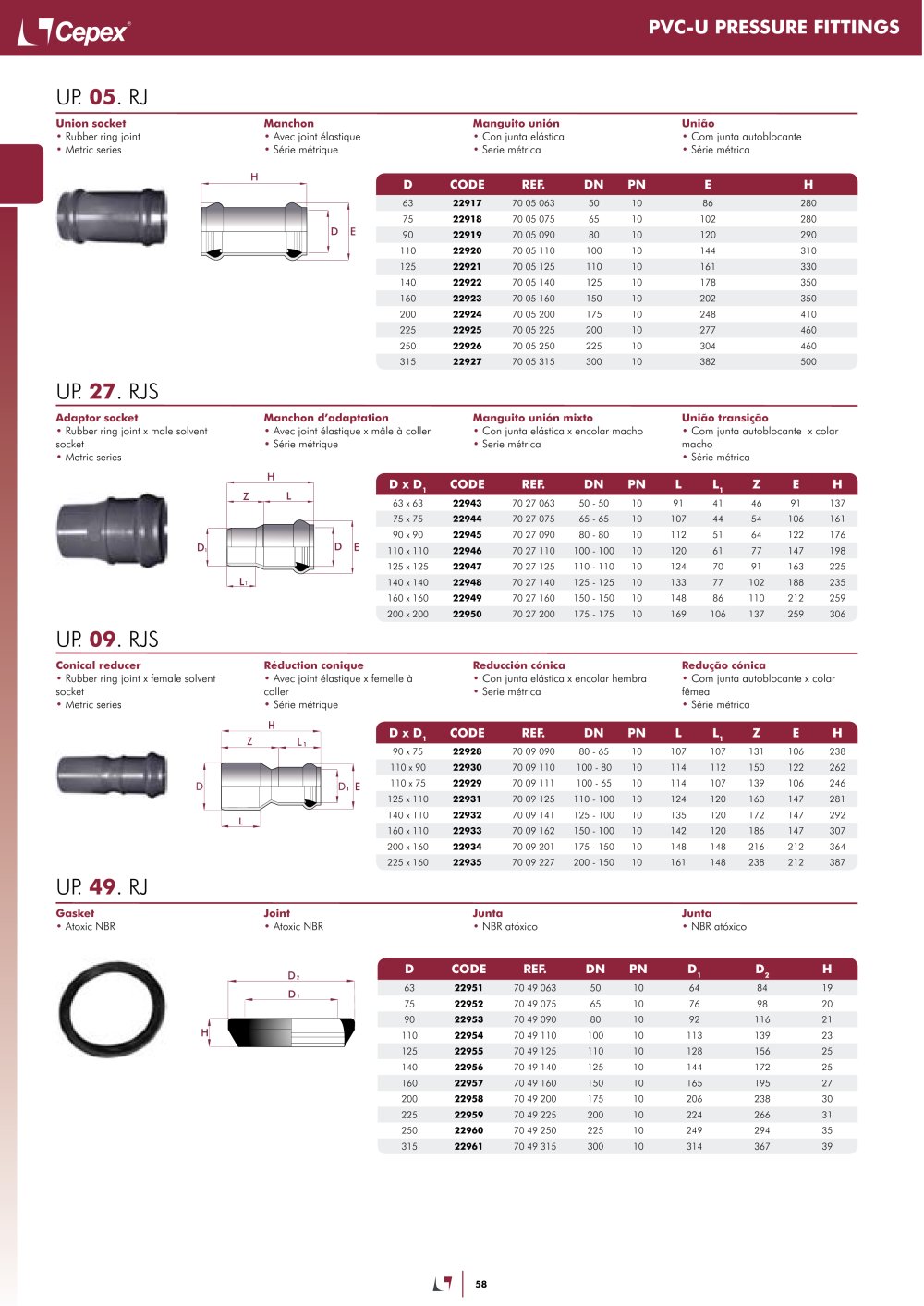

PVC-U PRESSURE FITTINGS
UP 05. RJ
Union socket
• Rubber ring joint ■ Metric series
Manchon
• Avec joint élastique
• Série métrique
Manguito unión
• Con junta elástica
• Serie métrica
Uniâo
• Com junta autoblocante
• Série métrica
D
CODE
REF.
DN
PN
E
H
63
22917
70 05 063
50
10
86
280
75
22918
70 05 075
65
10
102
280
90
22919
70 05 090
80
10
120
290
110
22920
70 05 110
100
10
144
310
125
22921
70 05 125
110
10
161
330
140
22922
70 05 140
125
10
178
350
160
22923
70 05 160
150
10
202
350
200
22924
70 05 200
175
10
248
410
225
22925
70 05 225
200
10
277
460
250
22926
70 05 250
225
10
304
460
315
22927
70 05 315
300
10
382
500
UP 27. RJS
Adaptor socket
• Rubber ring joint x male solvent socket
• Metric series
Manchon d'adaptation
• Avec joint élastique x mâle à coller
• Série métrique
Manguito unión mixto
• Con junta elástica x encolar macho
• Serie métrica
Uniâo transiçâo
• Com junta autoblocante x colar macho
• Série métrica
D x D1
CODE
REF-
PN
63 x 63
22943
70 27 063
50
50
10
91
41
46
91
137
75 x 75
22944
70 27 075
65
65
10
107
44
54
106
161
90 x 90
22945
70 27 090
80
80
10
112
51
64
122
176
110 x 110
22946
70 27 110
100
100
10
120
61
77
147
198
125 x 125
22947
70 27 125
110
110
10
124
70
91
163
225
140 x 140
22948
70 27 140
125
125
10
133
77
102
188
235
160 x 160
22949
70 27 160
150
150
10
148
86
110
212
259
200 x 200
22950
70 27 200
175
175
10
169
106
137
259
306
UP 09. RJS
Conical reducer
• Rubber ring joint x female solvent socket
• Metric series
Réduction conique
• Avec joint élastique x femelle à coller
Reducción cónica
• Con junta elástica x encolar hembra
• Serie métrica
Reduçâo cónica
• Com junta autoblocante x colar fêmea
Série métrica
D x D1
CODE
REF.
DN
PN
L
L1
ZE H
90 x 75
22928
70 09 090
80
65
10
107
107
131
106
238
110 x 90
22930
70 09 110
100
- 80
10
114
112
150
122
262
110 x 75
22929
70 09 111
100
- 65
10
114
107
139
106
246
125 x 110
22931
70 09 125
110
100
10
124
120
160
147
281
140 x 110
22932
70 09 141
125
100
10
135
120
172
147
292
160 x 110
22933
70 09 162
150
100
10
142
120
186
147
307
200 x 160
22934
70 09 201
175
150
10
148
148
216
212
364
225 x 160
22935
70 09 227
200
150
10
161
148
238
212
387
• Série métrique
H
UP 49. RJ
Gasket
• Atoxic NBR
Joint
• Atoxic NBR
Junta
• NBR atóxico
Junta
• NBR atóxico
D
CODE
REF.
DN
PN
D1
D2
H
63
22951
70 49 063
50
10
64
84
19
75
22952
70 49 075
65
10
76
98
20
90
22953
70 49 090
80
10
92
116
21
110
22954
70 49 110
100
10
113
139
23
125
22955
70 49 125
110
10
128
156
25
140
22956
70 49 140
125
10
144
172
25
160
22957
70 49 160
150
10
165
195
27
200
22958
70 49 200
175
10
206
238
30
225
22959
70 49 225
200
10
224
266
31
250
22960
70 49 250
225
10
249
294
35
315
22961
70 49 315
300
10
314
367
39
