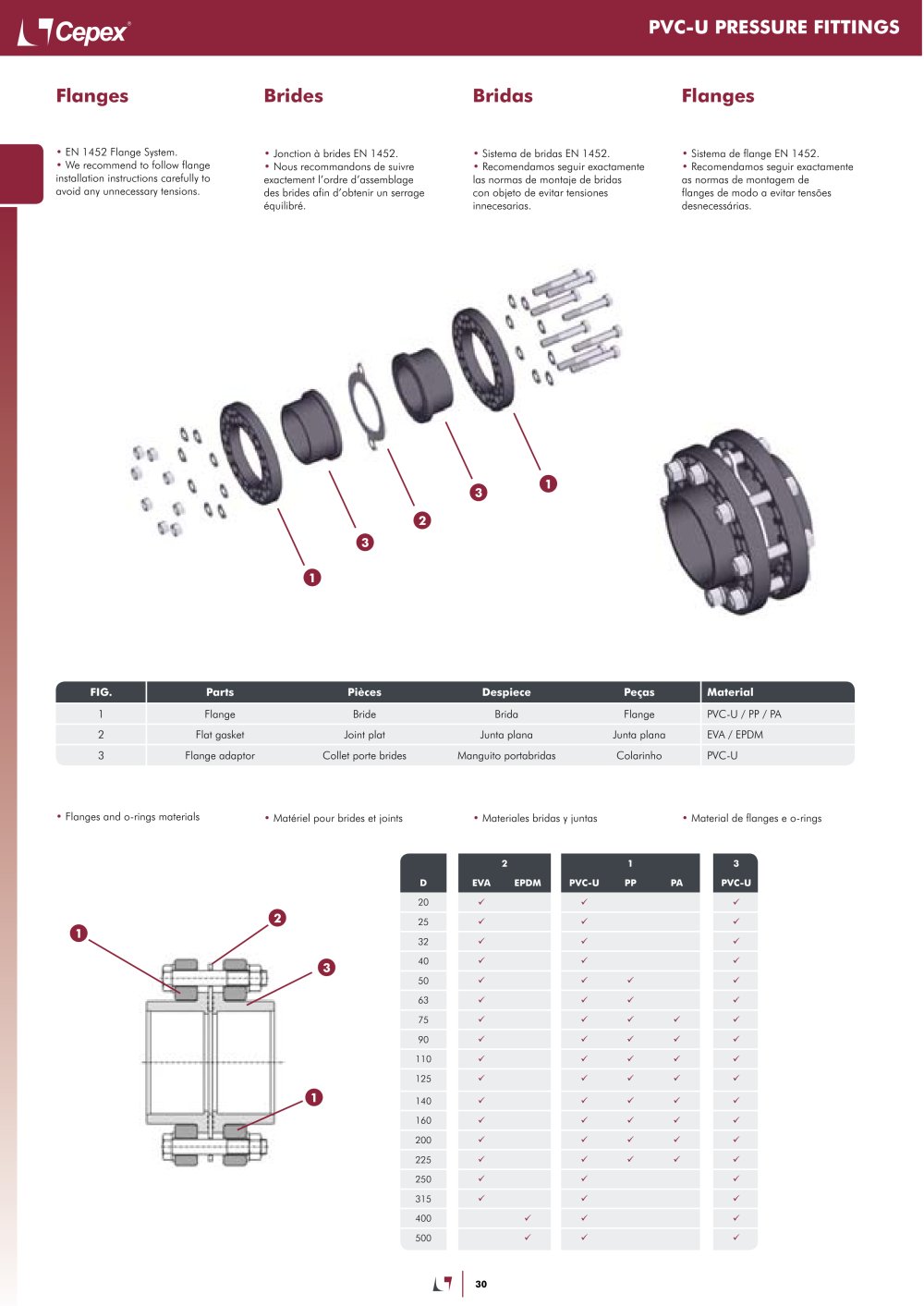

PVC-U PRESSURE FITTINGS
Flanges
Brides
Bridas
Flanges
• EN 1452 Flange System.
• We recommend to follow flange installation instructions carefully to avoid any unnecessary tensions.
• Jonction à brides EN 1452.
• Nous recommandons de suivre exactement l'ordre d'assemblage des brides afin d'obtenir un serrage équilibré.
• Sistema de bridas EN 1452.
• Recomendamos seguir exactamente las normas de montaje de bridas con objeto de evitar tensiones innecesarias.
• Sistema de flange EN 1452.
• Recomendamos seguir exactamente as normas de montagem de flanges de modo a evitar tensóes desnecessárias.
Despiece
Material
Pièces
G.
Parts
Peças
Flange Flat gasket Flange adaptor
Bride Joint plat Collet porte brides
Brida
Junta plana Manguito portabridas
Flange
Junta plana
Colarinho
PVC-U / PP / PA EVA / EPDM PVC-U
Flanges and o-rings materials
Matériel pour brides et joints
' Materiales bridas y juntas
Material de flanges e o-rings
2
1
1
■ 3
EVA
EPDM
1 PVC-U
PP
PA
PVC-U
