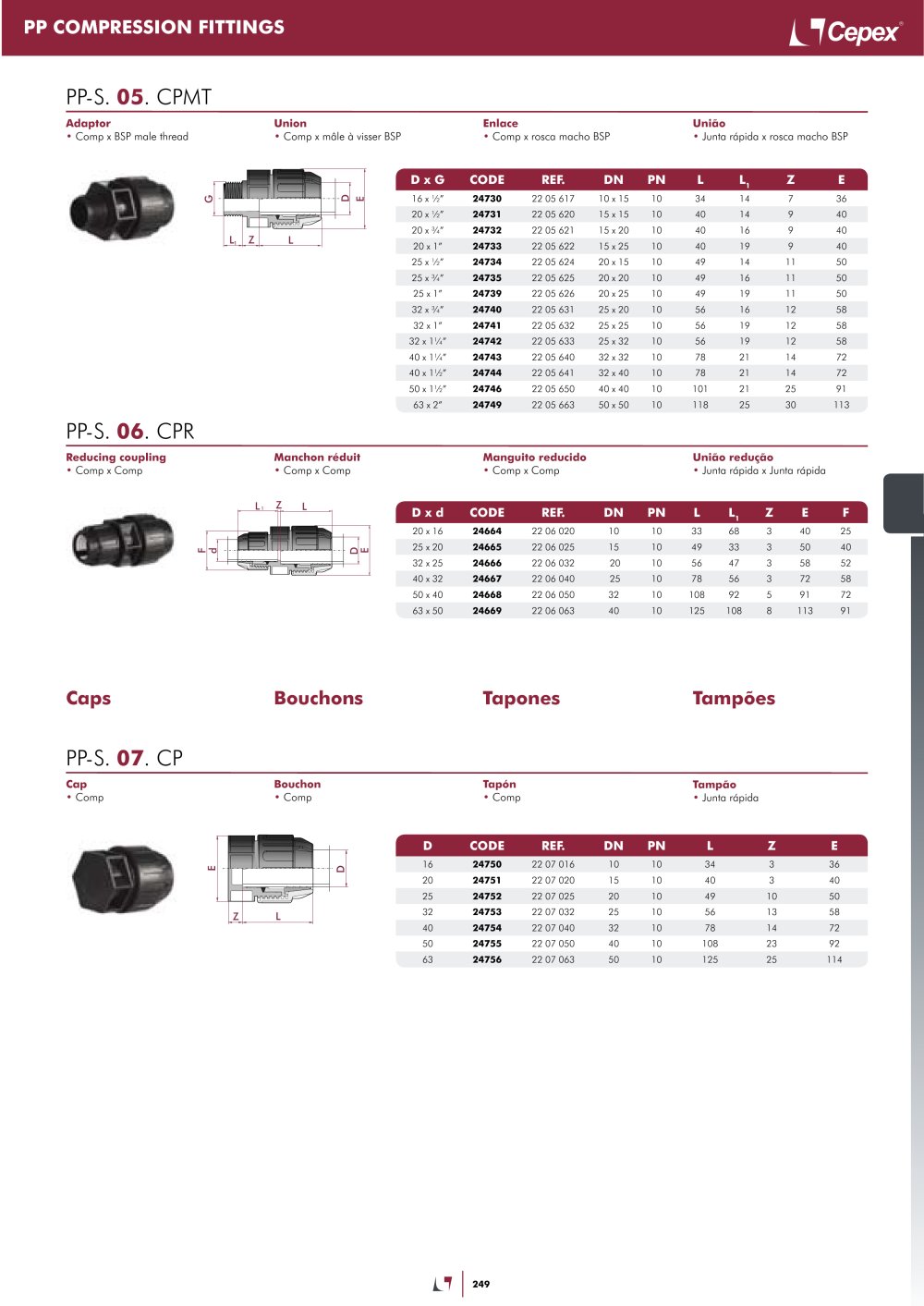

PP COMPRESSION FITTINGS

PP-S. 05. CPMT

Adaptor

• Comp x BSP male thread


		Enlace • Comp	x rosca macho BSP			Uniâo • Junta rápida x		rosca	macho BSP
	D x G	CODE		DN	PN		Tm
	16 x V4"	24730	22 05 617	10 x 15	10	34	14	7	36
	20 x V4"	24731	22 05 620	15 x 15	10	40	14	9	40
	20 x %"	24732	22 05 621	15 x 20	10	40	16	9	40
	20 x 1"	24733	22 05 622	15 x 25	10	40	19	9	40
	25 x V4"	24734	22 05 624	20 x 15	10	49	14	11	50
	25 x %"	24735	22 05 625	20 x 20	10	49	16	11	50
	25 x 1"	24739	22 05 626	20 x 25	10	49	19	11	50
		24740	22 05 631	25 x 20	10	56	16	12	58
	32 x 1"	24741	22 05 632	25 x 25	10	56	19	12	58
	32 x 1%"	24742	22 05 633	25 x 32	10	56	19	12	58
	40 x 1%"	24743	22 05 640	32 x 32	10	78	21	14	72
	40 x 1V4"	24744	22 05 641	32 x 40	10	78	21	14	72
	50 x 1V4"	24746	22 05 650	40 x 40	10	101	21	25	91
	63 x 2"	24749	22 05 663	50 x 50	10	118	25	30	113

Union

• Comp x mâle à visser BSP

PP-S. 06. CPR

Reducing coupling

• Comp x Comp

Manchon réduit

• Comp x Comp

Manguito reducido

• Comp x Comp

Uniäo redundo

• Junta rápida x Junta rápida


	D x d	CODE	REF.	DN	PN	L	^Li	Z
	20 x 16	24664	22 06 020	10	10	33	68	3	40	25
	25 x 20	24665	22 06 025	15	10	49	33	3	50	40
	32 x 25	24666	22 06 032	20	10	56	47	3	58	52
	40 x 32	24667	22 06 040	25	10	78	56	3	72	58
	50 x 40	24668	22 06 050	32	10	108	92	5	91	72
	63 x 50	24669	22 06 063	40	10	125	108	8	113	91



	r	r			-
	J,	=	_

Caps Bouchons Tapones Tampöes

PP-S. 07. CP

Cap Bouchon Tapón Tampäo

• Comp • Comp • Comp • Junta rápida


	^D	CODE	REF.	DN	PN	L	Z	E
	16	24750	22 07 016	10	10	34	3	36
	20	2475i	22 07 020	15	10	40	3	40
	25	24752	22 07 025	20	10	49	10	50
	32	24753	22 07 032	25	10	56	13	58
	40	24754	22 07 040	32	10	78	14	72
	50	24755	22 07 050	40	10	108	23	92
	63	24756	22 07 063	50	10	125	25	114
