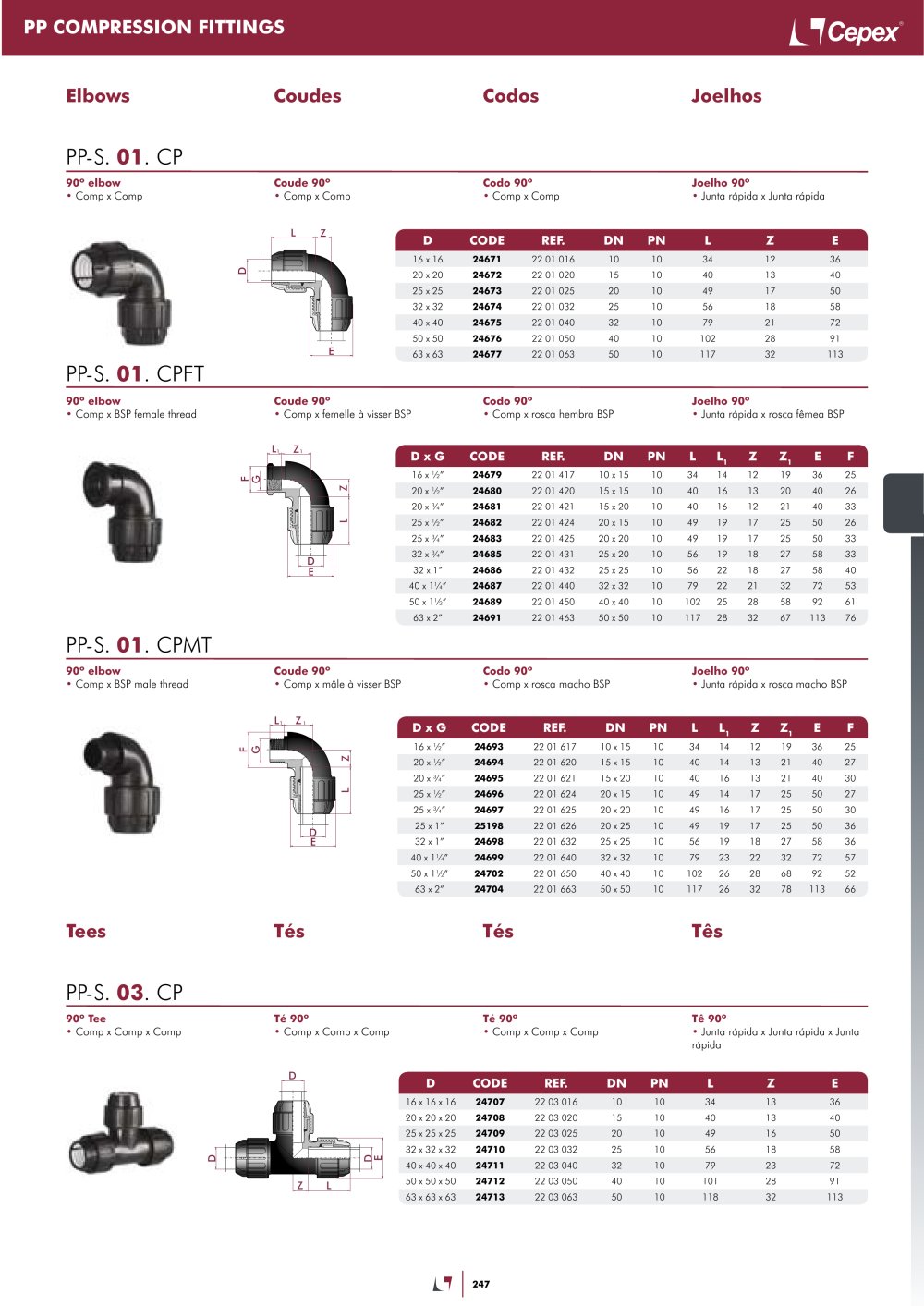

PP COMPRESSION FITTINGS
Elbows Coudes Codos Joelhos
PP-S. 01. CP
90° elbow
• Comp x Comp
Coude 90°
• Comp x Comp
Codo 90°
• Comp x Comp
Joelho 90°
• Junta rápida x Junta rápida
D
CODE
REF.
DN
PN
L
Z
E
16 x 16
24671
22 01 016
10
10
34
12
36
20 x 20
24672
22 01 020
15
10
40
13
40
25 x 25
24673
22 01 025
20
10
49
17
50
32 x 32
24674
22 01 032
25
10
56
18
58
40 x 40
24675
22 01 040
32
10
79
21
72
50 x 50
24676
22 01 050
40
10
102
28
91
63 x 63
24677
22 01 063
50
10
117
32
113
PP-S. 01. CPFT
90° elbow
• Comp x BSP female thread
Coude 90°
• Comp x femelle à visser BSP
Codo 90°
• Comp x rosca hembra BSP
Joelho 90°
• Junta rápida x rosca fêmea BSP
D x G
CODE
REF.
DN
PN
L
Z
Z1
E
16 x V4"
24679
22 01 417
10 x 15
10
34
14
12
19
36
25
20 x V4"
24680
22 01 420
15 x 15
10
40
16
13
20
40
26
20 x %"
24681
22 01 421
15 x 20
10
40
16
12
21
40
33
25 x V4"
24682
22 01 424
20 x 15
10
49
19
17
25
50
26
25 x %"
24683
22 01 425
20 x 20
10
49
19
17
25
50
33
32
24685
22 01 431
25 x 20
10
56
19
18
27
58
33
32
24686
22 01 432
25 x 25
10
56
22
18
27
58
40
40 x 1%"
24687
22 01 440
32 x 32
10
79
22
21
32
72
53
50 x 1V4"
24689
22 01 450
40 x 40
10
102
25
28
58
92
61
63 x 2"
24691
22 01 463
50 x 50
10
117
28
32
67
113
76
• Comp
x rosca macho BSP
Joelho 90°
• Junta rápida x
rosca
macho BSP
D x G
CODE
REF.
DN
PN
L
L1
Z
Z1
EF
16 x V4"
24693
22 01 617
10 x 15
10
34
14
12
19
36
25
20 x V4"
24694
22 01 620
15 x 15
10
40
14
13
21
40
27
20 x %"
24695
22 01 621
15 x 20
10
40
16
13
21
40
30
25 x V4"
24696
22 01 624
20 x 15
10
49
14
17
25
50
27
25 x %"
24697
22 01 625
20 x 20
10
49
16
17
25
50
30
25 x 1"
25198
22 01 626
20 x 25
10
49
19
17
25
50
36
32
24698
22 01 632
25 x 25
10
56
19
18
27
58
36
40 x 1%"
24699
22 01 640
32 x 32
10
79
23
22
32
72
57
50 x 1V4"
24702
22 01 650
40 x 40
10
102
26
28
68
92
52
63 x 2"
24704
22 01 663
50 x 50
10
117
26
32
78
113
66
PP-S. 01. CPMT
90° elbow
• Comp x BSP male thread
Coude 90°
• Comp x mâle à visser BSP
Tés
Tés
Tês
Tees
PP-S. 03. CP
Té 90°
• Comp x
Comp x Comp
Tê 90°
• Junta rápida rápida
x Junta rápida
x Junta
D
CODE
REF.
DN
PN
L
Z
E
16 x 16 x 16
24707
22 03 016
10
10
34
13
36
20 x 20 x 20
24708
22 03 020
15
10
40
13
40
25 x 25 x 25
24709
22 03 025
20
10
49
16
50
32 x 32 x 32
24710
22 03 032
25
10
56
18
58
40 x 40 x 40
24711
22 03 040
32
10
79
23
72
50 x 50 x 50
24712
22 03 050
40
10
101
28
91
63 x 63 x 63
24713
22 03 063
50
10
118
32
113
90° Tee
