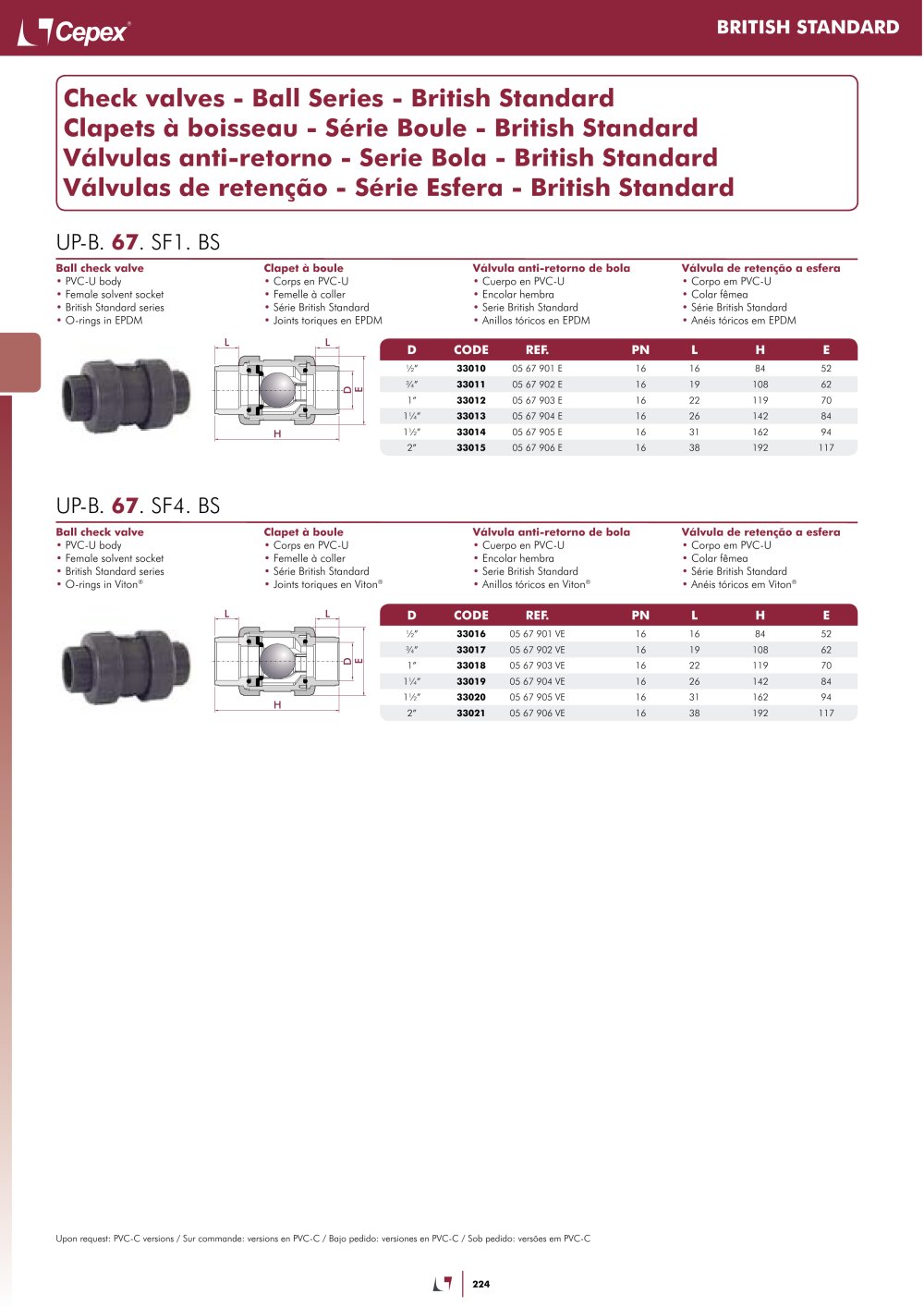

| | | BRITISH STANDARD | | |
| | | |
| | | Flap valves - Bail Series - British Standard Clapets à boisseau - Série Boule - British Standard Válvulas anti-retorno - Serie Bola - British Standard Válvulas de retençâo - Série Esfera - British Standard | | |
| | | |
| | | UP-B. 67. SF1. BS • PVC-U body • Female solvent socket • British Standard series • O-rings in EPDM | | |
| | | Clapet à boule Corps en PVC-U • Femelle à coller • Série British Standard | | Válvula anti-retorno de bola • Cuerpo en PVC-U • Encolar hembra • Serie British Standard | | Válvula de retençâo a esfera • Corpo em PVC-U • Colar fêmea • Série British Standard | | |
| | | |
| | | | | | | | | | | | | | | A | • Anillos tóricos en EPDM | | • Anéis tóricos | em EPDM | | | | | D | CODE | REF. | PN | L | H | E | | | | | 33010 | 05 67 901 E | 16 | 16 | 84 | 52 | | | | %" | 33011 | 05 67 902 E | 16 | 19 | 108 | 62 | | | | 1" | 33012 | 05 67 903 E | 16 | 22 | 119 | 70 | | | | I1//' | 33013 | 05 67 904 E | 16 | 26 | 142 | 84 | | | | 1V4" | 33014 | 05 67 905 E | 16 | 31 | 162 | 94 | | | | 2" | 33015 | 05 67 906 E | 16 | 38 | 192 | 117 | | | | | | | | | | | | | | |
| | | |
| | | |
| | | UP-B. 67. SF4. BS | | |
| | | |
| | | • PVC-U body • Female solvent socket • British Standard series • O-rings in Viton® | | Clapet à boule • Corps en PVC-U • Femelle à coller • Série British Standard • Joints toriques en Viton® | | álvula anti-retorno de bola Cuerpo en PVC-U Encolar hembra Serie British Standard Anillos tóricos en Viton® | | Válvula de retençâo a esfera • Corpo em PVC-U • Colar fêmea • Série British Standard • Anéis tóricos em Viton® | | |
| | | |
| | | |
| | | | | | | | | | | | | | | D | CODE | REF. | PN | L | H | E | | | | | 33016 | 05 67 901 VE | 16 | 16 | 84 | 52 | | | | %" | 33017 | 05 67 902 VE | 16 | 19 | 108 | 62 | | | | 1" | 33018 | 05 67 903 VE | 16 | 22 | 119 | 70 | | | | 1/" | 33019 | 05 67 904 VE | 16 | 26 | 142 | 84 | | | | | 33020 | 05 67 905 VE | 16 | 31 | 162 | 94 | | | | 2" | 33021 | 05 67 906 VE | 16 | 38 | 192 | 117 | | | | | | | | | | | | | | |
| | | | | | | | | | | | | | r | | - | | | | | s | - ' | i | | | | | | | | | | LU | | | | | | Li | | | | | | —1 | e | i | | | | | | | H | | | | | | | | | | | | | | |
| | | m | | |
| | | |
| | | |
| | | |
| | | Upon request: PVC-C versions / Sur commande: versions en PVC-C / Bajo pedido: versiones en PVC-C / Sob pedido: versóes em PVC-C | | |
| | | |
