LlCepex
BRITISH STANDARD

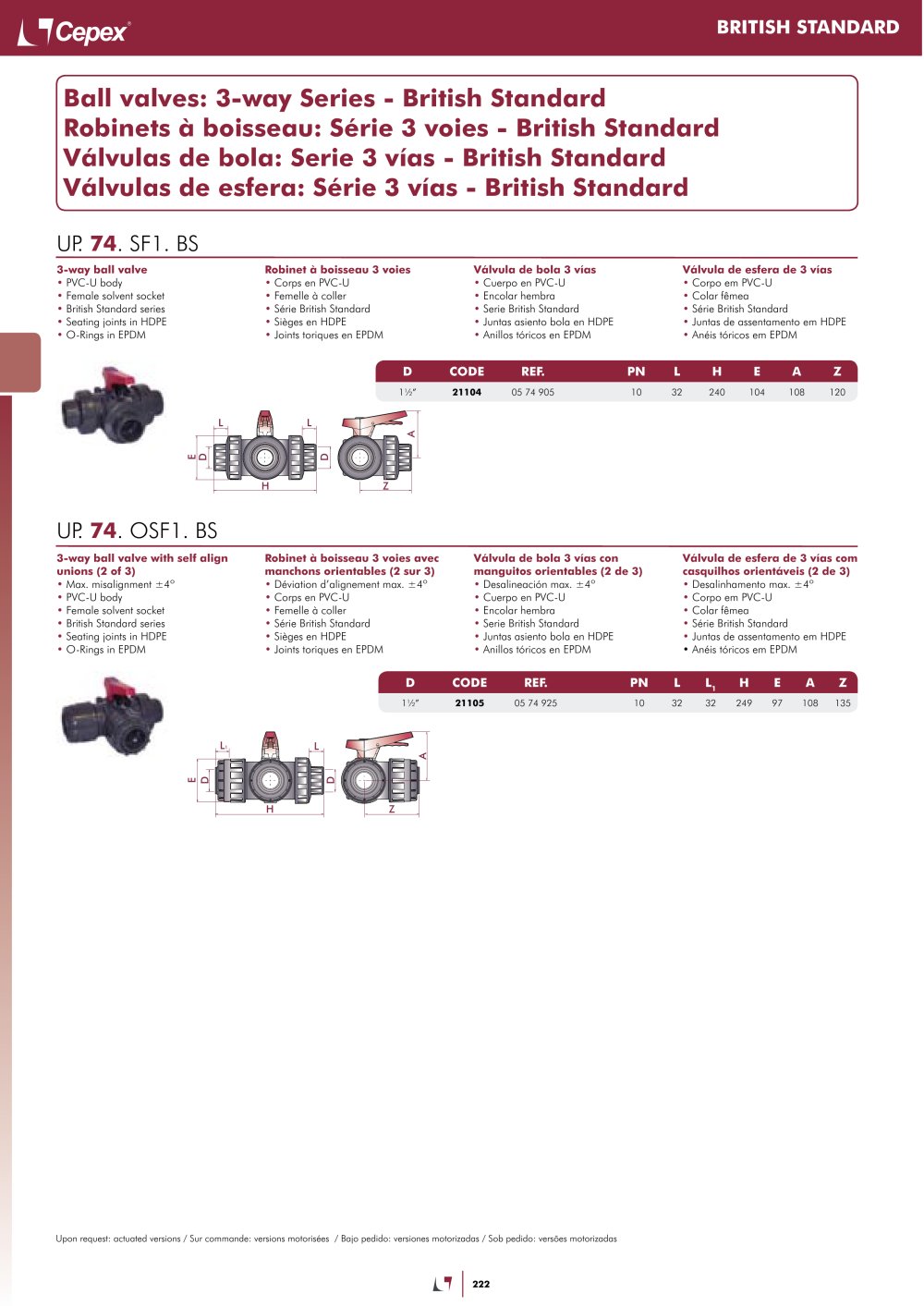

Manufacturer of ball valves: 3-way Series - British Standard Robinets à boisseau: Série 3 voies - British Standard
Válvulas de bola: Serie 3 vías - British Standard Válvulas de esfera: Série 3 vías - British Standard
UFP 74. SF1. BS
3-way ball industrial valve
• PVC-U body
• Female solvent socket
• British Standard series
• Seating joints in HDPE
• O-Rings in EPDM
Robinet à boisseau 3 voies
• Corps en PVC-U
• Femelle à coller
• Série British Standard
• Sièges en HDPE
• Joints toriques en EPDM
Válvula de bola 3 vías
• Cuerpo en PVC-U
• Encolar hembra
• Serie British Standard
• Juntas asiento bola en HDPE
• Anillos tóricos en EPDM
Válvula de esfera de 3 vías
• Corpo em PVC-U
• Colar fêmea
• Série British Standard
• Juntas de assentamento em HDPE
• Anéis tóricos em EPDM
D I
1W"
I L
32
CODE
REF
PN
H
A
108
Z
120
21104
05 74 905
10
240
104
UFP 74. OSF1. BS
3-way ball valve with self align unions (2 of 3)
• Max. misalignment ±4°
• PVC-U body
• Female solvent socket
• British Standard series
• Seating joints in HDPE
• O-Rings in EPDM
Robinet à boisseau 3 voies avec manchons orientables (2 sur 3)
• Déviation d'alignement max. ±4°
• Corps en PVC-U
• Femelle à coller
• Série British Standard
• Sièges en HDPE
• Joints toriques en EPDM
Válvula de bola 3 vías con manguitos orientables (2 de 3)
• Desalineación max. ±4°
• Cuerpo en PVC-U
• Encolar hembra
• Serie British Standard
• Juntas asiento bola en HDPE
• Anillos tóricos en EPDM
Válvula de esfera de 3 vías com casquilhos orientáveis (2 de 3)
• Desalinhamento max. ±4°
• Corpo em PVC-U
• Colar fêmea
• Série British Standard
• Juntas de assentamento em HDPE
• Anéis tóricos em EPDM
D
CODE
PN
L
L
HE A Z
REF.
05 74 925
10
32
32
249
97
108 135
1 w"
21105
Upon request: actuated versions / Sur commande: versions motorisées / Bajo pedido: versiones motorizadas / Sob pedido: versoes motorizadas
222
