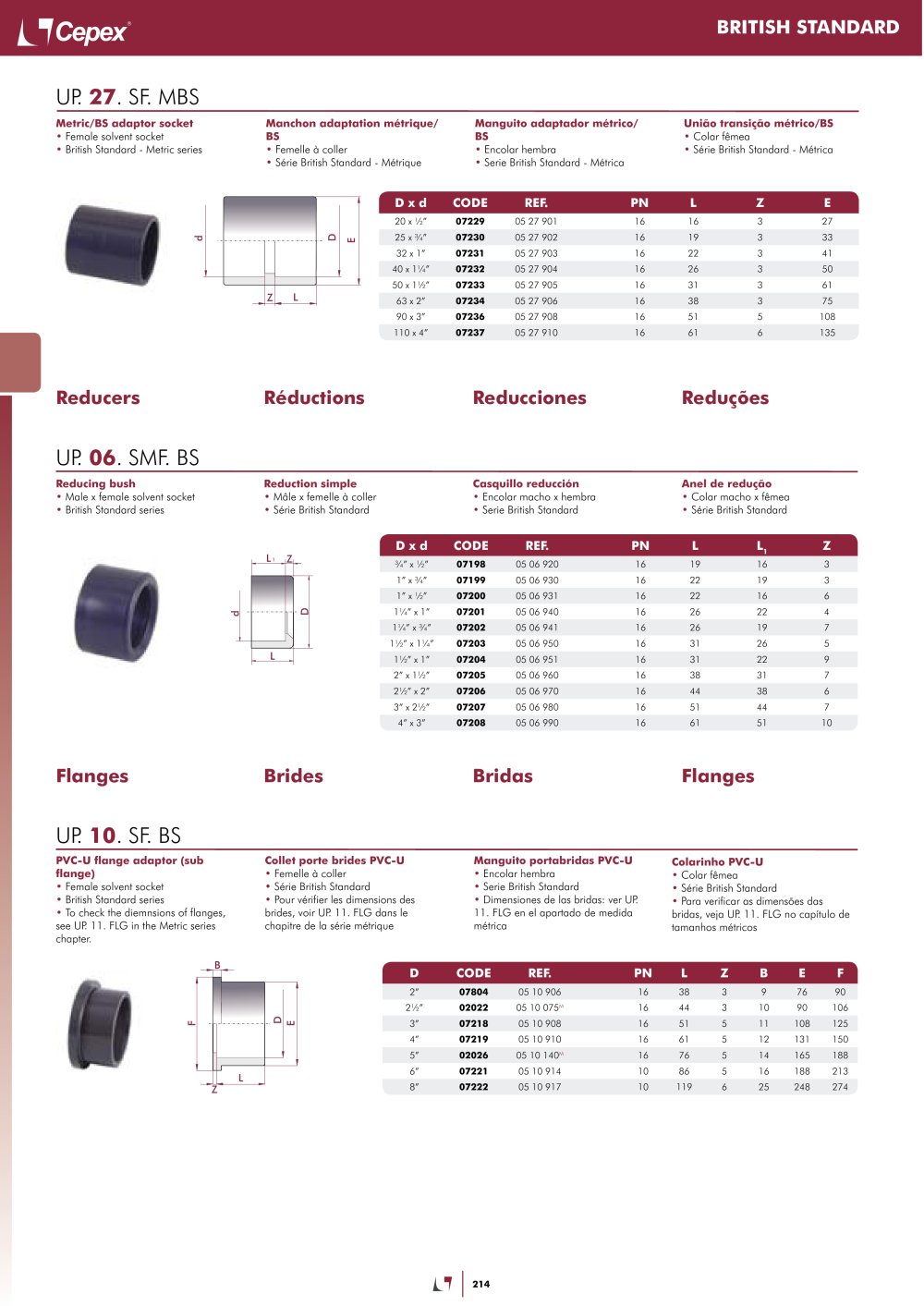

| | | BRITISH STANDARD | | |
| | | |
| | | UFÎ 27. SF. MBS | | |
| | | |
| | | Metric/BS adaptor socket • Female solvent socket • British Standard - Metric series | | Manchon adaptation métrique/ BS • Femelle à coller • Série British Standard - Métrique | | Manguito adaptador métrico/ BS • Encolar hembra • Serie British Standard - Métrica | | Uniáo transiçâo métrico/BS • Colar fêmea • Série British Standard - Métrica | | |
| | | | |
| | | |
| | | |
| | | | | | | | | | | | | | | D x d | CODE | REF. | PN | L | Z | E | | | | 20 x V4" | 07229 | 05 27 901 | 16 | 16 | 3 | 27 | | | | 25 x %" | 07230 | 05 27 902 | 16 | 19 | 3 | 33 | | | | 32 x 1" | 07231 | 05 27 903 | 16 | 22 | 3 | 41 | | | | 40 x 1%" | 07232 | 05 27 904 | 16 | 26 | 3 | 50 | | | | 50 x 1V4" | 07233 | 05 27 905 | 16 | 31 | 3 | 61 | | | | 63 x 2" | 07234 | 05 27 906 | 16 | 38 | 3 | 75 | | | | 90 x 3" | 07236 | 05 27 908 | 16 | 51 | 5 | 108 | | | | 110 x 4" | 07237 | 05 27 910 | 16 | 61 | 6 | 135 | | | | | | | | | | | | | | |
| | | |
| | | Reducers | | Réductions | | Reducciones | | Reduçôes | | |
| | | |
| | | |
| | | UP 06. SMF. BS | | |
| | | |
| | | Reducing bush • Male x female solvent socket • British Standard series | | Réduction simple • Mâle x femelle à coller • Série British Standard | | Casquillo reducción • Encolar macho x hembra • Serie British Standard | | Anel de reduçâo • Colar macho x fêmea • Série British Standard | | |
| | | |
| | | | | | | | | | | | | | | D x d | CODE | REF. | PN | L | L1 | Z | | | | %" x V4" | 07198 | 05 06 920 | 16 | 19 | 16 | 3 | | | | 1" x %" | 07199 | 05 06 930 | 16 | 22 | 19 | 3 | | | | 1" x V4" | 07200 | 05 06 931 | 16 | 22 | 16 | 6 | | | | 1%" x 1" | 07201 | 05 06 940 | 16 | 26 | 22 | 4 | | | | 1%" x %" | 07202 | 05 06 941 | 16 | 26 | 19 | 7 | | | | 1V4" x 1%" | 07203 | 05 06 950 | 16 | 31 | 26 | 5 | | | | 1V4" x 1" | 07204 | 05 06 951 | 16 | 31 | 22 | 9 | | | | 2" x 1V4" | 07205 | 05 06 960 | 16 | 38 | 31 | 7 | | | | 2V4"x2" | 07206 | 05 06 970 | 16 | 44 | 38 | 6 | | | | 3" x 2V4" | 07207 | 05 06 980 | 16 | 51 | 44 | 7 | | | | 4" x 3" | 07208 | 05 06 990 | 16 | 61 | 51 | 10 | | | | | | | | | | | | | | |
| | | |
| | | Flanges | | Brides | | Bridas | | Flanges | | |
| | | |
| | | |
| | | UP 10. SF. BS PVC-U flange adaptor (sub flange) • Female solvent socket • British Standard series • To check the diemnsions of flanges, see UP 11. FLG in the Metric series chapter. | | |
| | | Collet porte brides PVC-U • Femelle à coller • Série British Standard • Pour vérifier les dimensions des brides, voir UP 11. FLG dans le chapitre de la série métrique | | Manguito portabridas PVC-U • Encolar hembra • Serie British Standard • Dimensiones de las bridas: ver UP 11. FLG en el apartado de medida métrica | | |
| | | Colarinho PVC-U • Colar fémea • Série British Standard • Para verificar as dimensóes das bridas, veja UP 11. FLG no capítulo de tamanhos métricos | | |
| | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | D | CODE | REF. | PN | L | Z | B | E | F | | | | 2" | 07804 | 05 10 906 | 16 | 38 | 3 | 9 | 76 | 90 | | | | 2V4" | 02022 | 05 10 075M | 16 | 44 | 3 | 10 | 90 | 106 | | | | 3" | 07218 | 05 10 908 | 16 | 51 | 5 | 11 | 108 | 125 | | | | 4" | 07219 | 05 10 910 | 16 | 61 | 5 | 12 | 131 | 150 | | | | 5" | 02026 | 05 10 140M | 16 | 76 | 5 | 14 | 165 | 188 | | | | 6" | 07221 | 05 10 914 | 10 | 86 | 5 | 16 | 188 | 213 | | | | 8" | 07222 | 05 10 917 | 10 | 119 | 6 | 25 | 248 | 274 | | | | | | | | | | | | | | | | |
| | | |
| | | LI | | |
| | | 214 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
